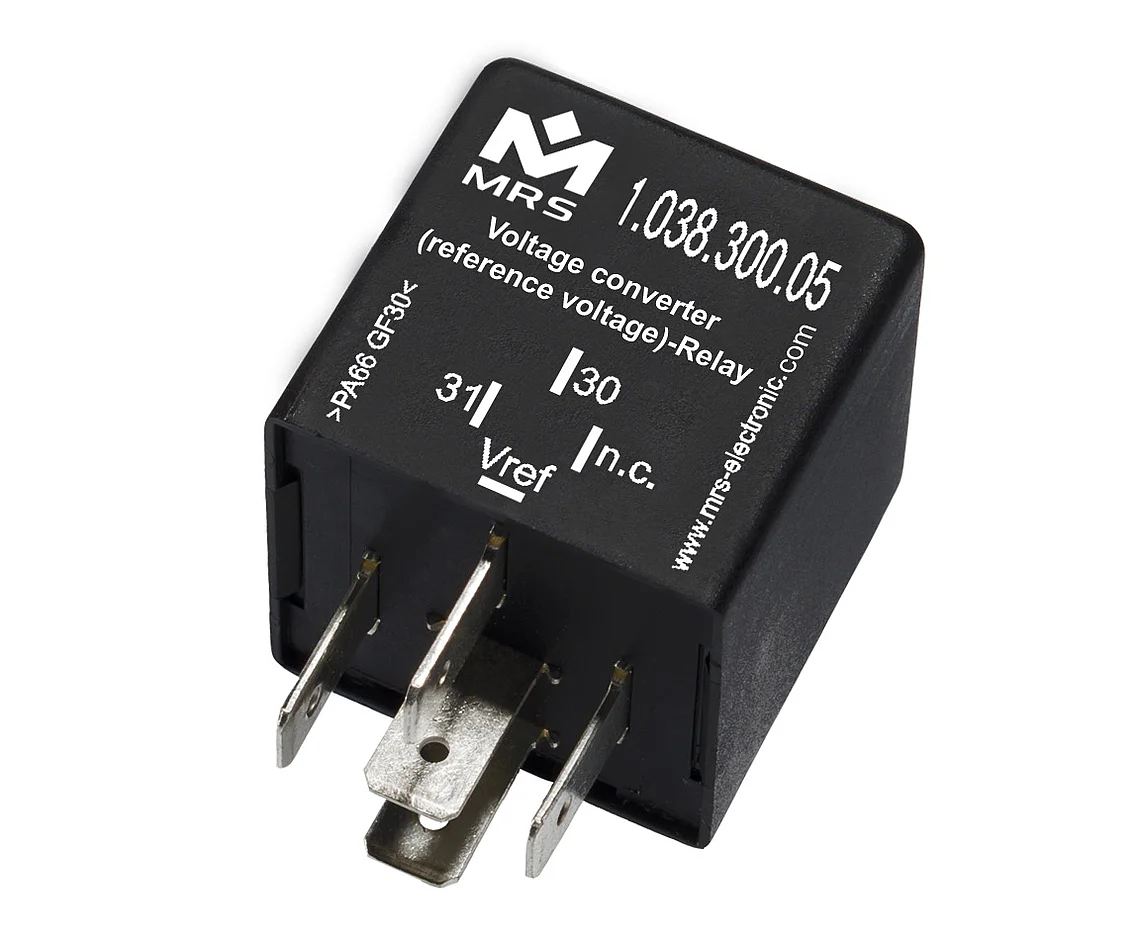

Voltage Converter (ref. V)-Relay

go to order options

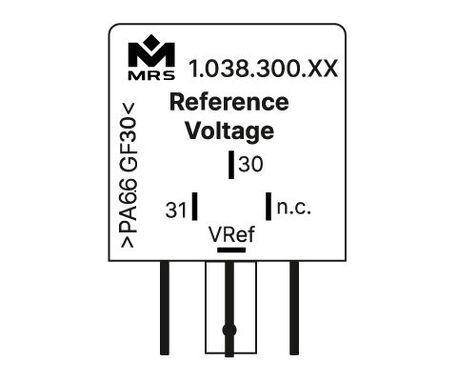

The voltage converter outputs a stabilised reference voltage (5V or 12V). This can be used to supply sensors. Because of the integrated regulator, the voltage converter can be used in a voltage range of 9-32V or 18-32V.

Downloads
Data sheet Voltage Converter (English) Data sheet Voltage Converter (German) Operating instruction Voltage Converter EU Declaration of Conformity
To our online shop
Technical details

Mechanical Properties

IP rating up to IP6K8
Housing material PA66GF30
Dimensions 30 × 30 × 30 mm

General Information

Temperature range -40 to +85°C

Markings

Order options
Order no.Name
1.038.300.05

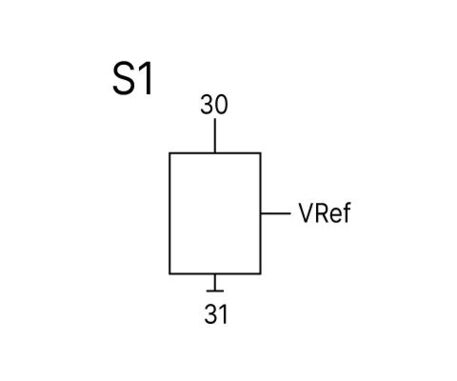

5V Type A, Connection S1
1.038.300.12
12V Type A, Connection S1
Accessories
Socket ST FL 9-Pin
1.017.002.00
+ go to order options
FASTON terminal latch 6.3 mm 1 mm²
102355
+ go to order options
FASTON terminal latch 6.3 mm 1.5 – 2.5 mm²
103064
+ go to order options
Socket package watertight 30 mm
1.017.010.30
+ go to order options
