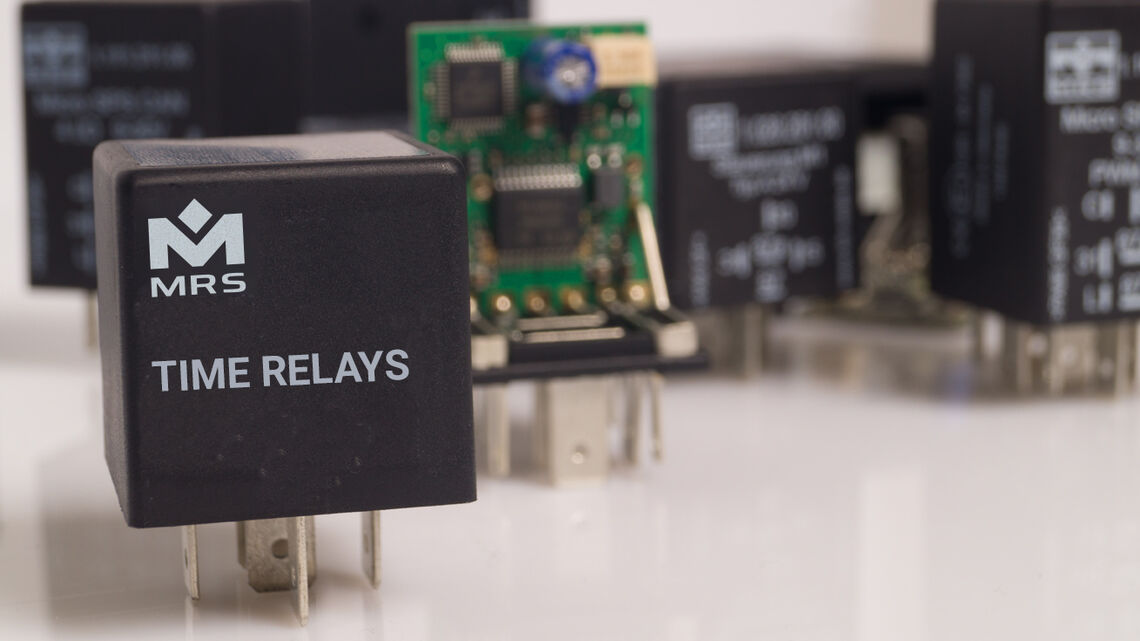

Time Relays

With our electronic time relays, you can switch connected consumer devices off or on after a predefined time has reached. Our time relays are available in different versions, sizes, and voltages. One product group even offers you the option of manually setting the on or off delay.

Time Relay M1 compact SW on Delay 12 V

Article number : 1.003.18x.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Quiescent current (12V): 1 mA
Switching current: 20 A
Switching cycles: 100000
IP rating: IP53

Time Relay M1 compact SW off Delay 12 V

Article number : 1.003.18y.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Quiescent current (12V): 1 mA
Switching current: 20 A
Switching cycles: 100000
IP rating: IP53

Time Relay M1 compact SW on/off Delay 12 V

Article number : 1.003.18z.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Quiescent current (12V): 1 mA
Switching current: 20 A
Switching cycles: 100000
IP rating: IP53

Time Relay M3 SW on Delay 12 V

Article number : 1.003.19x.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 20 A / NC 15 A
Switching cycles: 100000
IP rating: up to IP6K8

Time Relay M3 SW off Delay 12 V

Article number : 1.003.19y.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 20 A / NC 15 A
Switching cycles: 100000
IP rating: up to IP6K8

Time Relay SW on/off Delay 12 V

Article number : 1.003.19z.xx

Operating voltage: 9-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 15 A / NC 15 A
Switching cycles: 100000
IP rating: up to IP6K8

Time Relay M1 compact SW on Delay 24 V

Article number : 1.003.28x.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: 15 A NC / 15 A NO
Switching cycles: 100000
IP rating: IP53

Time Relay M1 compact SW off Delay 24 V

Article number : 1.003.28y.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: 15 A NC / 15 A NO
Switching cycles: 100000
IP rating: IP53

Time Relay M1 compact SW on/off Delay 24 V

Article number : 1.003.28z.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: 15 A NC / 15 A NO
Switching cycles: 100000
IP rating: IP53

Time Relay M3 SW on Delay 24 V

Article number : 1.003.29x.xx

Operating voltage: 14-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 15 A
Switching cycles: 100000
IP rating: up to IP6K8

Time Relay M3 SW off Delay 24 V

Article number : 1.003.29y.xx

Operating voltage: 14-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 15 A
Switching cycles: 100000
IP rating: up to IP6K8

Time Relay SW on/off Delay 24 V

Article number : 1.003.29z.xx

Operating voltage: 14-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NC 15 A / NO 15 A
Switching cycles: 100000
IP rating: up to IP6K8

Time Relay SW on Delay adjust 12 V

Article number : 1.022.11y.xx

Operating voltage: 10-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 15 A / NC 5 A
Switching cycles: 100000
IP rating: IP53

Time Relay SW off Delay adjust 12 V

Article number : 1.022.11z.xx

Operating voltage: 10-16 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 15 A / NC 5 A
Switching cycles: 100000
IP rating: IP53

Time Relay SW on Delay adjust 24 V

Article number : 1.022.21y.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 10 A / NC 5 A
Switching cycles: 50000
IP rating: IP53

Time Relay SW off Delay adjust 24 V

Article number : 1.022.21z.xx

Operating voltage: 16-32 V
Outputs (total): 1
Number of pins: 5
Relay outputs: 1
Switching current: NO 10 A / NC 5 A
Switching cycles: 50000
IP rating: IP53

Time Relay Compact 35 A

Article number : 1.070

Operating voltage: 6.5-32 V
Outputs (total): 1
Relay outputs: 1
Switching current: 70A
IP rating: IP53
