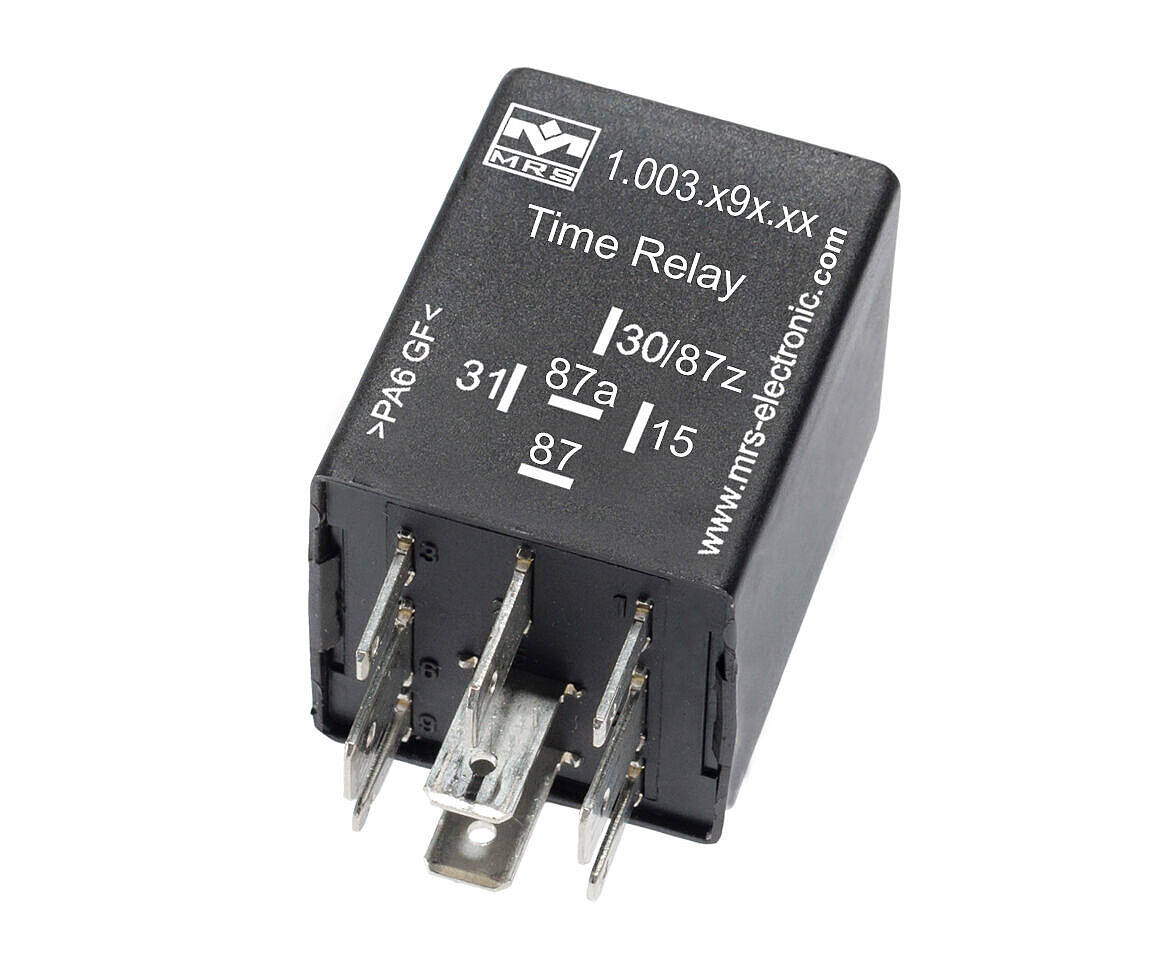

Time Relay SW on/off Delay 24 V (1.003.29z.xx)

Time Relay SW on/off Delay 24 V

Time relays with switch on and off delay can be used if consumers are to be switched on and off time-delayed. Please indicate the desired tightening and waste delay time when ordering. All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is set at Terminal 15, the relay will pull on at the end of the specified time. If the voltage is removed at Terminal 15, the relay falls off after the specified time has elapsed.

Circuit diagram S2: The contacts are separate from the control and can therefore be used in links. In this variant, the relay contact is completely potential-free and thus capable of switching alternating voltage. Circuit diagram S4: The relay does not consume a quiescent current by the diode circuitry after the drop. Housing forms can be found in the section housing and basic body.

Downloads

Data sheet Time Relay M3 (English) Data sheet Time Relay M3 (German) Operating instruction Time Relays EU Declaration of Conformity

Time Relay SW on/off 24 V

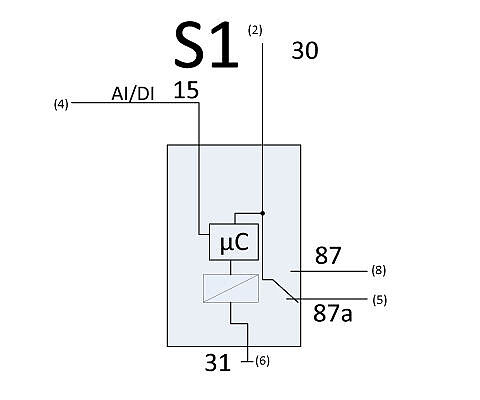

Connection diagram S1

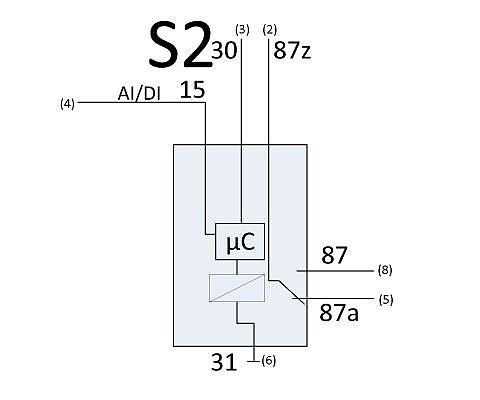

Connection diagram S2

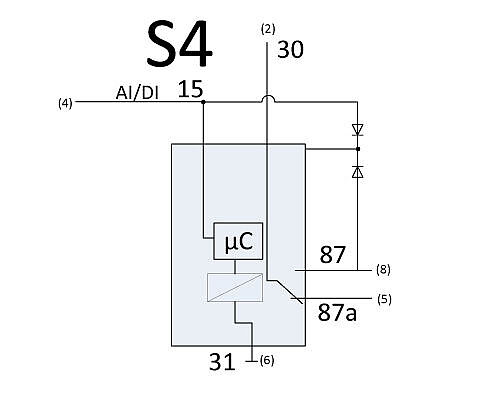

Connection diagram S4

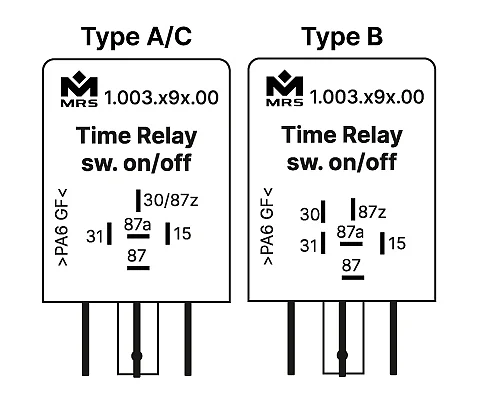

Design

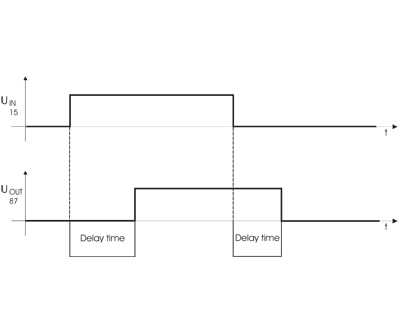

Ffunction diagram

To our online shop

Technical details

Inputs and Outputs

Number of pins	5
In-/Outputs (total)	2
Inputs (total)	1
Inputs (digital)	1
Outputs (total)	1
Relay outputs	1
Switching current	NC 15 A / NO 15 A

Mechanical Properties

IP rating	up to IP6K8
Housing material	PA66GF30
Dimensions	30 × 30 × 40 mm
Switching cycles	100000

Programming

Programming software	MRS Realizer

General Information

Temperature range	-40 to +85°C
Operating voltage	14-32 V
Current consumption	2 ± 1 mA

Markings

Order options

Order no.	Name
1.003.296.xx (1003296xx)	(Base M3), Individual delay time, Type A, Connection S1
1.003.297.xx (1003297xx)	(Base M3), Individual delay time, Type B, Connection S2
1.003.290.xx (1003290xx)	(Base Micro PLC), Individual delay time, Type C, Connection S4
