MicroPlex® Product Family

Intelligence in the smallest space

In the ever-evolving world of vehicle electronics, the demand for advanced, efficient and scalable systems is growing rapidly. With our MicroPlex® product family, we are responding to the challenge of integrating more functions and intelligence into vehicles without complicating systems or driving up costs. The compact CAN controllers impress with an unprecedented ratio of functionality and size.

Highest integration level worldwide

The patented MicroPlex® is our innovative contribution to more intelligent vehicle systems. It is one of the smallest CAN controllers with the highest integration level in the world and enables you to set up CAN bus-capable power distribution systems on the footprint of just two ISO 280 micro relays.

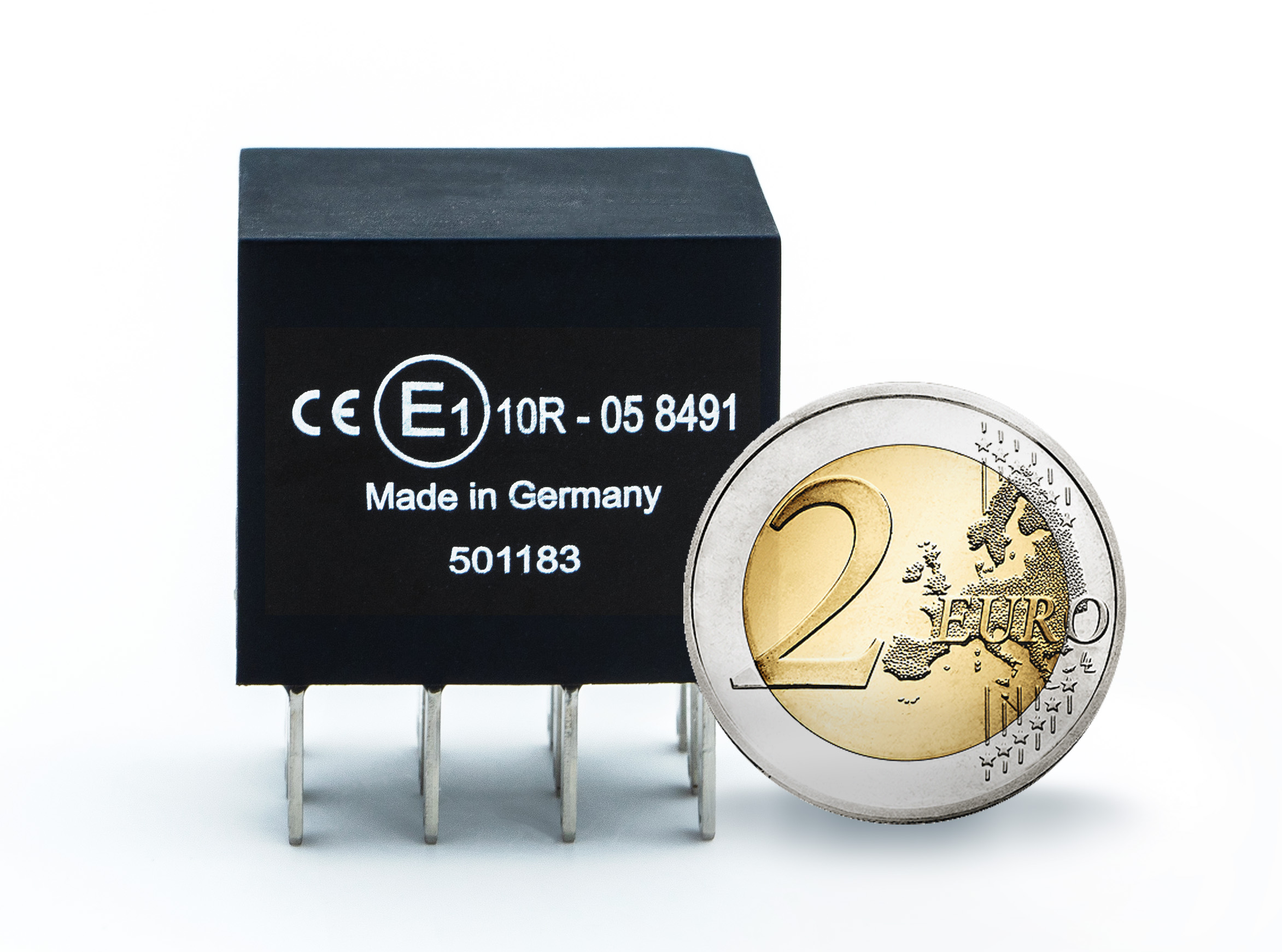

With a housing height that is just the diameter of a 2-euro coin, the MicroPlex® sets new standards in terms of functional density.

[Translate to English:] MicroPlex® Gehäusegröße

Your advantages of our MicroPlex® solutions

[Translate to English:] Einfache Integration und Skalierbarkeit

Ideal for applications with limited space

The compact format makes the MicroPlex® ideal for applications with limited space and allows you to develop sophisticated connected systems without wasting valuable space.

[Translate to English:] Geeignet für die Nachrüstung

Suitably dimensioned controllers

Meet the exact requirements of each subsystem and keep costs down with appropriately sized MicroPlex® controllers.

Easy integration into existing systems

Use MicroPlex® products for simple, flexible and cost-effective integration into existing systems and for retrofitting your existing vehicles.

Our MicroPlex® products for your applications

The MicroPlex® family includes several variants, each developed for specific requirements. By selecting the appropriate MicroPlex® variant, you can tailor the system to specific application needs and increase functionality while maintaining a compact and efficient design.

Our programming tools MRS Applics Studio and MRS Developers Studio allow you to quickly set up and deploy your system without the need for detailed programming knowledge.

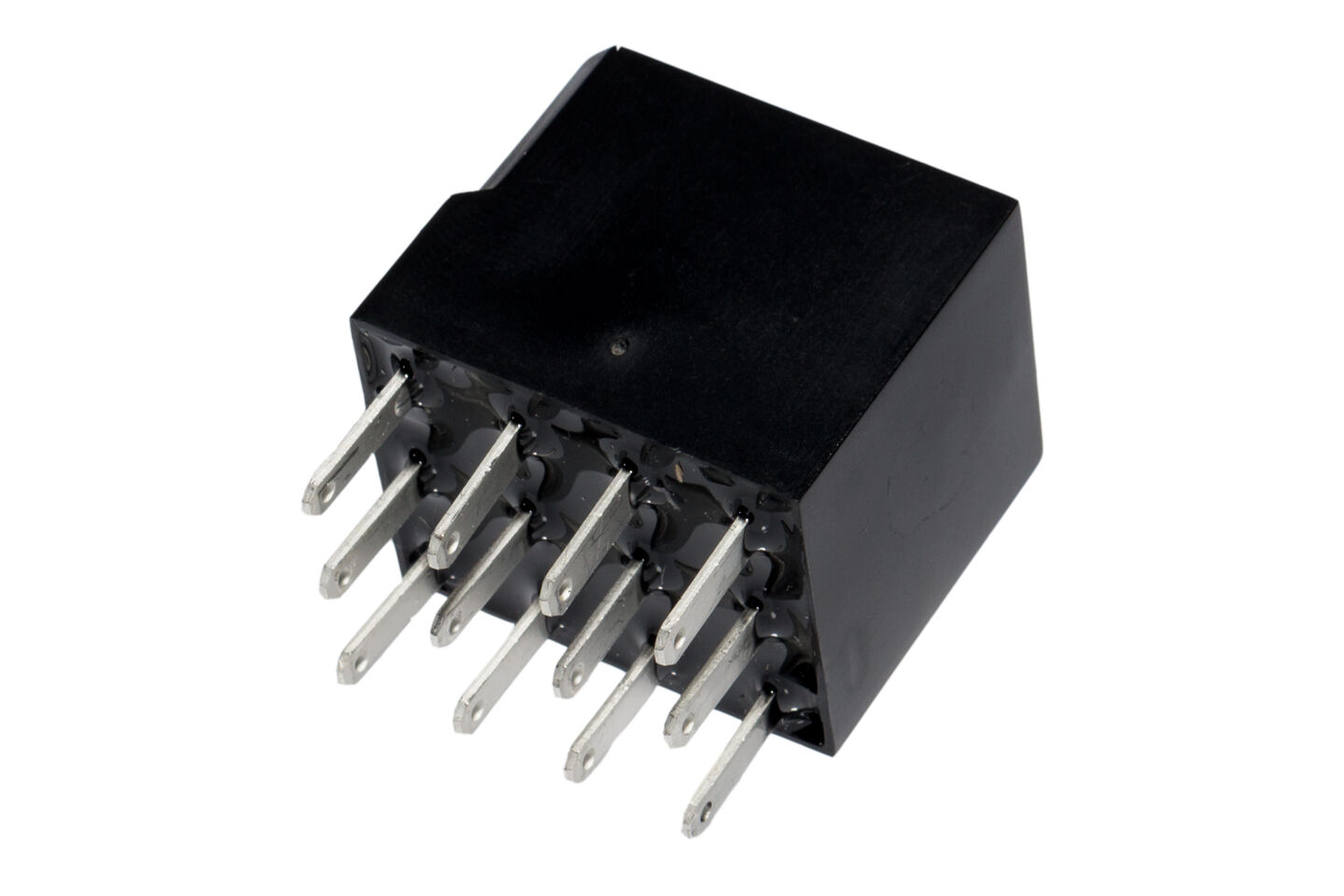

MicroPlex® 7H

MicroPlex® 7H

Article number: 1.133.300.00

Ideal for controlling several high-side loads such as lighting systems, actuators or valves.

Operating voltage:  9-32 V
CAN interface(s):  1
Outputs (total):  7 (High-side outputs)
IP rating:  up to IP6K8

MicroPlex® 7L

MicroPlex® 7L

Article number: 1.134.300.00

For low-side switching applications for controlling devices that require an earth potential for activation.

Operating voltage:  9-32 V
CAN interface(s):  1
Outputs (total):  7 (Low-side outputs)
IP rating:  up to IP6K8


MicroPlex® 7X

MicroPlex® 7X

Article number: 1.132.300.00

Suitable for systems that require both control and monitoring functions.

Operating voltage:  9-32 V
CAN interface(s):  1
In-/Outputs (total): 7
Multifunctional inputs (total):  3
I/Os (total):  4
IP rating:  up to IP6K8

MicroPlex® Gateway 3CAN LIN

MicroPlex® Gateway 3CAN LIN

Article number: 1.141.x

Enables data exchange between several CAN and a LIN network, as well as the implementation of cybersecurity requirements.

Operating voltage:  8-32 V
CAN interface(s):  3
LIN interface(s):  1
In-/Outputs (total):  2
IP rating:  up to IP6K8

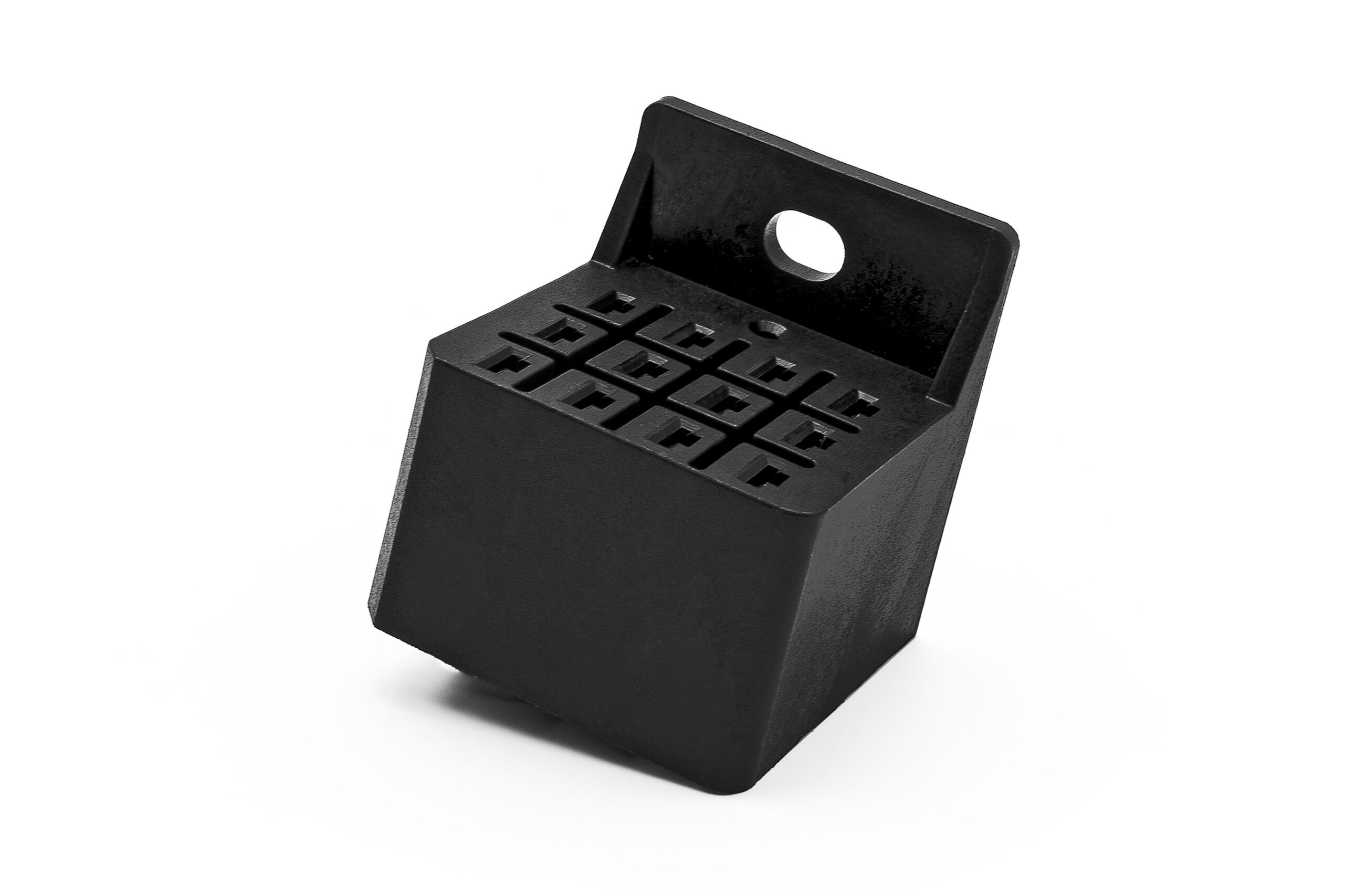

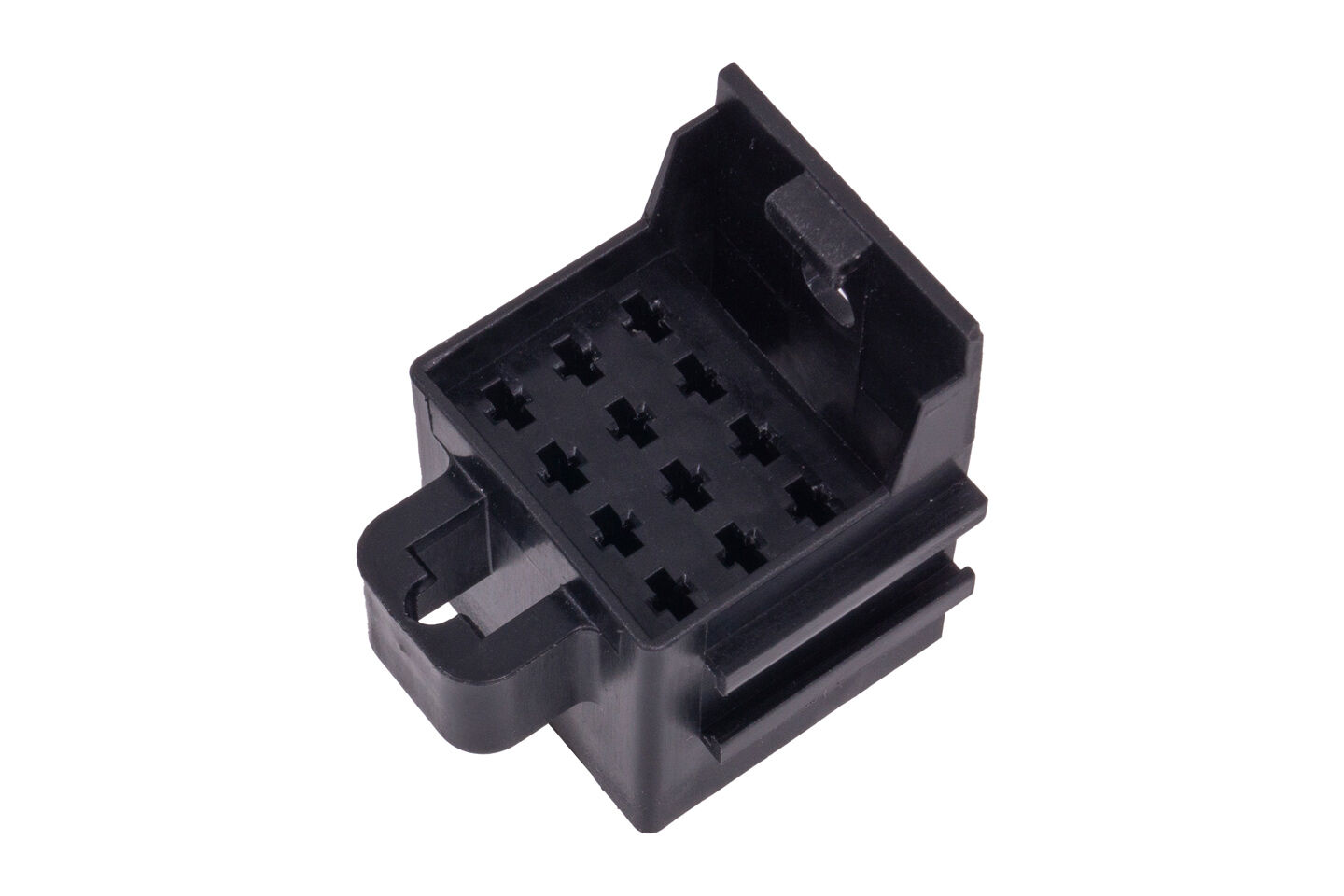

MicroPlex® socket waterproof 12-pin

MicroPlex® Stecksockel 12-polig

Article number: 1.017.055.x

In combination with the waterproof socket, our MicroPlex® products are protected against dust and water up to protection class IP6K8.

Specialist articles on the topic of intelligence in the smallest of spaces

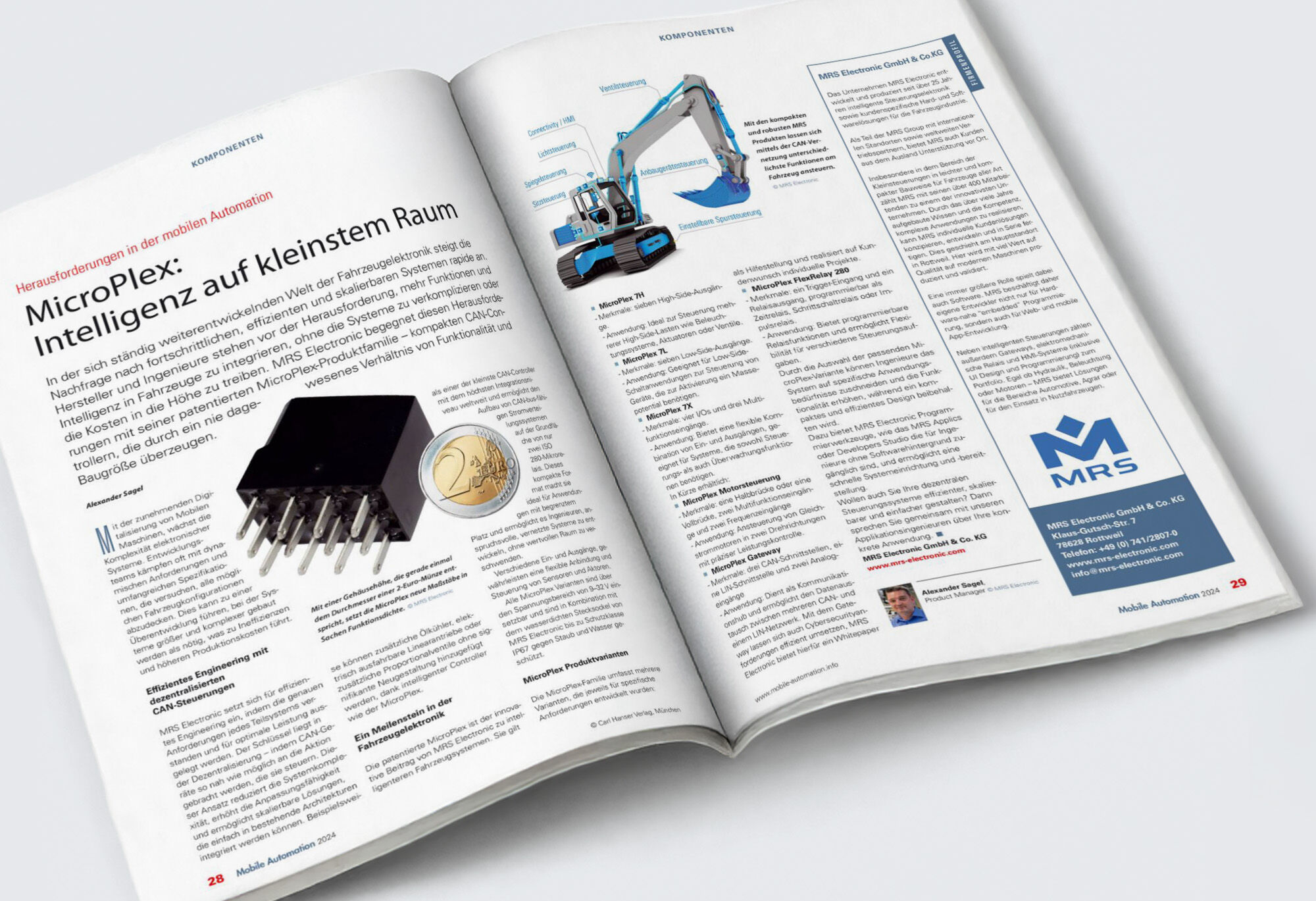

We are featured in the 2024/2025 issue of Mobile Automation magazine with a technical article about our MicroPlex® products. This article is about how we use our MicroPlex® product family to master the challenge of integrating more functions and intelligence into vehicles without complicating the systems or driving up costs.

Contact

Would you like to find out more about our MicroPlex® products?

Please feel free to contact us. Our application engineers will support you with your specific application.
