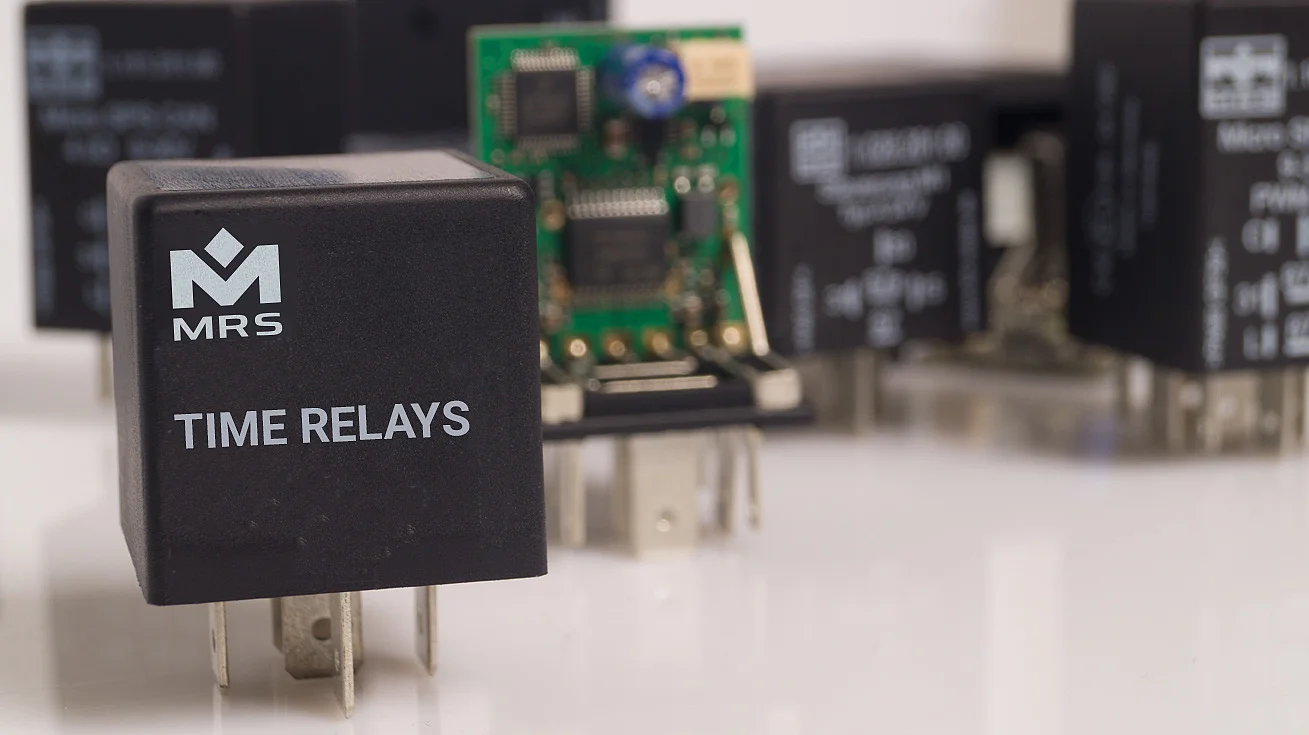

Relays

With our electromechanical relays you can switch circuits on, off and over. They offer you the possibility to control a circuit with high voltages and currents with a small circuit. Thus, a relay can be used for example very well as protection relay with machines and devices, in order to switch off immediately with wrong operating values. In addition, our relays are very suitable for controlling time-delayed circuits of any kind.

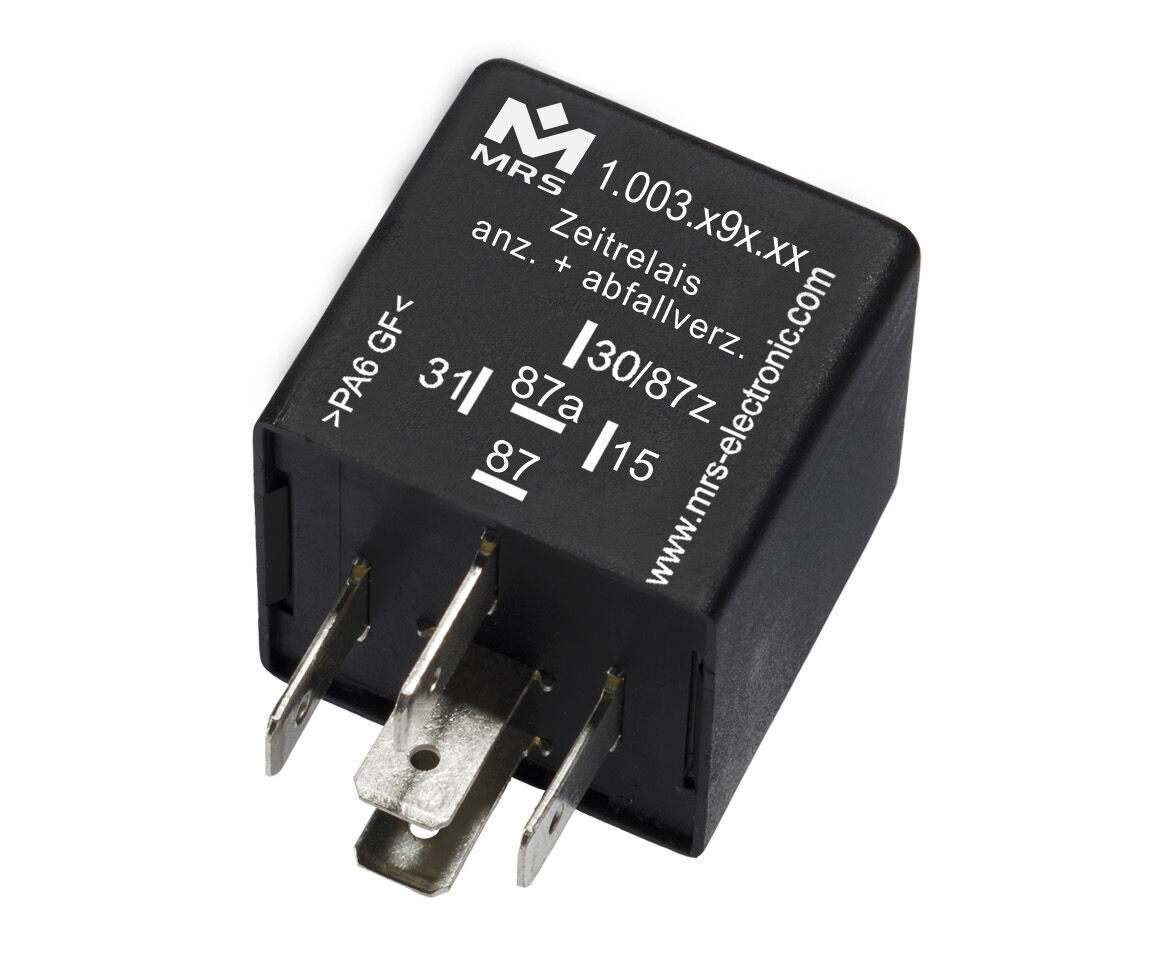

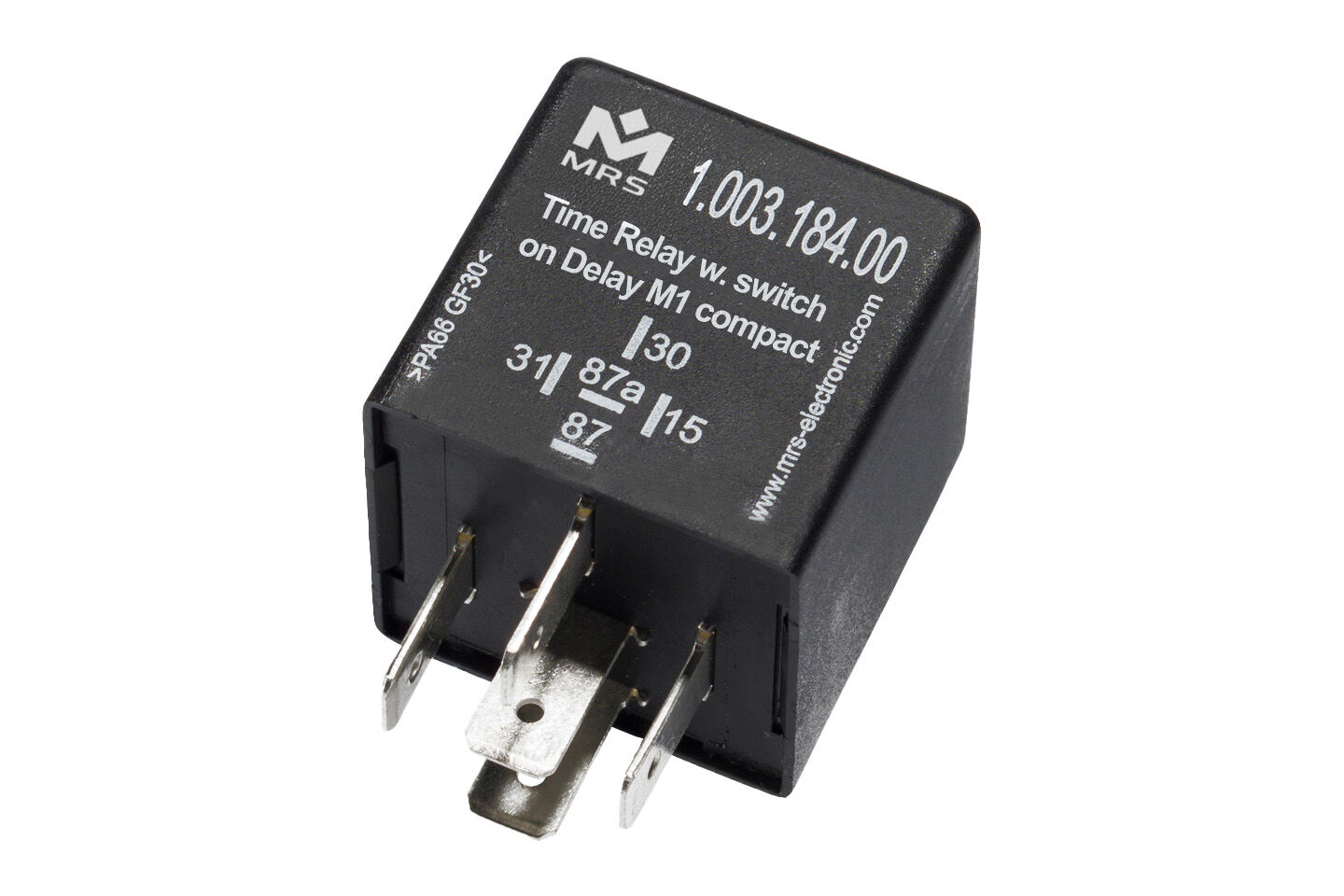

Time Relay M1 compact SW on Delay 12 V

Article number : 1.003.18x.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Quiescent current (12V):  1 mA
  • Switching current:  20 A
  • Switching cycles:  100000
  • IP rating:  IP53

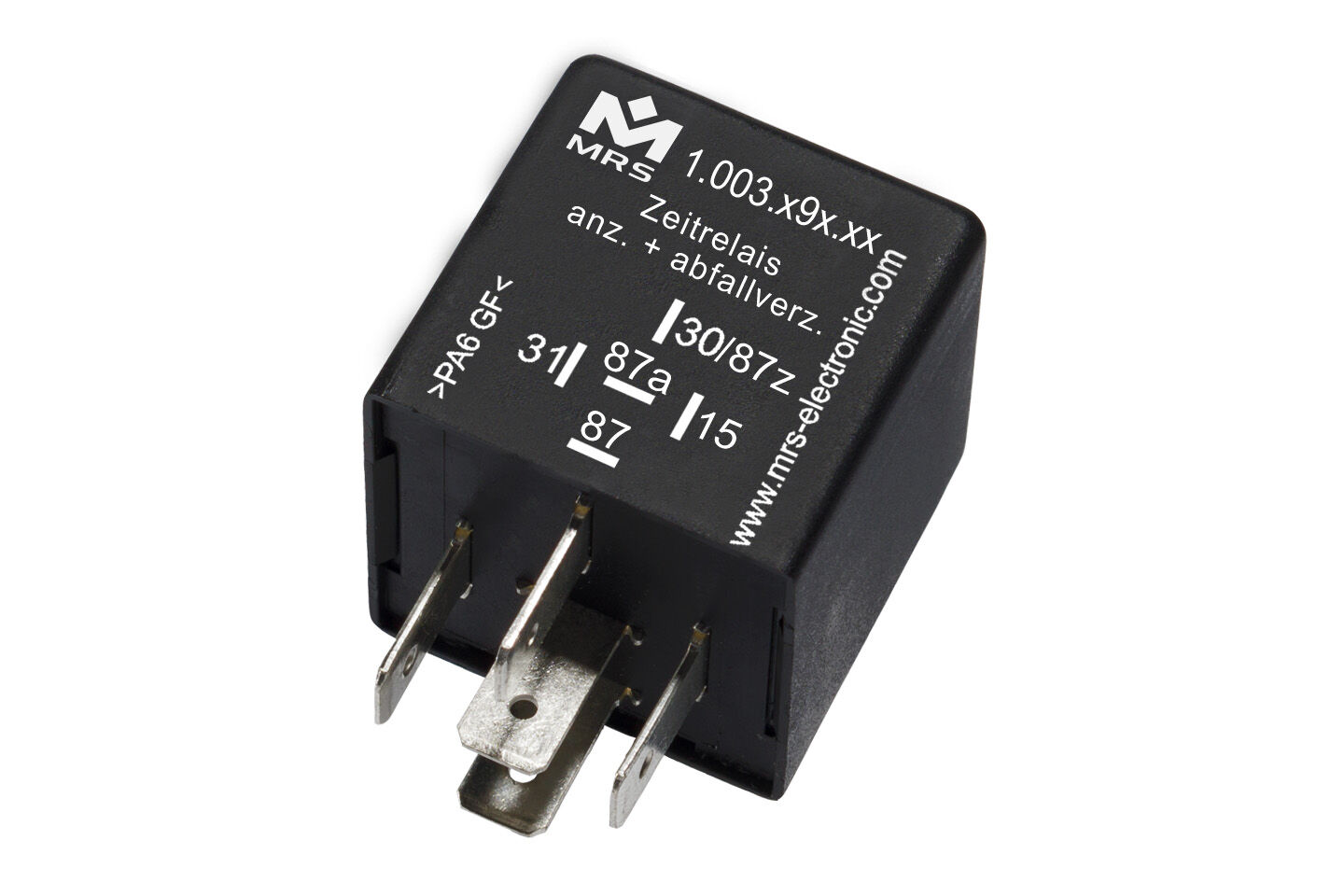

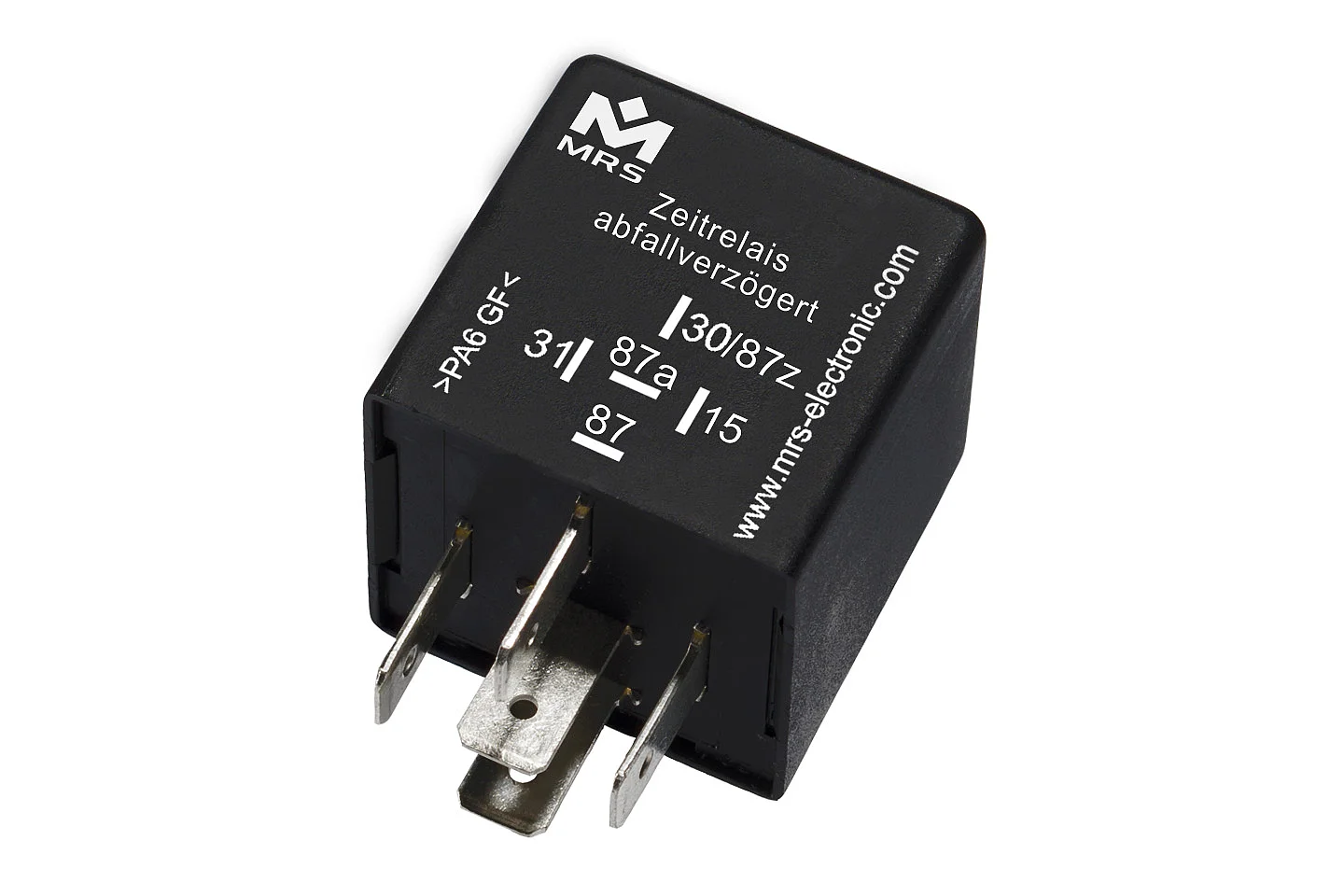

Time Relay M1 compact SW off Delay 12 V

Article number : 1.003.18y.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Quiescent current (12V):  1 mA
  • Switching current:  20 A
  • Switching cycles:  100000
  • IP rating:  IP53

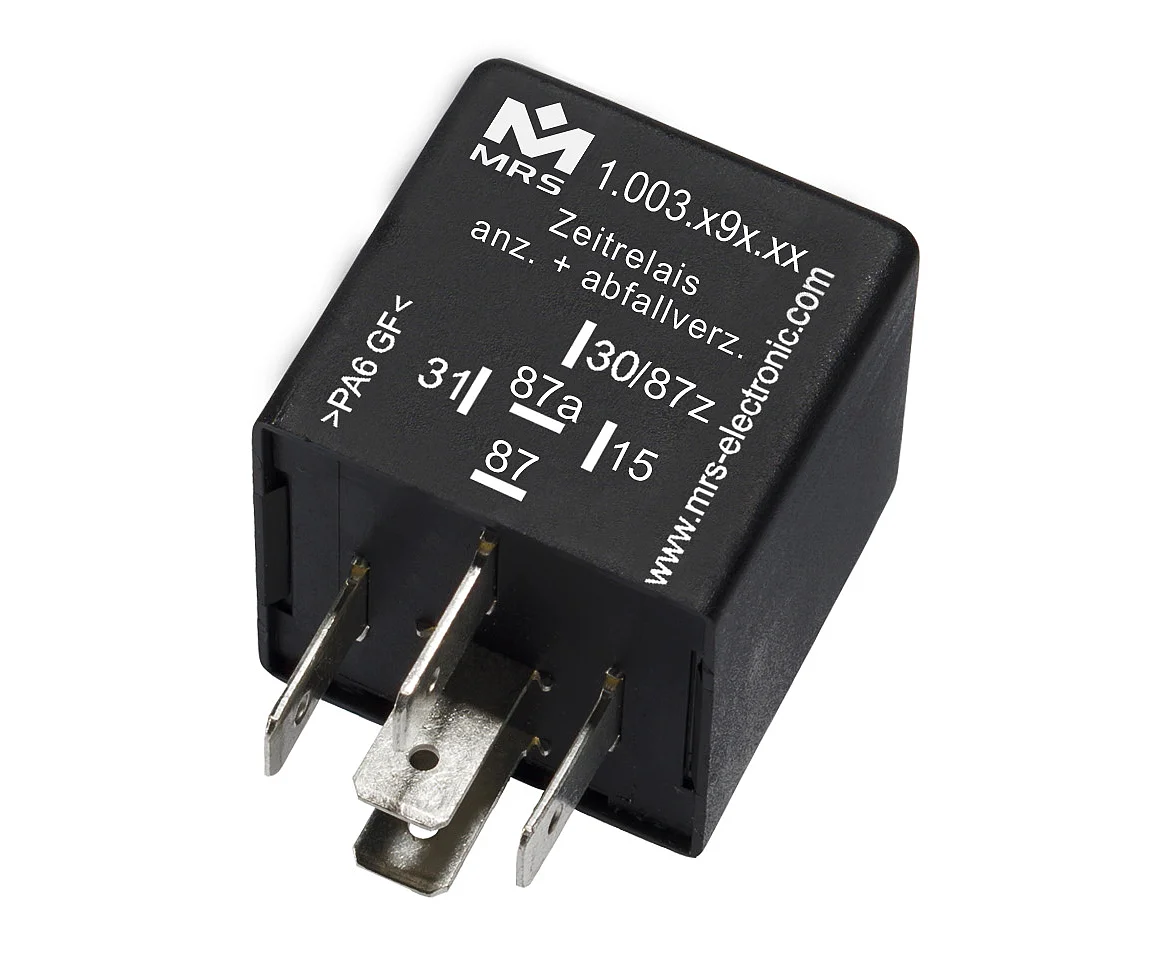

Time Relay M1 compact SW on/off Delay 12 V

Article number : 1.003.18z.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Quiescent current (12V):  1 mA
  • Switching current:  20 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M3 SW on Delay 12 V

Article number : 1.003.19x.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 20 A / NC 15 A
  • Switching cycles:  100000
  • IP rating:  up to IP6K8

Time Relay M3 SW off Delay 12 V

Article number : 1.003.19y.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 20 A / NC 15 A
  • Switching cycles:  100000
  • IP rating:  up to IP6K8

Time Relay SW on/off Delay 12 V

Article number : 1.003.19z.xx

  • Operating voltage:  9-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 15 A / NC 15 A
  • Switching cycles:  100000
  • IP rating:  up to IP6K8

Time Relay M1 compact SW on Delay 24 V

Article number : 1.003.28x.xx

  • Operating voltage:  16-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  15 A NC / 15 A NO
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M1 compact SW off Delay 24 V

Article number : 1.003.28y.xx

  • Operating voltage:  16-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  15 A NC / 15 A NO
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M1 compact SW on/off Delay 24 V

Article number : 1.003.28z.xx

  • Operating voltage:  16-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  15 A NC / 15 A NO
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay M3 SW on Delay 24 V

Article number : 1.003.29x.xx

  • Operating voltage:  14-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NC 15 A / NO 15 A
  • Switching cycles:  100000
  • IP rating:  up to IP6K8

Time Relay M3 SW off Delay 24 V

Article number : 1.003.29y.xx

  • Operating voltage:  14-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NC 15 A / NO 15 A
  • Switching cycles:  100000
  • IP rating:  up to IP6K8

Time Relay SW on/off Delay 24 V

Article number : 1.003.29z.xx

  • Operating voltage:  14-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NC 15 A / NO 15 A
  • Switching cycles:  100000
  • IP rating:  up to IP6K8

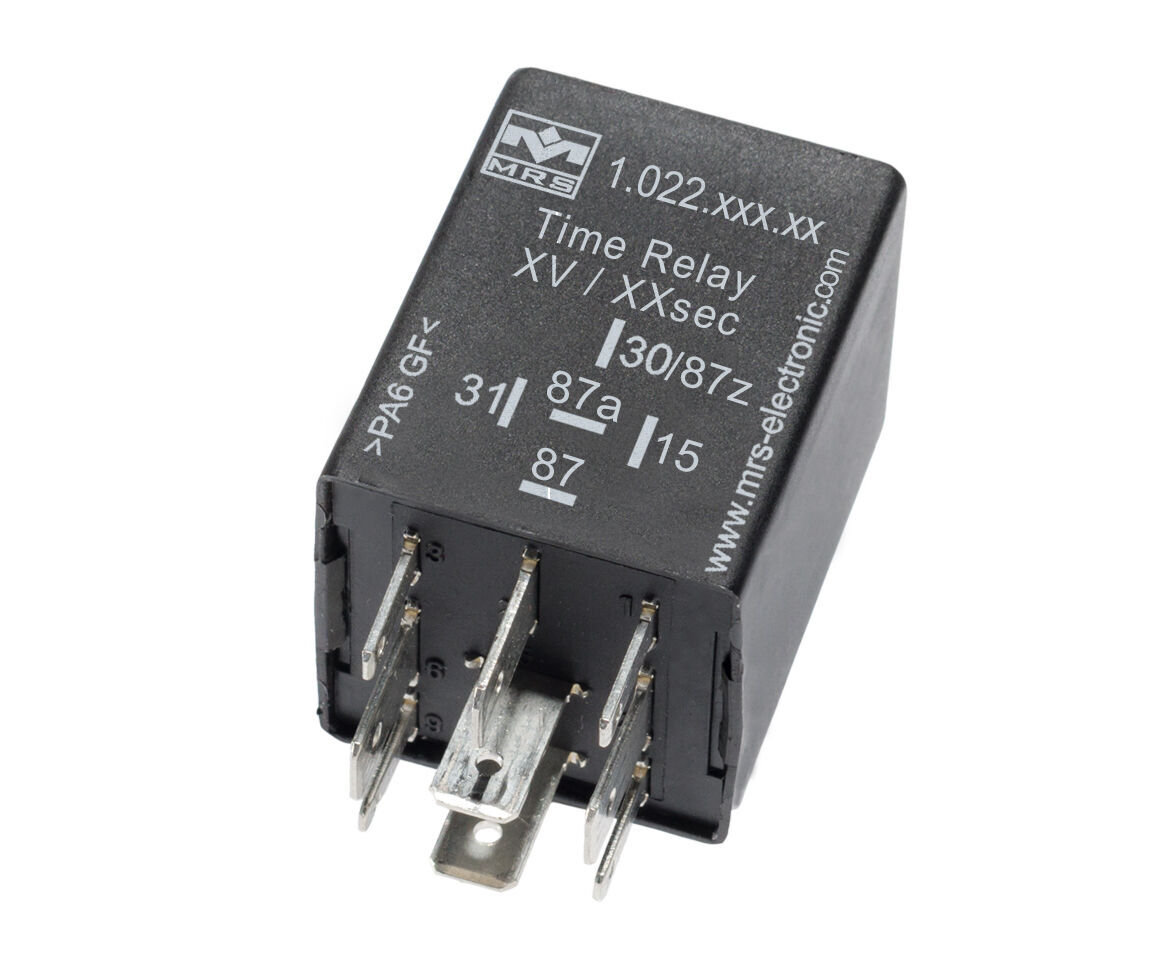

Time Relay SW on Delay adjust 12 V

Article number : 1.022.11y.xx

  • Operating voltage:  10-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 15 A / NC 5 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay SW off Delay adjust 12 V

Article number : 1.022.11z.xx

  • Operating voltage:  10-16 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 15 A / NC 5 A
  • Switching cycles:  100000
  • IP rating:  IP53

Time Relay SW on Delay adjust 24 V

Article number : 1.022.21y.xx

  • Operating voltage:  16-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 10 A / NC 5 A
  • Switching cycles:  50000
  • IP rating:  IP53

Time Relay SW off Delay adjust 24 V

Article number : 1.022.21z.xx

  • Operating voltage:  16-32 V
  • Outputs (total):  1
  • Number of pins:  5
  • Relay outputs:  1
  • Switching current:  NO 10 A / NC 5 A
  • Switching cycles:  50000
  • IP rating:  IP53

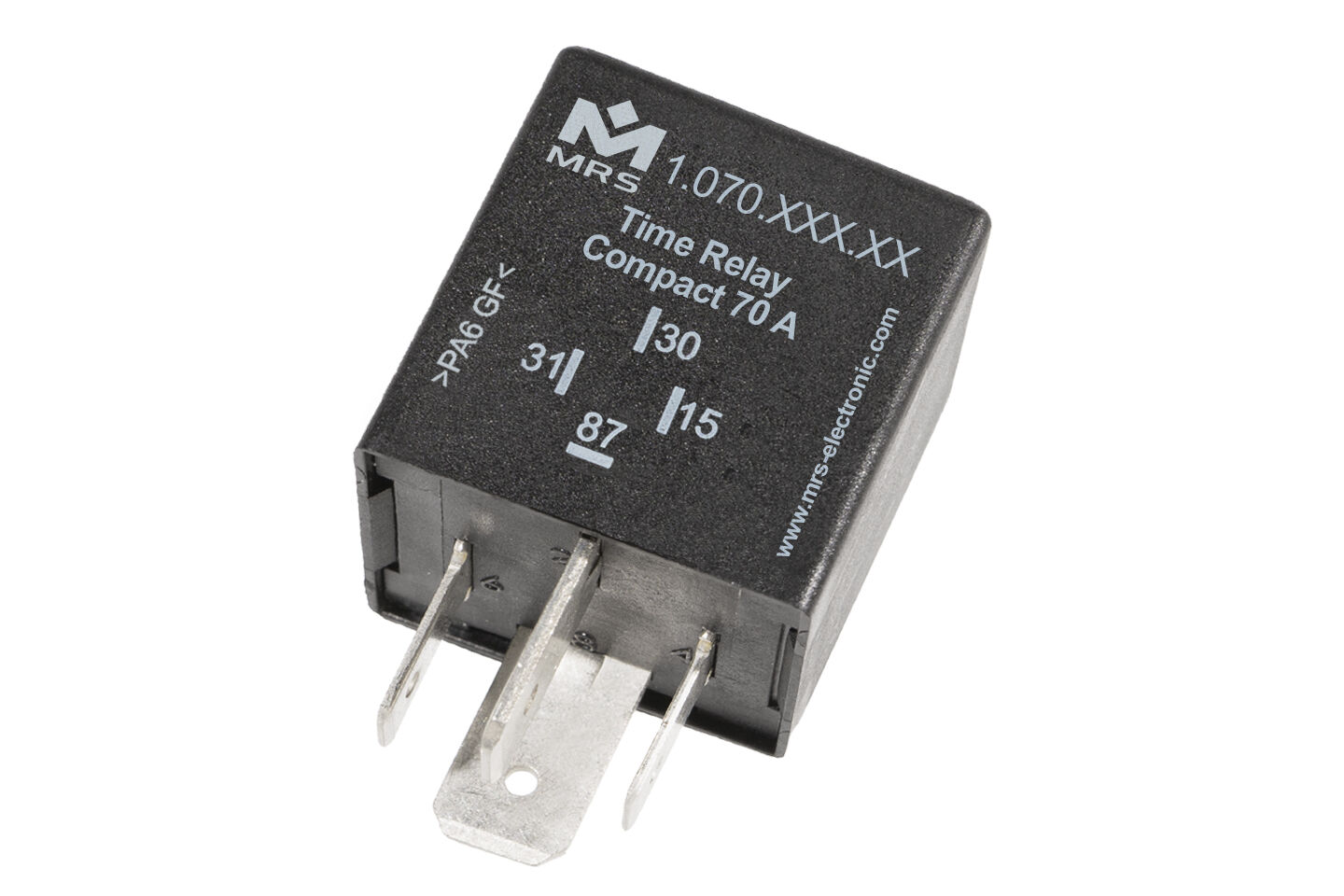

Time Relay Compact 35 A

Article number : 1.070

  • Operating voltage:  6.5-32 V
  • Outputs (total):  1
  • Relay outputs:  1
  • Switching current:  70A
  • IP rating:  IP53
