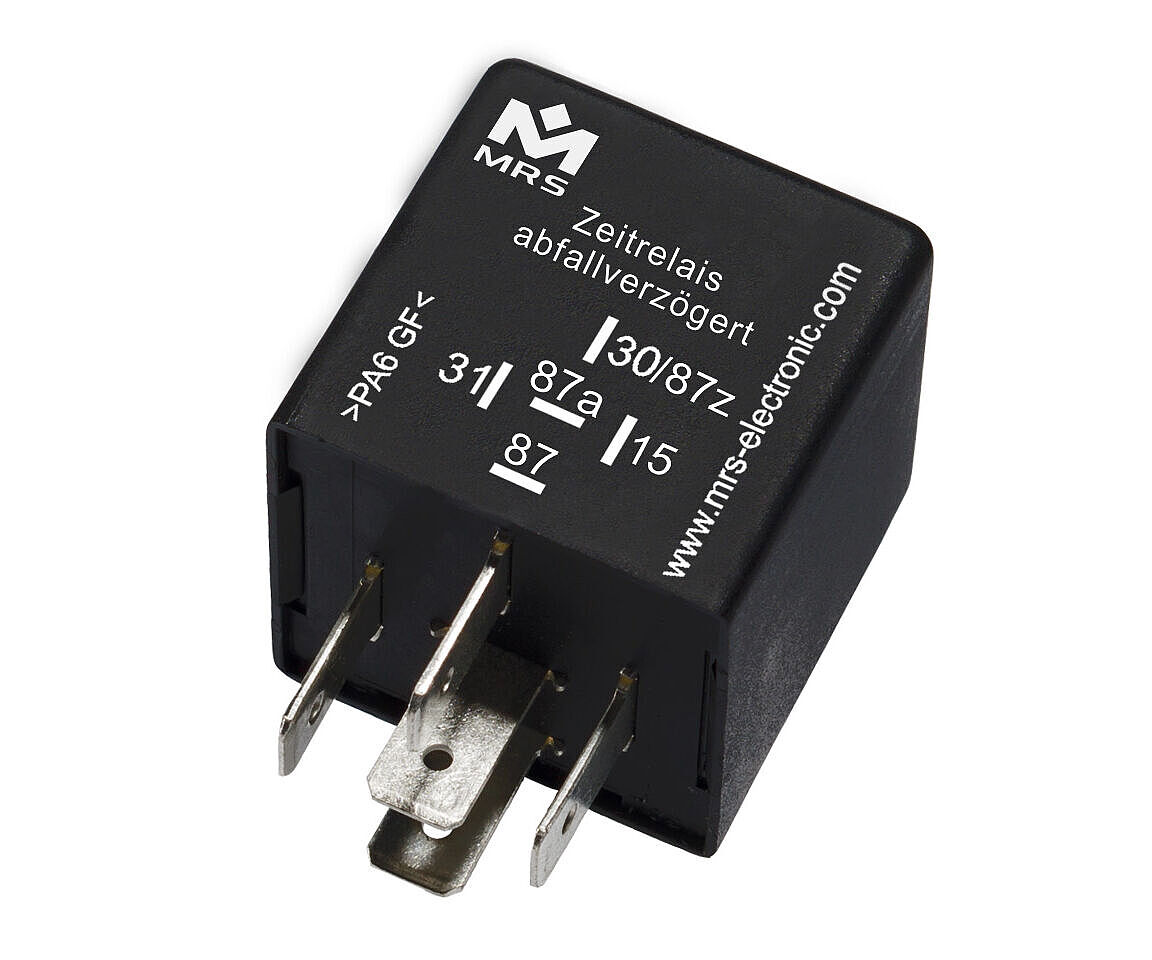

Time Relay M1 compact SW off Delay 24 V
go to order options (100328yxx)

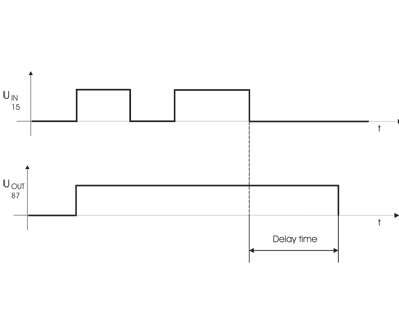

Time relays with switch off delay switch on the consumer after the specified delay time has elapsed. Please specify the desired delay time when ordering. All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is applied to terminal 15, the relay will immediately pull on. If the voltage is removed at Terminal 15, the relay will fall off after the specified time has elapsed.

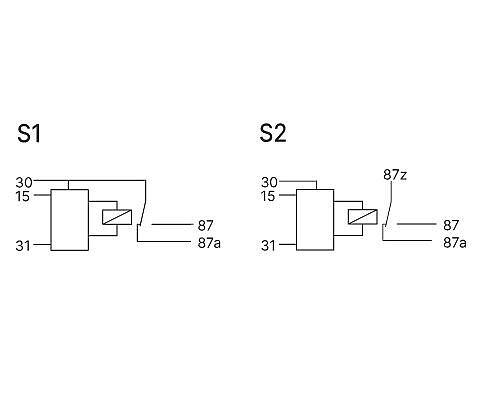

Circuit diagram S2: The contacts are separate from the control and can therefore be used in links. In this variant, the relay contact is completely potential-free and thus capable of switching alternating voltage. Circuit diagram S3: The relay does not consume a quiescent current by the diode circuitry after the drop. Variant S3 only 10/15a (ö/s). Housing forms can be found in the section housing and basic body.
Downloads
Technical details
Inputs and Outputs
| Number of pins | 5 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | 15 A NC / 15 A NO |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 30 mm |
| Switching cycles | 100000 |
Programming
| Programming software | MRS Realizer |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 16-32 V |
| Current consumption | 2 mA |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.003.281.xx (1003281xx) |

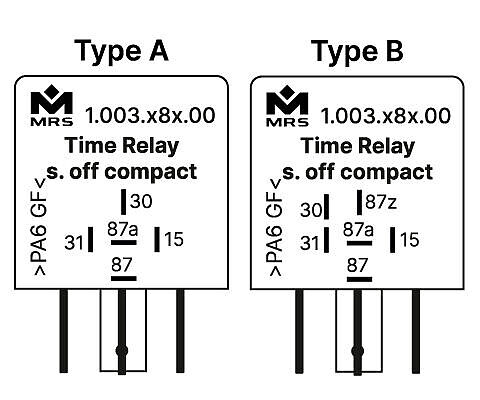

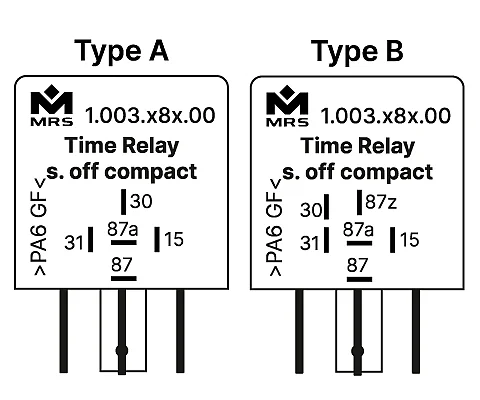

Individual delay time, Type A, Connection S1
|
| 1.003.282.xx (1003282xx) |
Individual delay time, Type B, Connection S2
|
