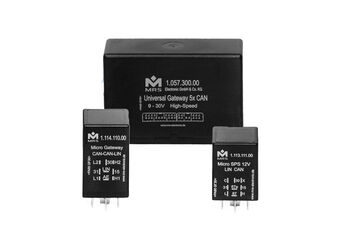

Gateways

As a central point for all control units, our gateways provide high performance in the transmission of data and information. MRS-Gateways are used primarily in the automotive sector, where they can control, coordinate and communicate to all control units in the vehicle. The modules are characterized by error-free and secure communication.

Micro Gateway 32-bit

Article number : 1.156.x

Operating voltage: 9-32 V
CAN interface(s): 2
CAN FD interface(s): 2
LIN interface(s): 2
In-/Outputs (total): 2
I/Os (total): 2
IP rating: up to IP6K8

Micro Gateway

Article number : 1.114.x

Operating voltage: 9-32 V
CAN interface(s): 2
LIN interface(s): 2
In-/Outputs (total): 2
IP rating: up to IP6K8

CAN Gateway Module

Article number : 1.042.1xx.xx

Operating voltage: 9-18 V
CAN interface(s): 3
In-/Outputs (total): 30
IP rating: IP53

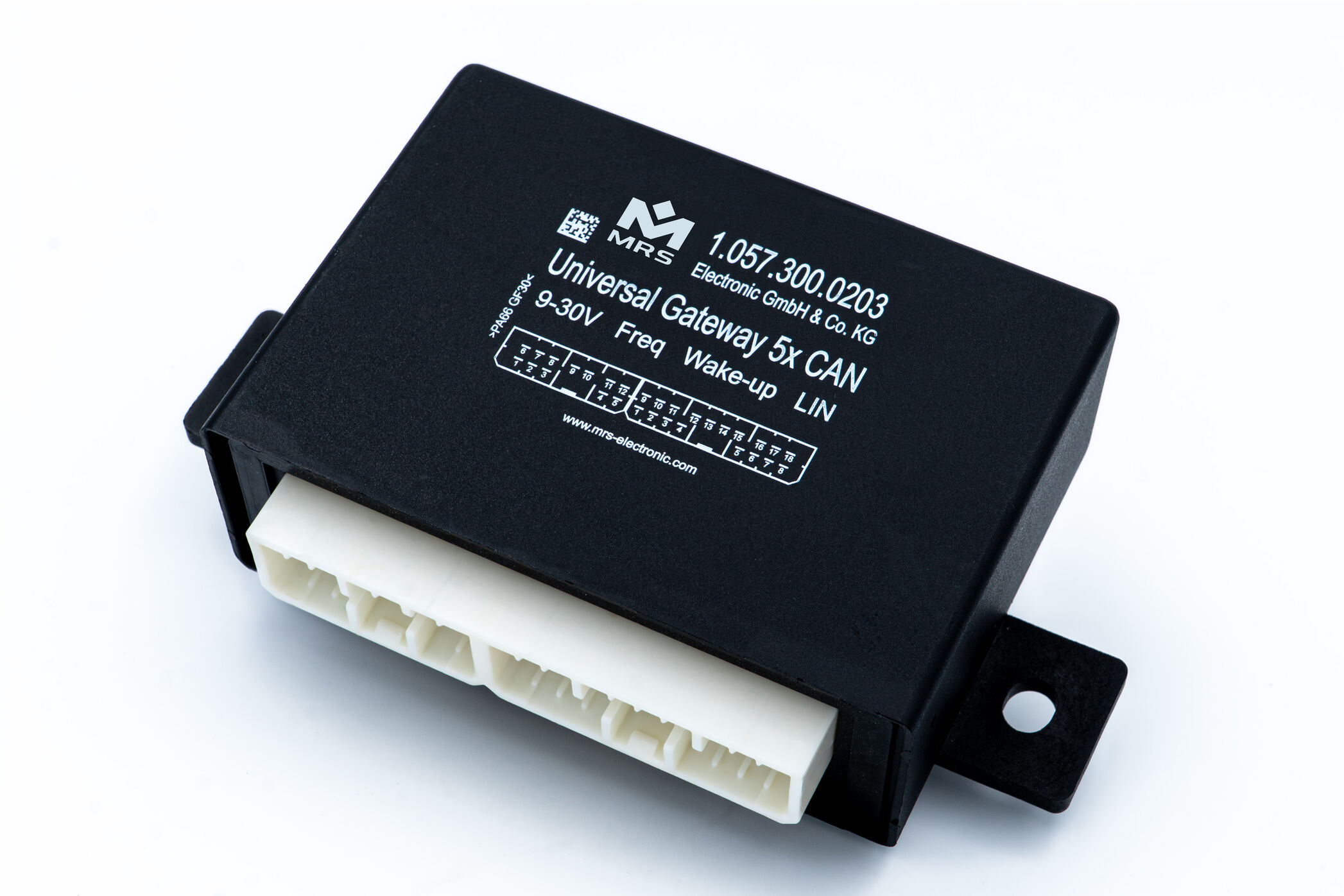

Universal Gateway 5x CAN

Article number : 1.057.3xx.xx

Operating voltage: 9-32 V
CAN interface(s): 5
In-/Outputs (total): 9
IP rating: IP54

Micro PLC CAN LIN

Article number : 1.113.111.0x

Operating voltage: 8-16 V
CAN interface(s): 1
LIN interface(s): 1
In-/Outputs (total): 4
I/Os (total): 2
IP rating: up to IP6K8

MicroPlex® Gateway 3CAN LIN

Article number : 1.141

Operating voltage: 8-32 V
CAN FD interface(s): 3
LIN interface(s): 1
In-/Outputs (total): 2
IP rating: up to IP68

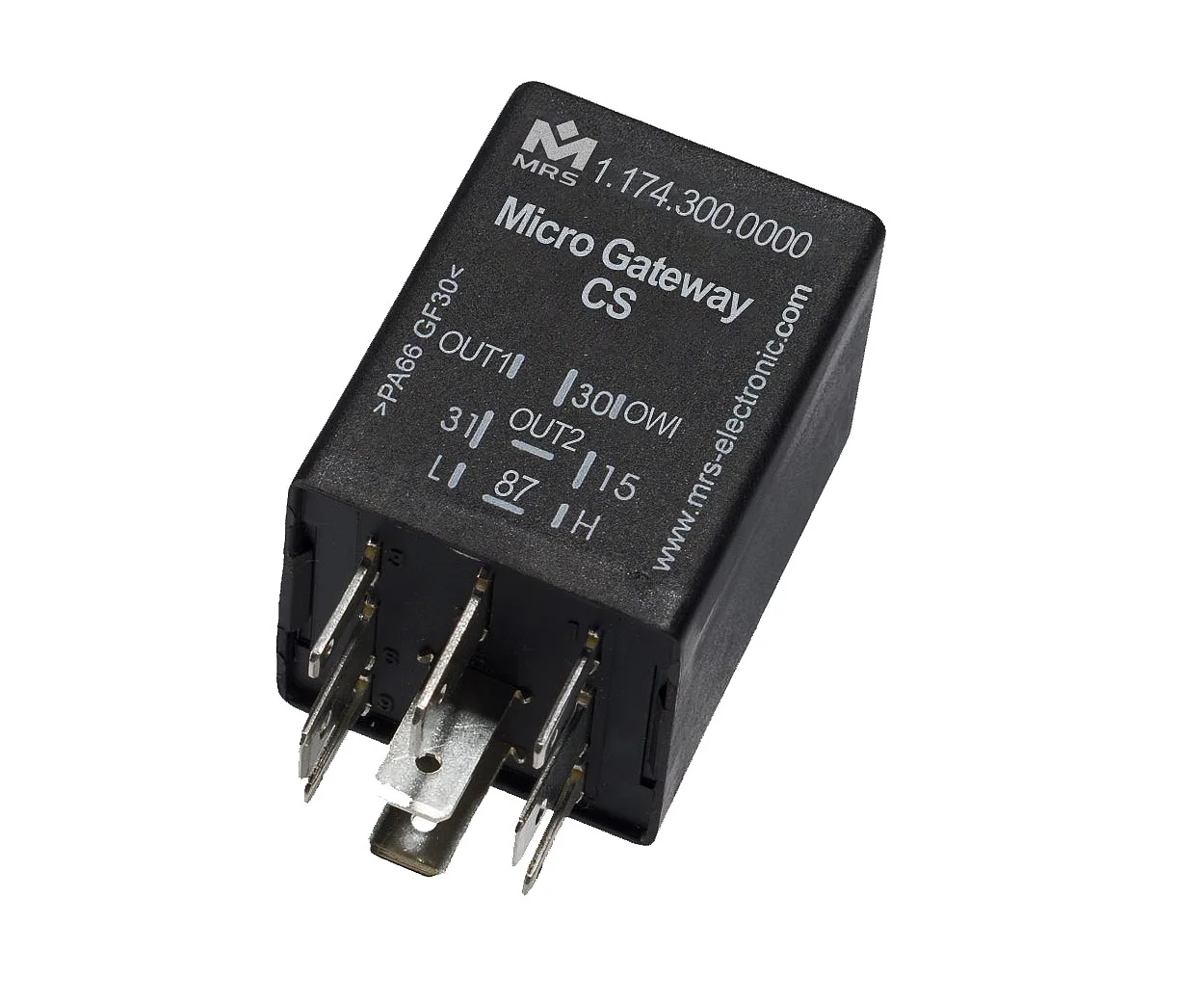

Micro Gateway CS

Article number : 1.174.x

Operating voltage: 9-32 V
CAN interface(s): 1
In-/Outputs (total): 3
IP rating: up to IP6K8
