Micro Gateway

The Micro Gateway is a compact gateway for automotive applications. Due to its small size and easy installation, it offers a wide range of applications. The gateway in the 30 x 30 x 50 mm plastic housing offers four different assembly variants.

Downloads

Data sheet Micro Gateway (English) Data sheet Micro Gateway (German) Operating instruction Gateways EU Declaration of Conformity

Micro Gateway

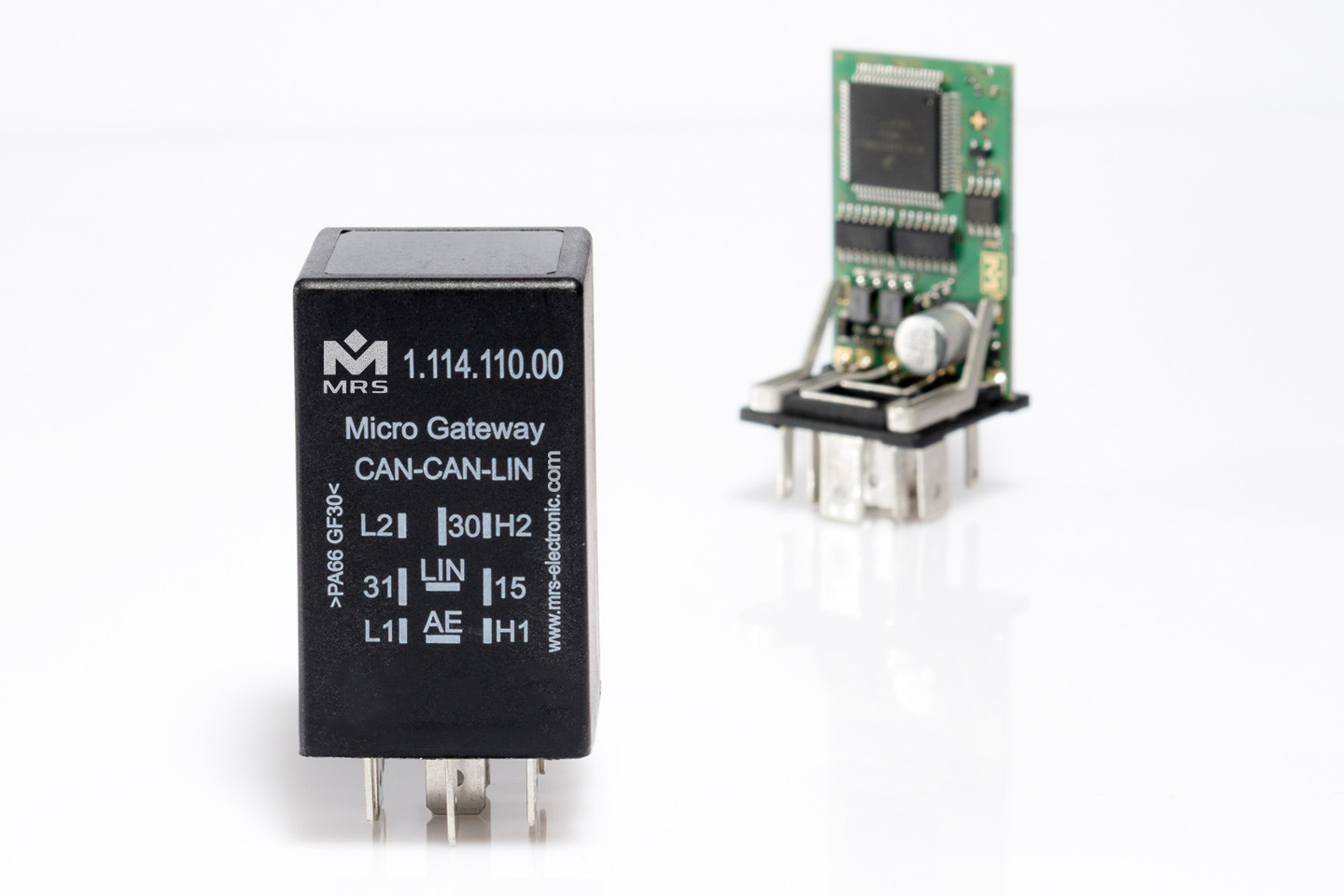

Double view

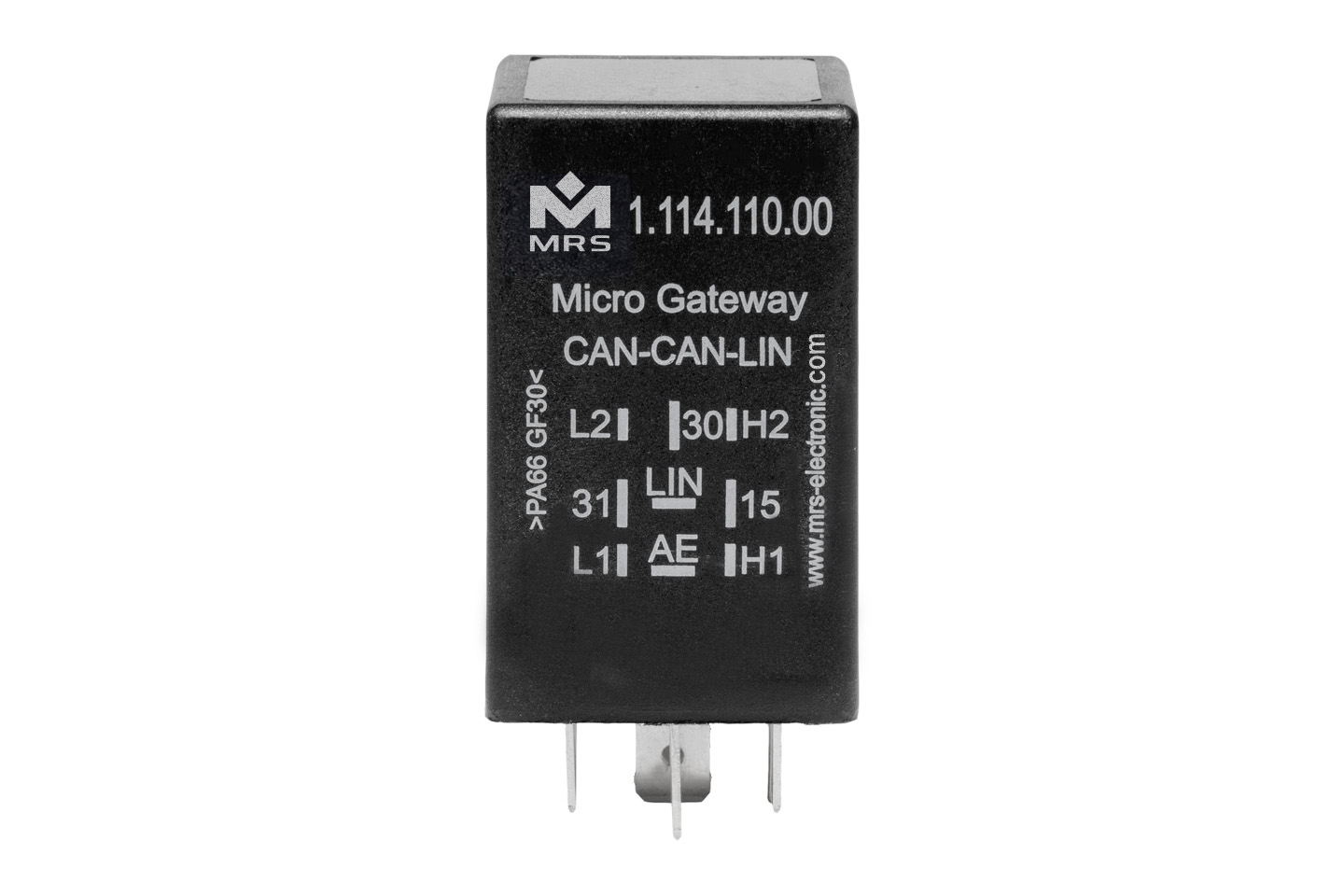

Front View

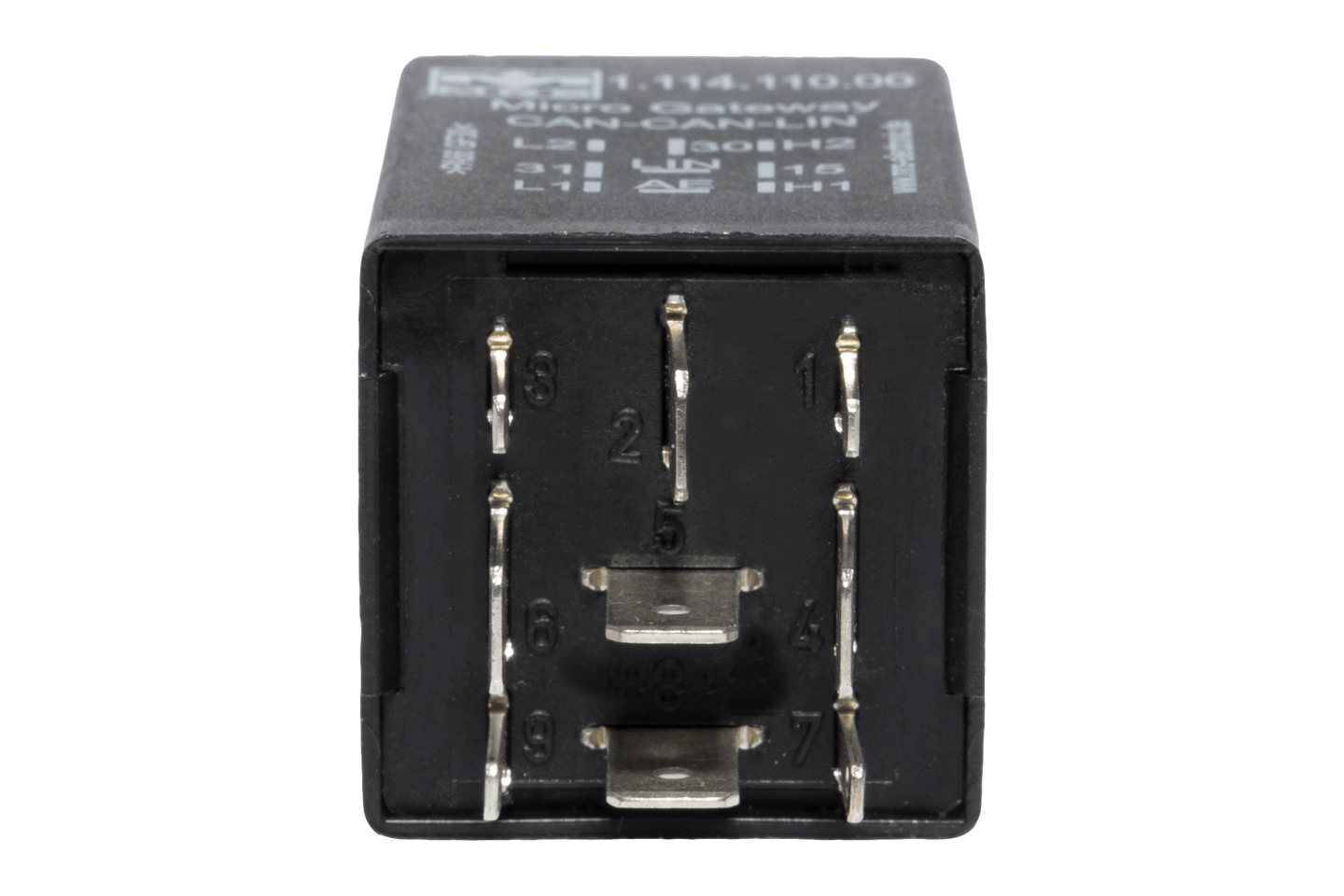

View of Plug

To our online shop

Technical details

Inputs and Outputs

Number of pins	9
In-/Outputs (total)	2
Inputs (total)	1
Inputs (analog)	1
Outputs (total)	1
Outputs (digital)	1
Output type high side	1
Switching current	1

Interfaces

CAN interface(s)	2
LIN interface(s)	2

Mechanical Properties

IP rating	up to IP6K8
Housing material	PA66GF30
Dimensions	30 × 30 × 50 mm

Programming

Programming software	MRS Developers Studio

General Information

Temperature range	-40 to +85°C
Operating voltage	9-32 V
Current consumption	60
Quiescent current (12V)	55 µA
Quiescent current (24V)	125 µA
Processor architecture	16 bit

Markings

Order options

Order no.	Name
1.114.110.00 (111411000)	CAN-CAN-LIN
1.114.110.0012 (11141100012)	12 V, 2 x CAN-Bus (120 Ohm), LIN (12V)
1.114.130.0000 (11141300000)	2xCAN-2xLIN, C, CAN-CAN-LIN-LIN
1.114.210.0012 (11142100012)	24 V, 2 x CAN (120 Ohm), LIN (24V)
1.114.230.0012 (11142300012)	24 V, 2 x CAN (120 Ohm), 2 x LIN (24V)
1.114.300.00 (111430000)	CAN-CAN
1.114.300.0011 (11143000011)	2 x CAN-Bus (120 Ohm)
1.114.111.0000 (11141110000)	12V, CAN-CAN-LIN
