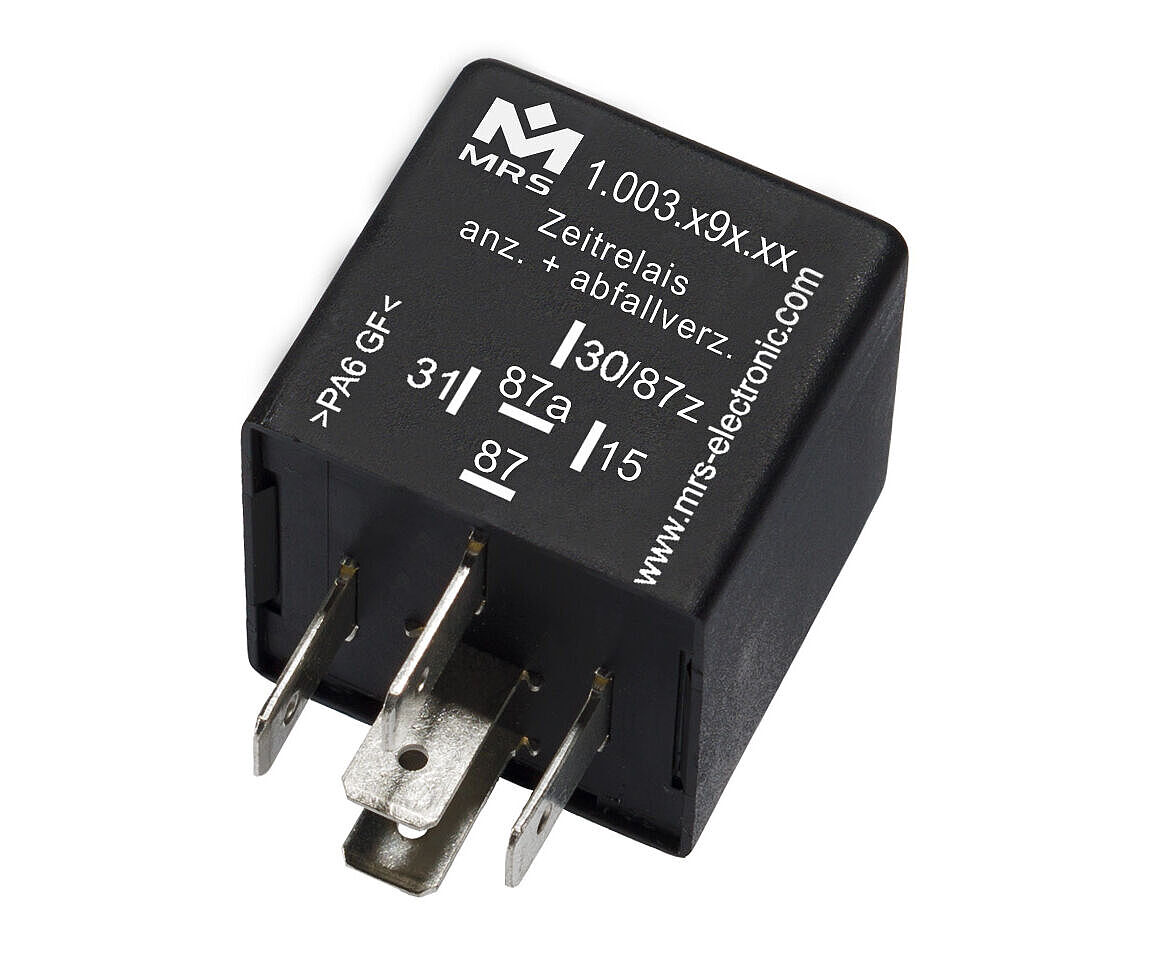

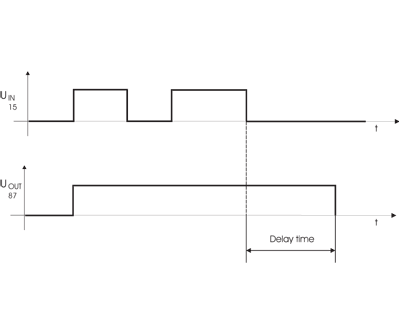

Time relays switches on the consumer after the specified delay time has elapsed. Please specify the desired delay time when ordering. All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is applied to terminal 15, the relay will immediately pull on. If the voltage is removed at Terminal 15, the relay will fall off after the specified time has elapsed.

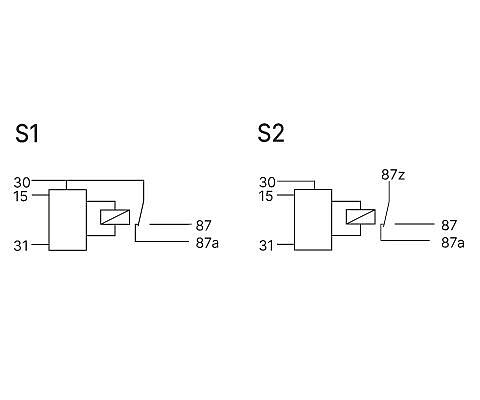

Circuit diagram S2 and S3: The contacts are separate from the control and can therefore be used in links. With the Variants S2 and S3, the relay contact is completely potential-free and thus capable of switching alternating voltage. Housing forms can be found in the section housing and basic body.
Number of pins | 5 |
---|---|
In-/Outputs (total) | 2 |
Inputs (total) | 1 |
Inputs (digital) | 1 |
Outputs (total) | 1 |
Relay outputs | 1 |
Switching current | 20 A |
IP rating | IP53 |
---|---|
Housing material | PA66GF30 |
Dimensions | 30 × 30 × 30 mm |
Switching cycles | 100000 |
Programming software | MRS Realizer |
---|
Temperature range | -40 to +85°C |
---|---|
Operating voltage | 9-16 V |
Current consumption | 75 mA |
Quiescent current (12V) | 1 mA |
Order no. | Name |
---|---|
1.003.181.xx (1003181xx) |
Individual delay time, Type A, Connection S1
|
1.003.182.xx (1003182xx) |
Individual delay time, Type B, Connection S1
|
