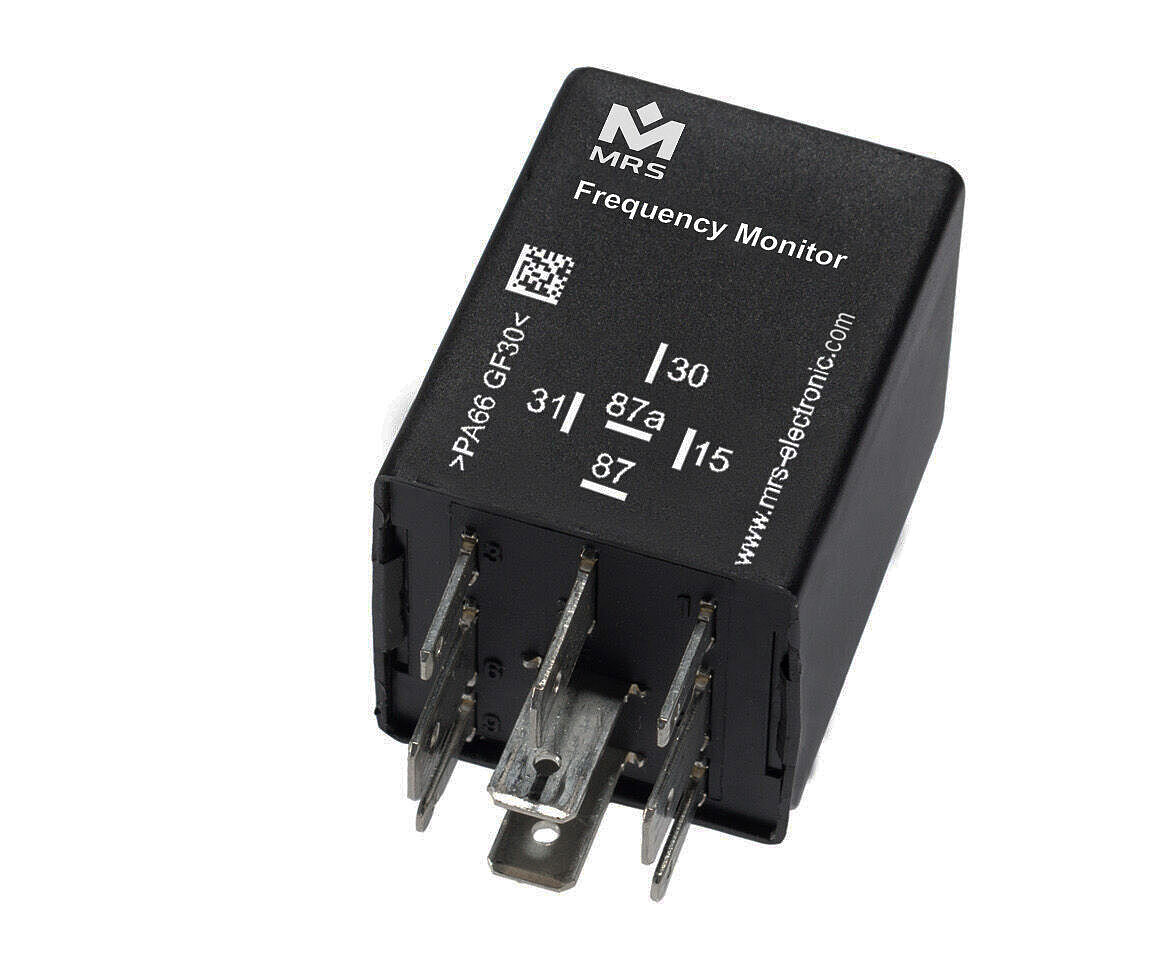

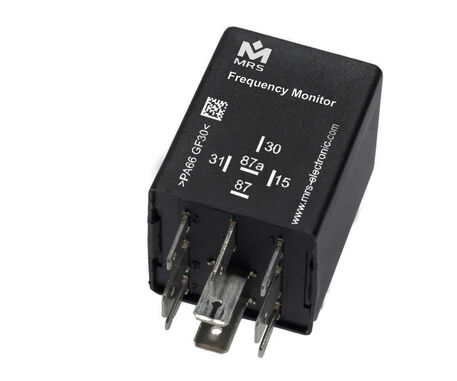

Frequency Monitor 12 V
go to order options (10261x)
The frequency monitor measures the input signal frequency applied to terminal 15 and energizes/deenergizes the output when the signal frequency exceeds/drops below the defined threshold frequency. The threshold frequency can be selected from the 10 - 1.000 Hz frequency range. In addition, combinations including custom delay times are possible. Please refer to the chapter housing and base plates for additional housing options.
Technical details
Inputs and Outputs
| Number of pins | 5 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | NO 15 A / NC 5 A |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
| Switching cycles | 100000 |
Programming
| Programming software | MRS Realizer |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 10-16 V |
| Current consumption | 0.3 mA |
Markings
Order options
| Order no. | Name |
|---|---|

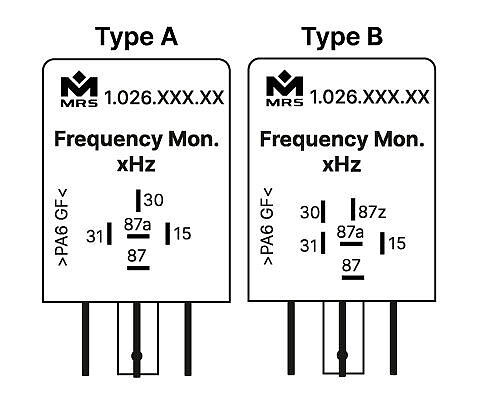

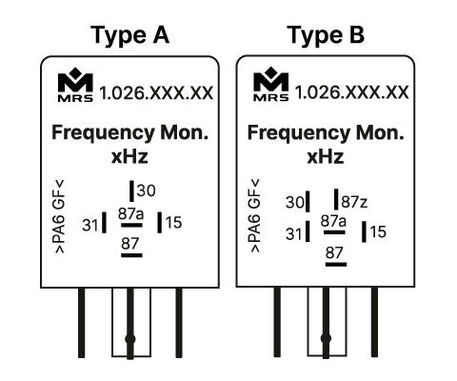

| 1.026.111.xxx (1026111xxx) |

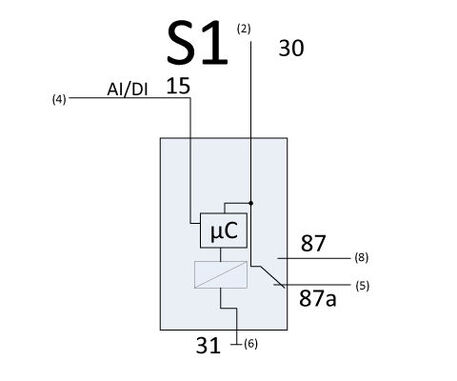

Individual frequency, Type A, Connection S1
|
| 1.026.112.xxx (1026112xxx) |

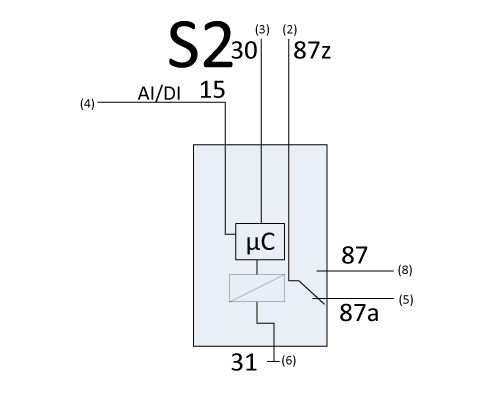

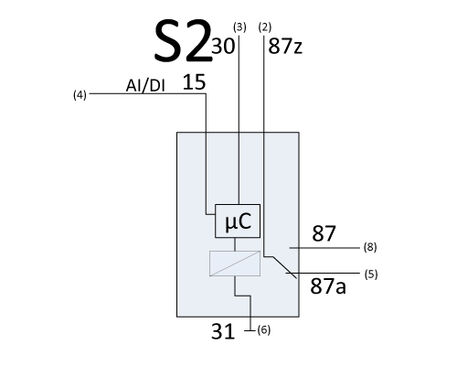

Individual frequency, Type B, Connection S2
|
