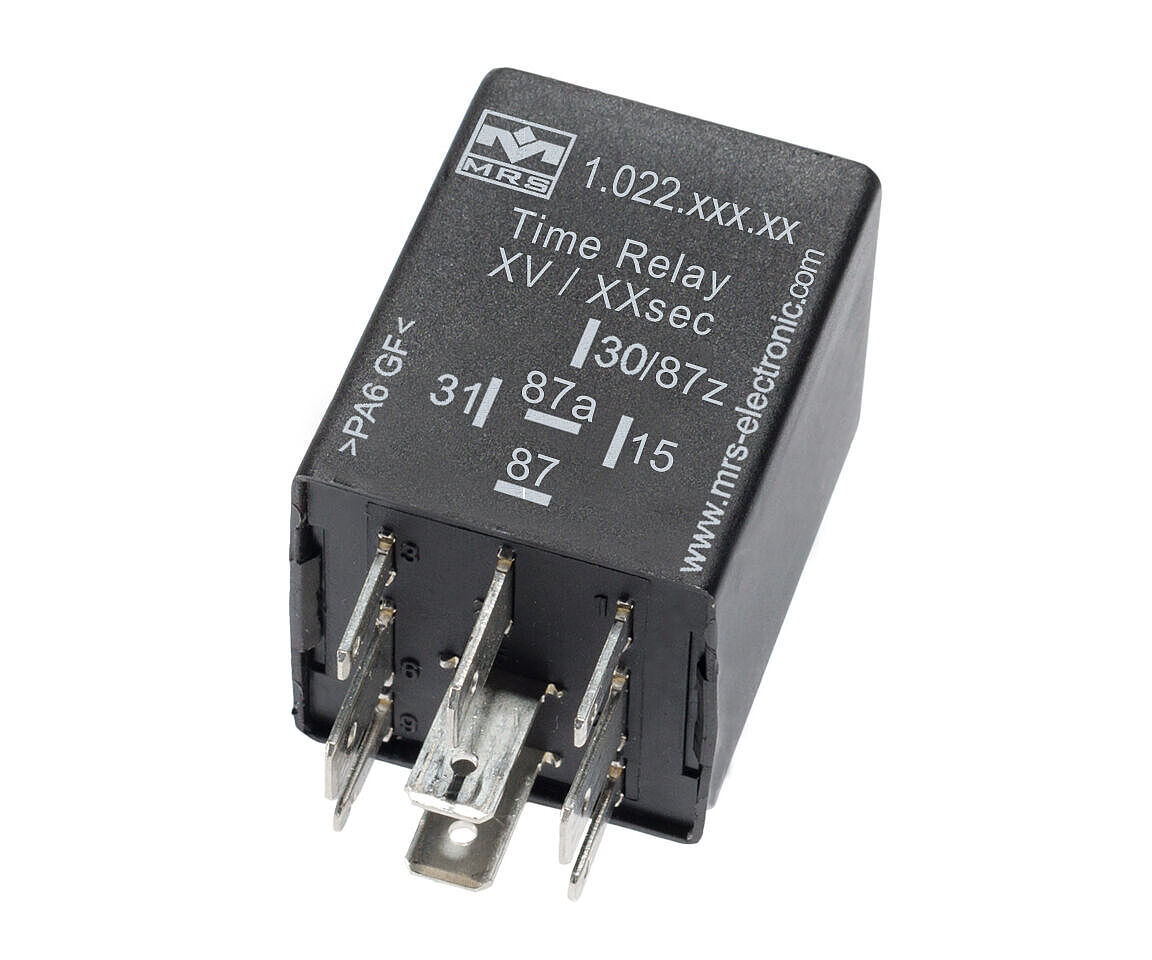

Time Relay SW on Delay adjust 24 V
go to order options (102221yxx)
With time relays adjustable the exact delay time can be set via potentiometer within the selected time range. You can choose from five time ranges by default (see table). We realize other time ranges on request. Please specify the desired time range when ordering.

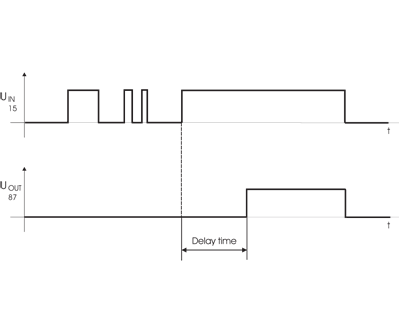

All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is applied to terminal 15, the relay will move on after the set time has elapsed. If the voltage is removed at Terminal 15, the relay drops off immediately. Circuit diagram S3: The contacts are separate from the control and can therefore be used in links. Housing forms can be found in the section housing and basic body.
Downloads
Technical details
Inputs and Outputs
| Number of pins | 5 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | NO 10 A / NC 5 A |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
| Switching cycles | 50000 |
Programming
| Programming software | MRS Realizer |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 16-32 V |
| Current consumption | 0.3 mA |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.022.212.xx (1022212xx) |

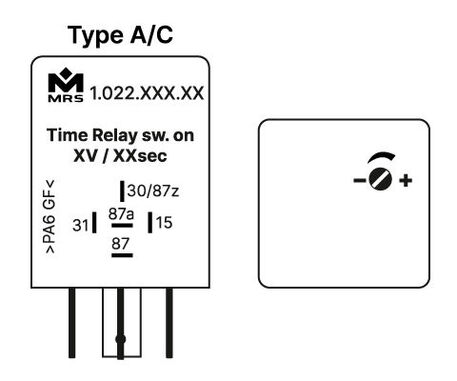

Individual delay time, Type A, Connection S1
|
| 1.022.210.xx (1022210xx) |
Individual delay time, Type B, Connection S3
|
