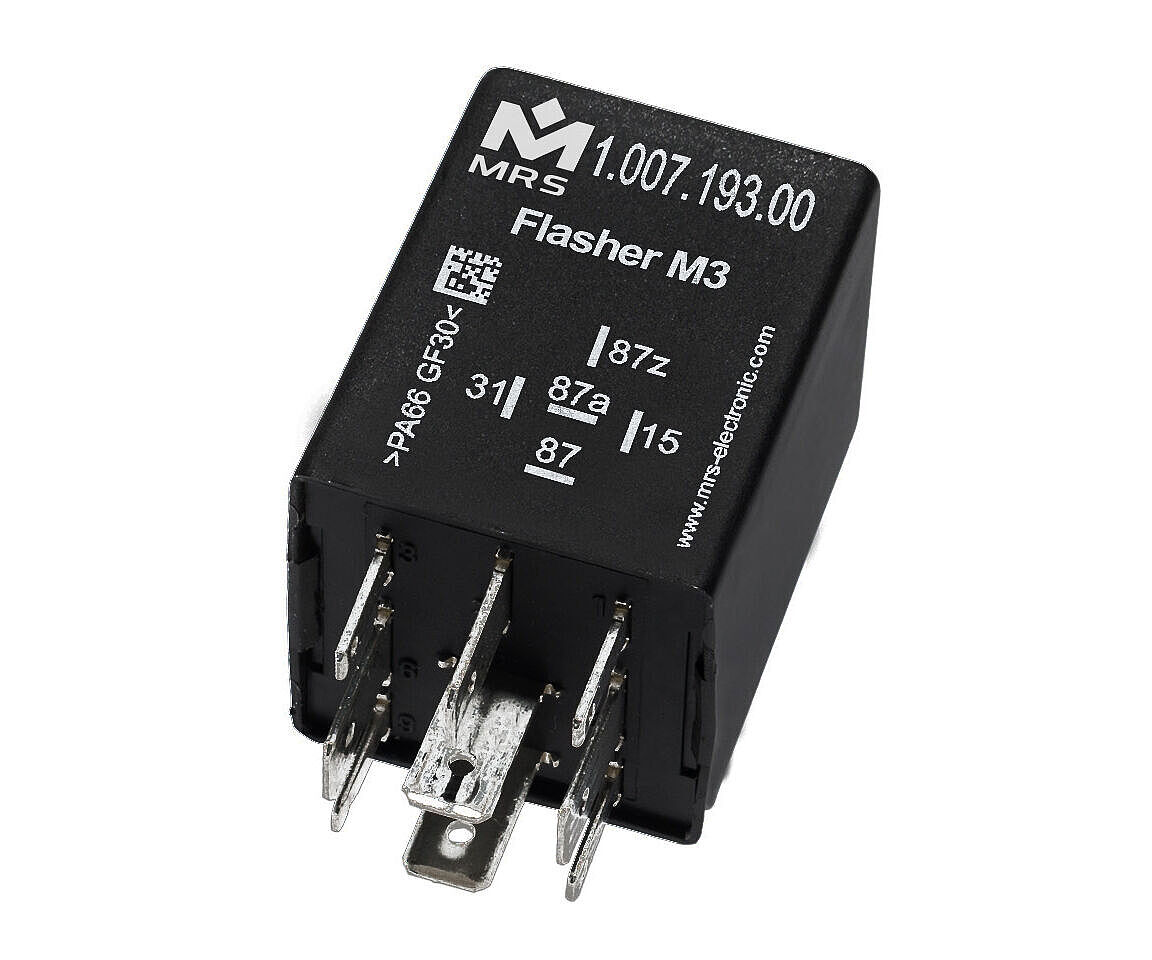

The flasher unit start/stop M3 is used for signal and warning light applications. The flasher can be used in various vehicle types. The supply voltage is connected to terminal 30/87z. When an input voltage is applied to terminal 15 the flasher unit starts immediately, generating 90 +/-30 pulses per minute. The flasher output can switch loads up to 20 A. Higher loads may be switched with a second downstream power relay. The inverted input voltage is present on terminal 87a. Please refer to the chapter housing and base plates for additional housing options.
Number of pins | 5 |
---|---|
In-/Outputs (total) | 2 |
Inputs (total) | 1 |
Inputs (digital) | 1 |
Outputs (total) | 1 |
Relay outputs | 1 |
Switching current | NC 15 A / NO 15 A |
Serial Interface(s) | 0 |
---|
IP rating | up to IP6K8 |
---|---|
Housing material | PA66GF30 |
Dimensions | 30 × 30 × 40 mm |
Programming software | MRS Realizer |
---|
Temperature range | -40 to +85°C |
---|---|
Operating voltage | 14-32 V |
Blink frequency | 90 +/-30 pulses/min |
Current consumption | 2 ± 1 mA |
Order no. | Name |
---|---|
1.007.291.00 (100729100) |

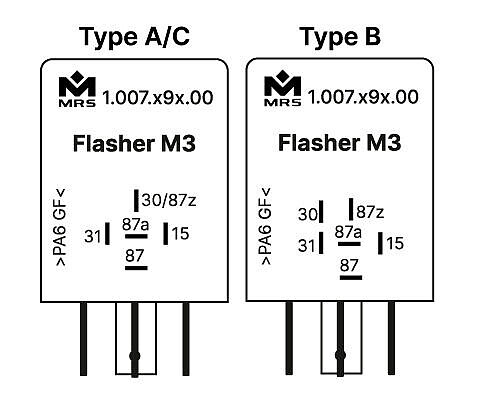

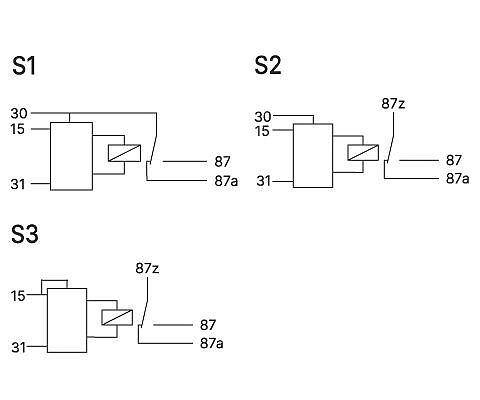

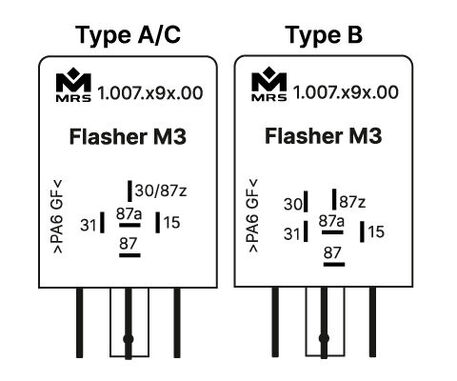

Type A, Connection S1
|
1.007.292.00 (100729200) |
Type B, Connection S2
|
1.007.293.00 (100729300) |
Type C, Connection S3
|
