Time Relay with Switch On Delay M3 24V

Time Relay M3 SW on Delay 24 V

Time relay with switch on delay M3 switches on the consumer after the specified delay time has elapsed. Please specify the desired delay time when ordering. All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is set at Terminal 15, the relay will pull on at the end of the specified time. If the voltage is removed at Terminal 15, the relay immediately drops off.

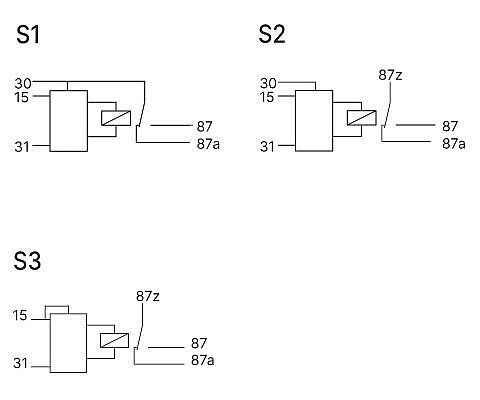

Circuit diagram S2 and S3: The contacts are separate from the control and can therefore be used in links. With the Variants S2 and S3, the relay contact is completely potential-free and thus capable of switching alternating voltage. Housing forms can be found in the section housing and basic body.

Downloads

Data sheet Time Relays M3 (English) Data sheet Time Relays M3 (German) Operating instruction Time Relays EU Declaration of Conformity

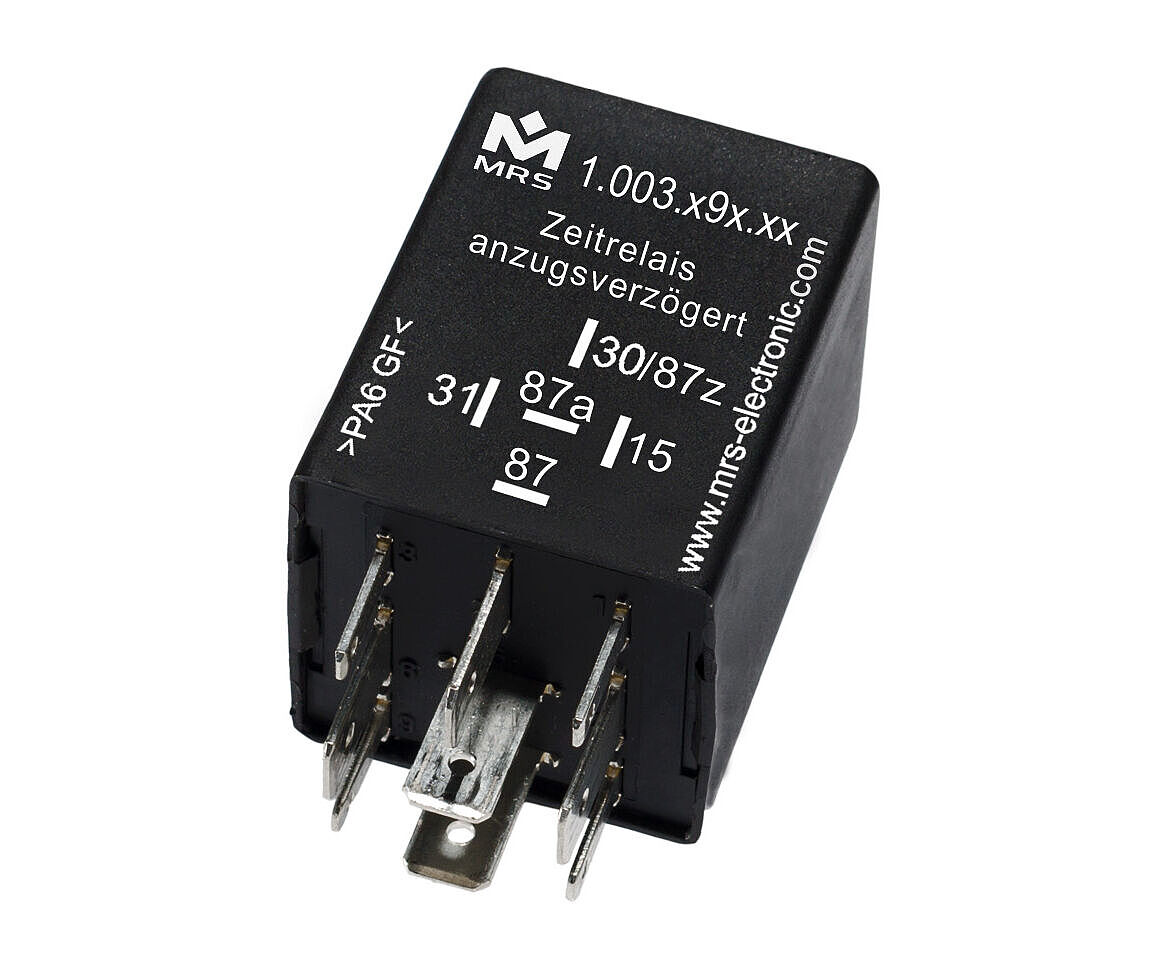

Time Relay M3 SW on 24 V

Connection diagram

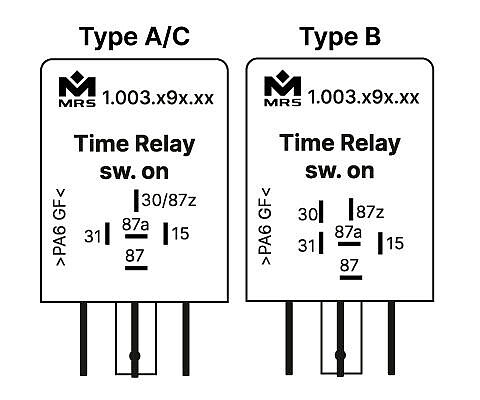

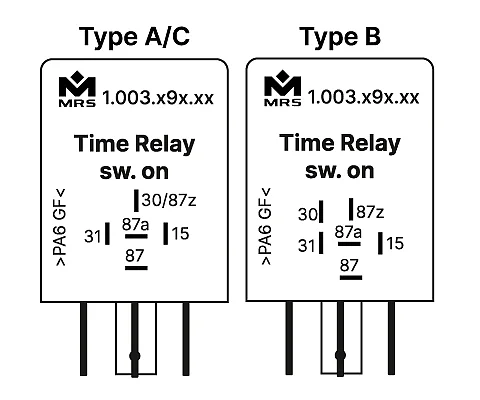

Design

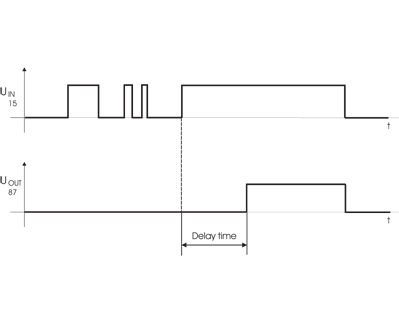

Function diagram

To our online shop

Technical details

Inputs and Outputs

Number of pins	5
In-/Outputs (total)	2
Inputs (total)	1
Inputs (digital)	1
Outputs (total)	1
Relay outputs	1
Switching current	NC 15 A / NO 15 A

Mechanical Properties

IP rating	up to IP6K8
Housing material	PA66GF30
Dimensions	30 × 30 × 40 mm
Switching cycles	100000

Programming

Programming software	MRS Realizer

General Information

Temperature range	-40 to +85°C
Operating voltage	14-32 V
Current consumption	2 ± 1 mA

Markings

Order options

Order no.	Name
1.003.294.xx (1003294xx)	Individual delay time, Type A, Connection S1
1.003.295.xx (1003295xx)	Individual delay time, Type B, Connection S2
1.003.293.xx (1003293xx)	Individual delay time, Type C, Connection S3
