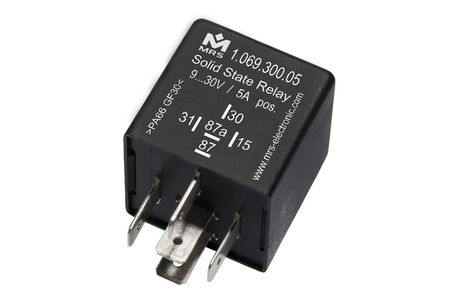

Solid State Relay SSR 5 A
go to order options (106930x05)
The MRS solid state relay has high capacitive and inductive peak current capacity and is perfectly suited for switching resistive and inductive loads. Compared to mechanical relays, the solid state relay has no moving contacts so it is maintenance and wear-free with a silent activation. The current feedback via the additional 5th pin offers useful diagnostic output. Due to the compact size and the connector, the relay is compatible with conventional ISO mini relays. The solid state relay can be ordered with positive or negative control.
Solid State Relay SSR 5 A
Technical details
Inputs and Outputs
| Number of pins | 5 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Outputs (digital) | 1 |
| Switching current | 5 A |
Mechanical Properties
| IP rating | up to IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 30 mm |
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | <20 μA |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.069.300.05 (106930005) |
Positive control
|
| 1.069.301.05 (106930105) |
Negative control
|
