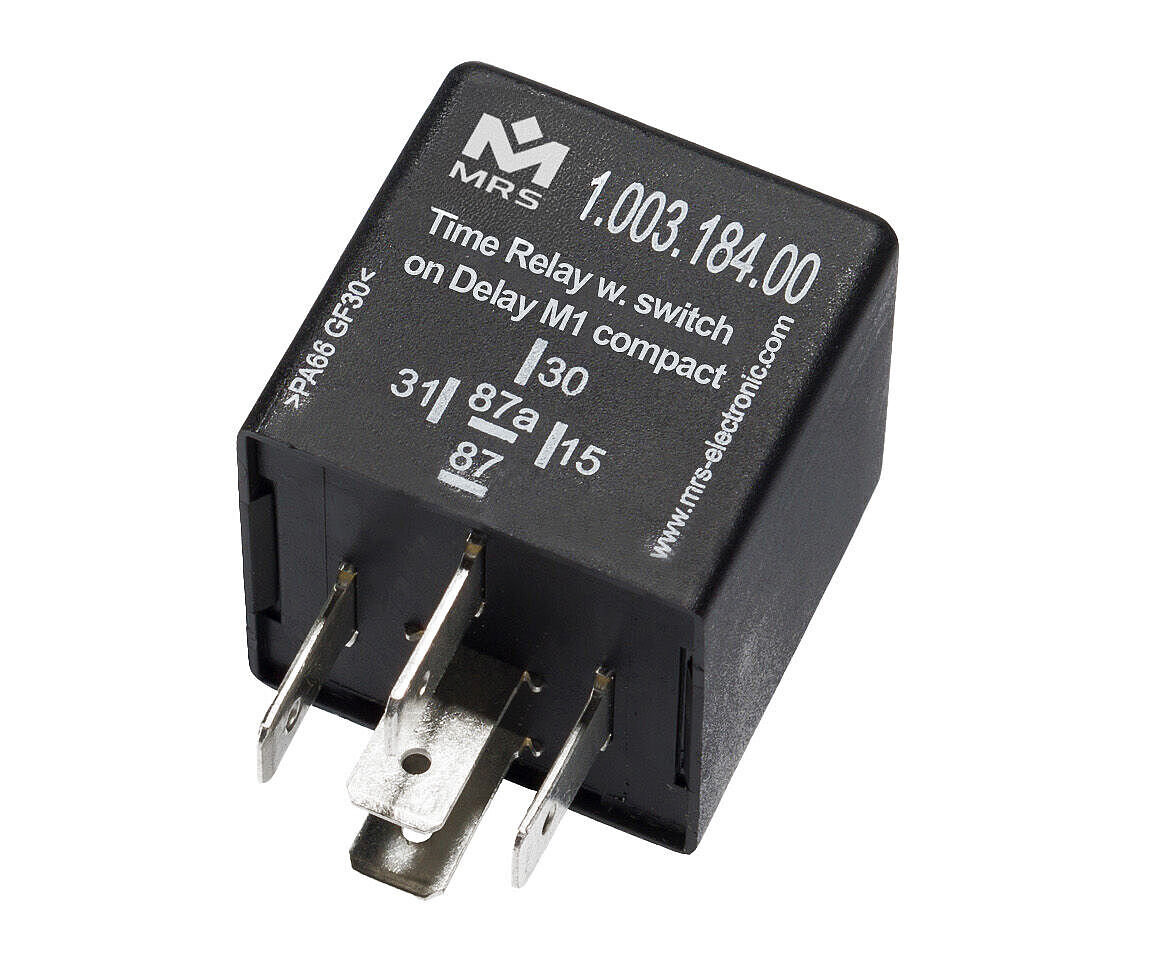

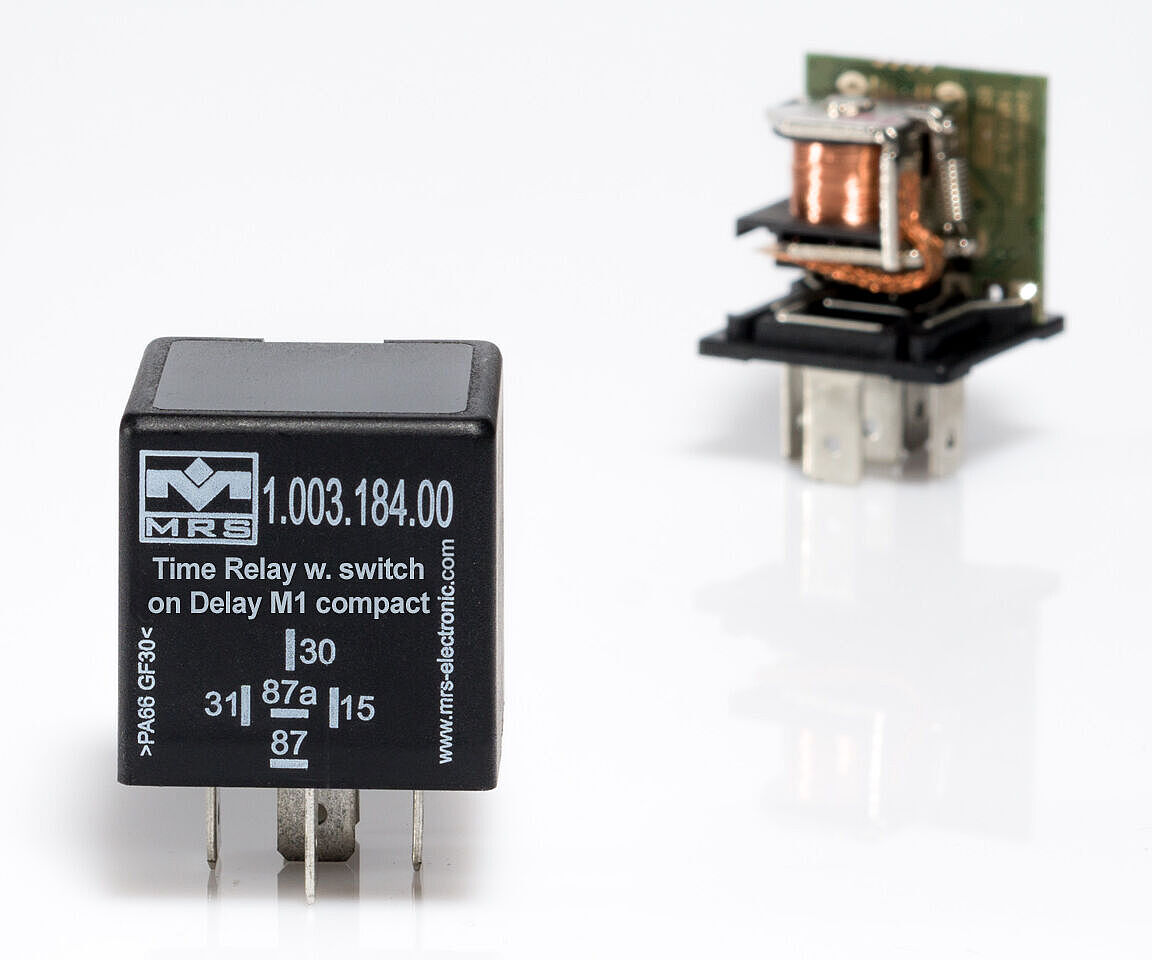

Time Relay M1 compact SW on Delay 12 V
go to order options (100318xxx)

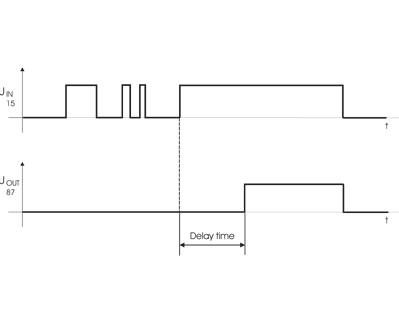

Time relays with switch on delay compact switch on the consumer after the specified delay time has elapsed. Please specify the desired delay time when ordering. All schematics: Operating voltage is applied to terminal 30/87z. If the voltage is set at Terminal 15, the relay will pull on at the end of the specified time. If the voltage is removed at Terminal 15, the relay immediately drops off.

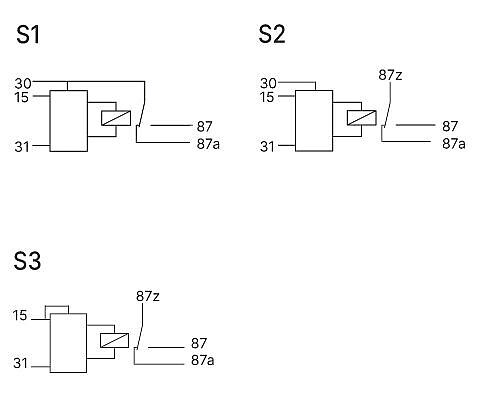

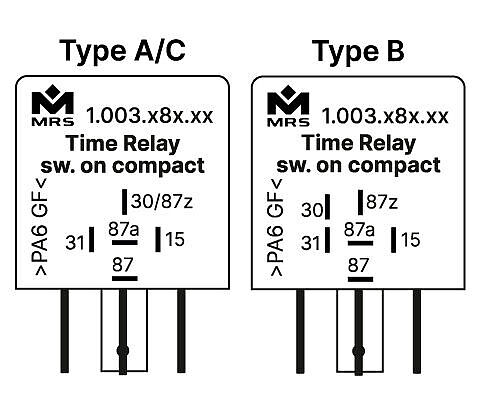

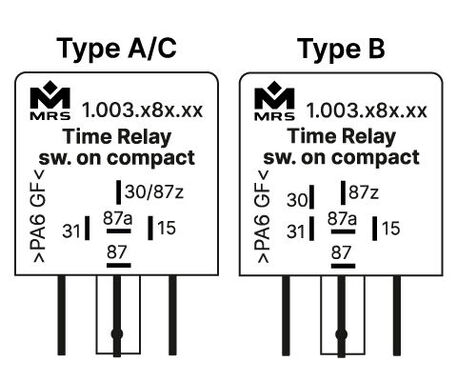

Circuit diagram S2 and S3: The contacts are separate from the control and can therefore be used in links. With the Variants S2 and S3, the relay contact is completely potential-free and thus capable of switching alternating voltage. Housing forms can be found in the section housing and basic body.
Technical details
Inputs and Outputs

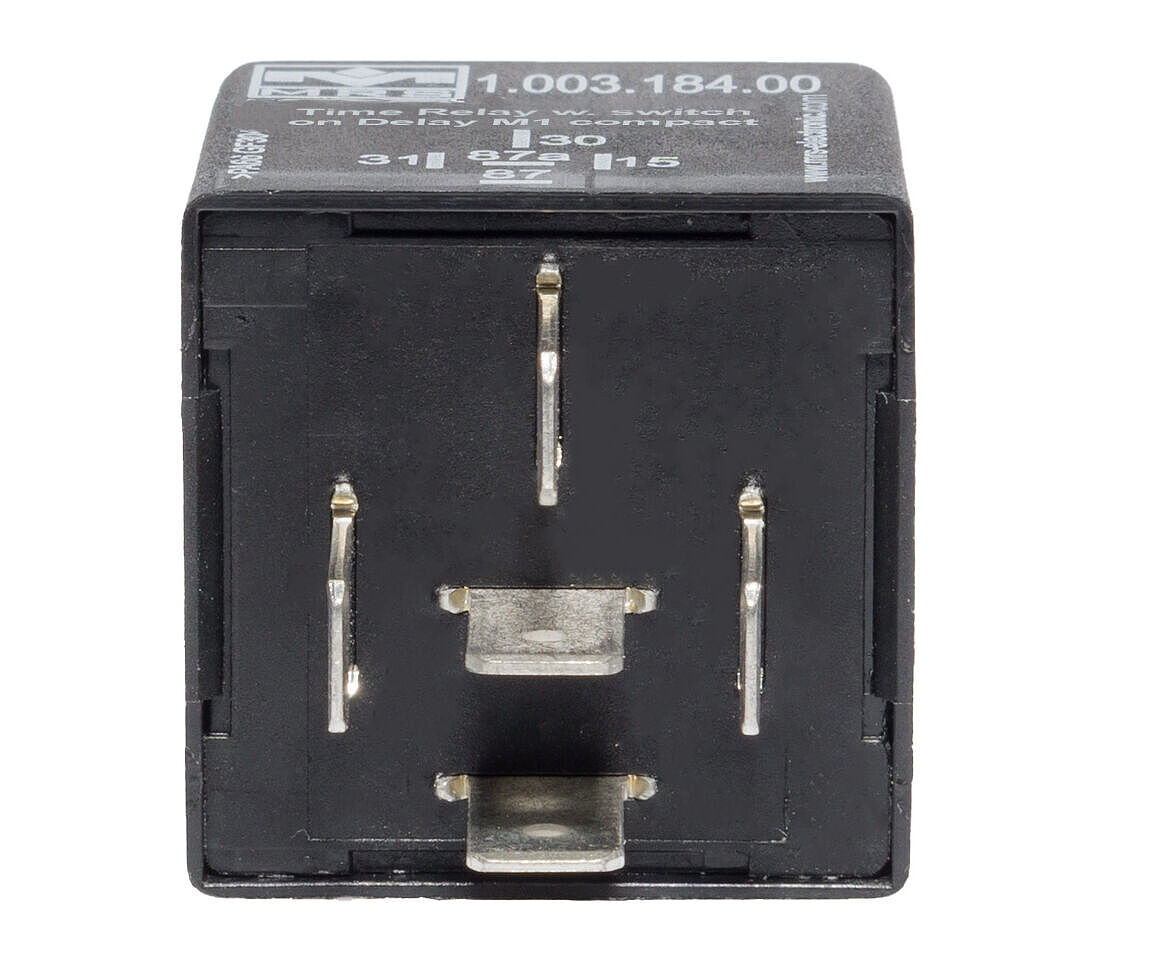

| Number of pins | 5 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | 20 A |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 30 mm |
| Switching cycles | 100000 |
Programming
| Programming software | MRS Realizer |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-16 V |
| Current consumption | 75 mA |
| Quiescent current (12V) | 1 mA |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.003.184.xx (1003184xx) |
Individual delay time, Type A, Connection S1
|
| 1.003.185.xx (1003185xx) |
Individual delay time, Type B, Connection S2
|
| 1.003.183.xx (1003183xx) |
Individual delay time, Type C, Connection S3
|
