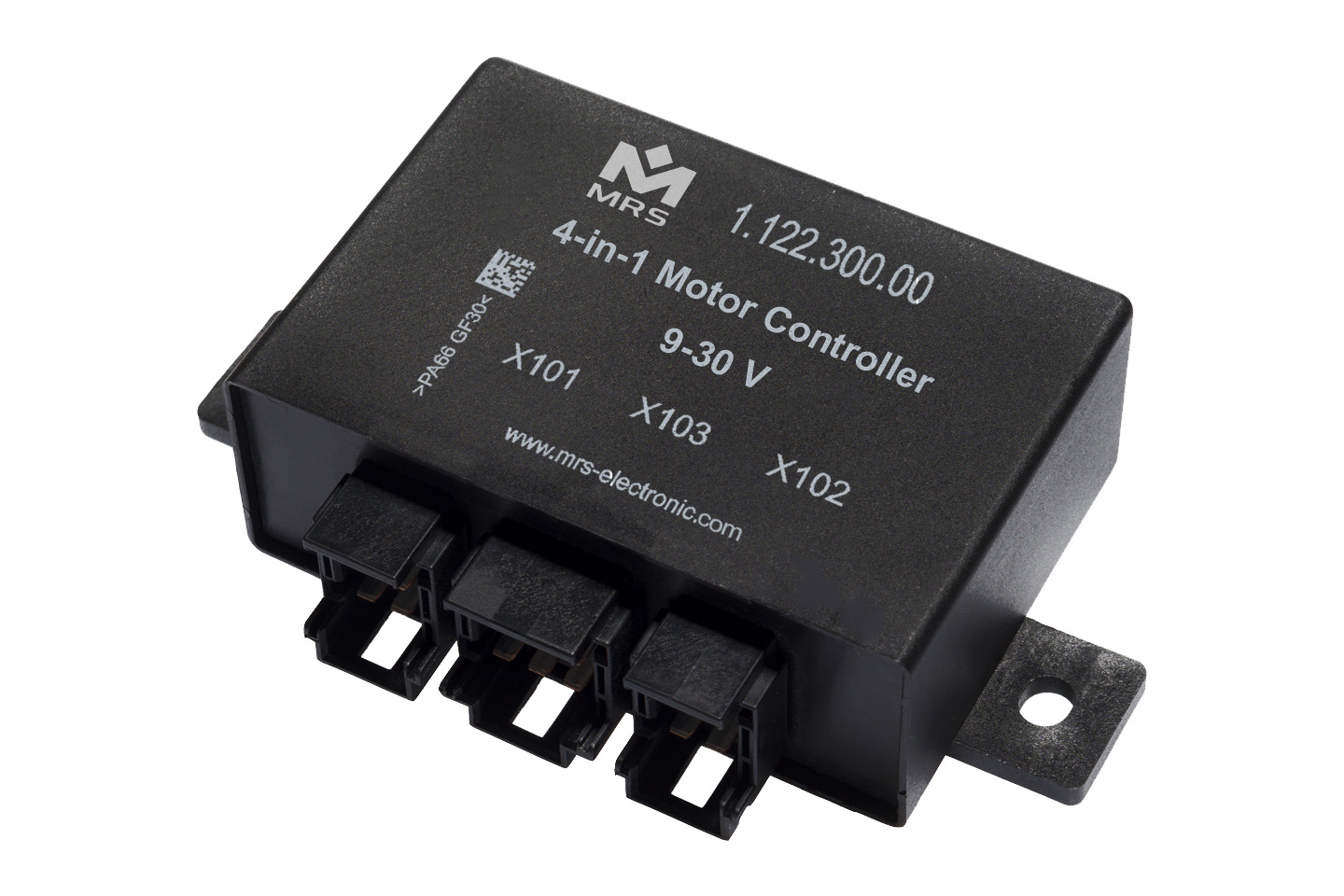

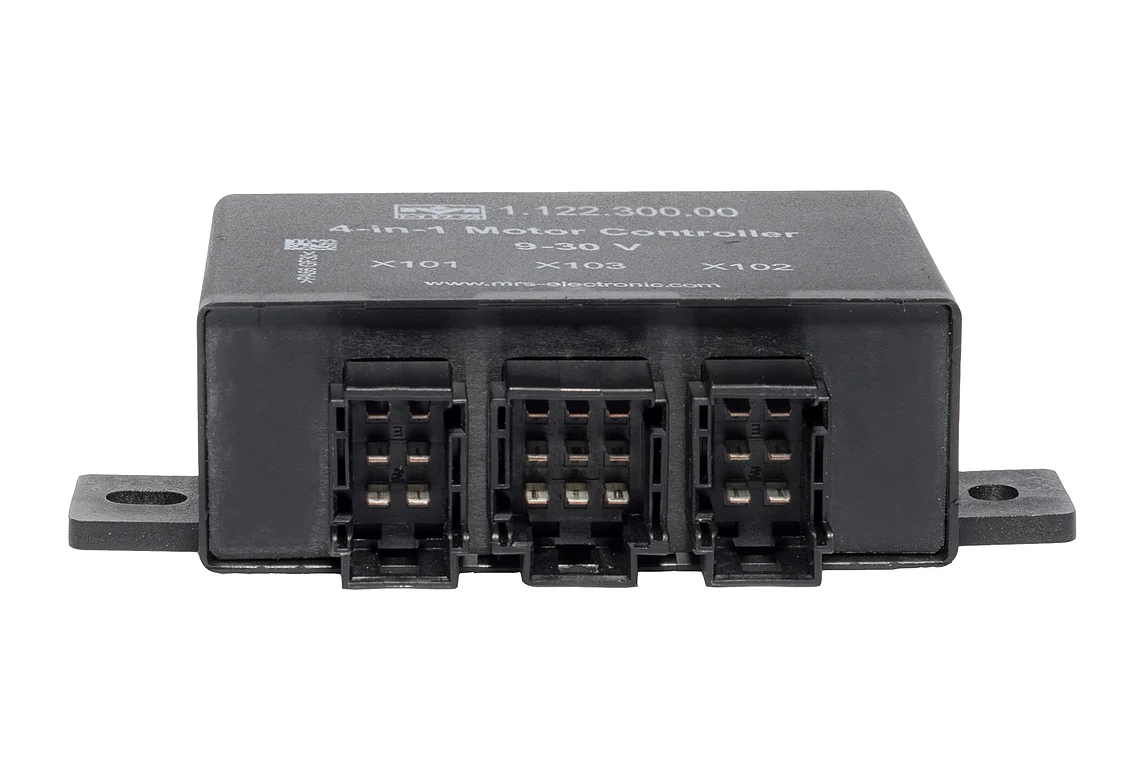

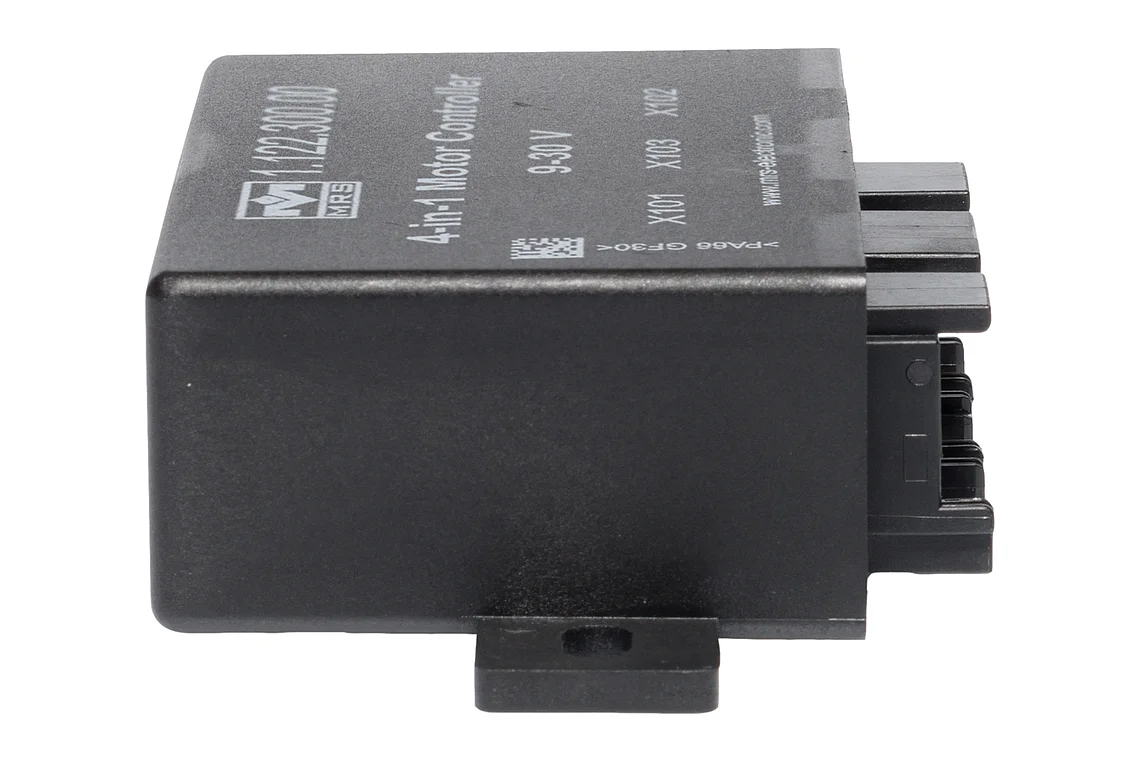

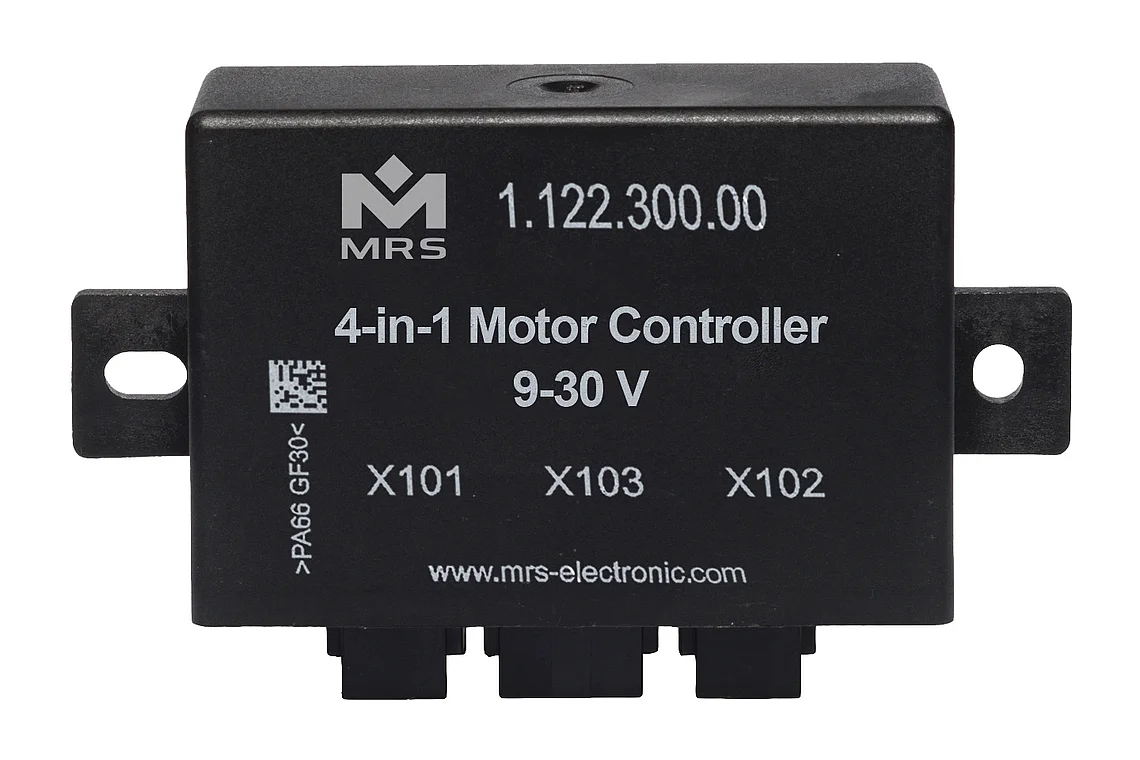

4-in-1 Motor Controller CAN
go to order options (1122x)
Motor control with 4x5 A motor outputs for DC motors and integrated current monitoring. In many outdoor electronics applications, there is an increasing demand for small motor control units that can drive several DC motors cost-effectively via different bus systems. That is the point, where the 4-in-1 Motor Controller CAN Comes into Action.
Technical details
Inputs and Outputs
| Number of pins | 21 |
|---|---|
| In-/Outputs (total) | 10 |
| Inputs (total) | 4 |
| Inputs (analog) | 4 |
| Outputs (total) | 6 |
| Outputs (PWM capable) | 2 |
| Fullbridge | 4 |
| Output type high side | 2 |
| Switching current | 5 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 95 × 65 × 35 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Current consumption | 39 |
| Quiescent current (12V) | 36 µA |
| Quiescent current (24V) | 148 µA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.122.300.00 (112230000) |
4-in-1 Motor Controller CAN
|
