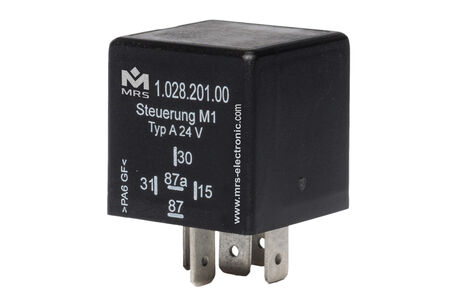

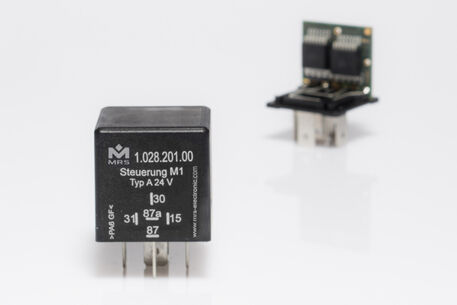

Controller M1 24 V
go to order options (10282x)
The M1 control with an operating voltage of 24 V is a small, powerful and cost-effective controller. In addition to the compact time relay, this compact version features a pulse relay, a step switching relay, a blinking sensor and other functions on request. The mentioned functions are stored by default and only have to be configured and parameterized. Of course, all standard functions can also be ordered preset directly from the factory.
Technical details
Inputs and Outputs

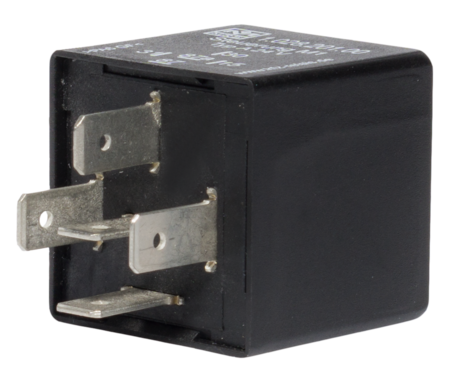

| Number of pins | 5 / 6 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
Mechanical Properties
| IP rating | IP53 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 30 mm |
Programming
| Programming software | MRS Realizer |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 14-32 V |
| Processor architecture | 16 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.028.201.00 (102820100) |

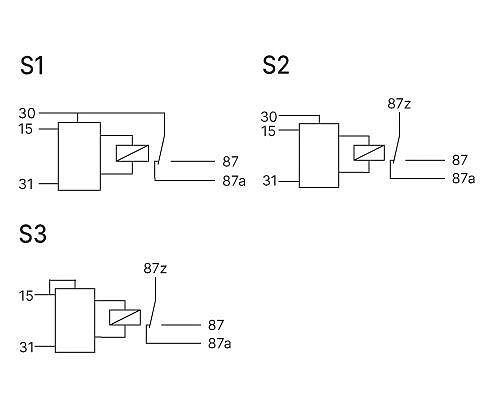

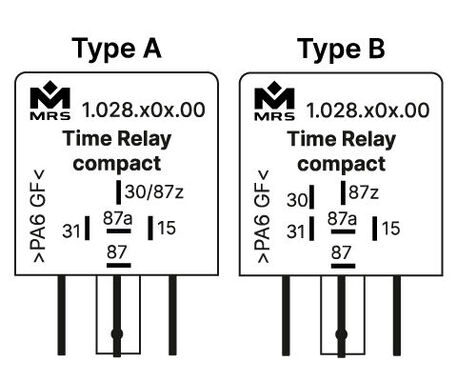

Type A, Connection S1
|
| 1.028.202.00 (102820200) |
Type B, Connection S2
|
| 1.028.203.00 (102820300) |
Type C, Connection S3
|
