Controller M3 12 V
go to order options (10361x)
The M3 controller is a powerful and cost-effective controller. In addition to the unprogrammed control M3 there is the control in the programmed versions: Pulse relay, step switch relay, blinker as well as other functions on request. The mentioned functions are stored by default and only have to be configured and parameterized. Of course, all standard functions can also be ordered preset directly from the factory.
Technical details
Inputs and Outputs
| Number of pins | 5 / 6 |
|---|---|
| In-/Outputs (total) | 2 |
| Inputs (total) | 1 |
| Inputs (digital) | 1 |
| Outputs (total) | 1 |
| Relay outputs | 1 |
| Switching current | NO 20 A / NC 15 A |
Mechanical Properties
| IP rating | up to IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Realizer |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-16 V |
| Current consumption | 2 mA + Load |
| Processor architecture | 16 bit |

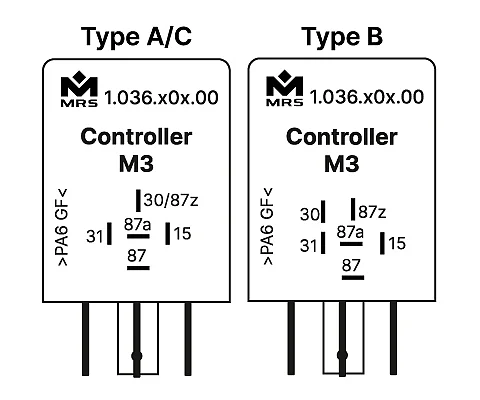

Markings
Order options
| Order no. | Name |
|---|---|
| 1.036.101.00 (103610100) |

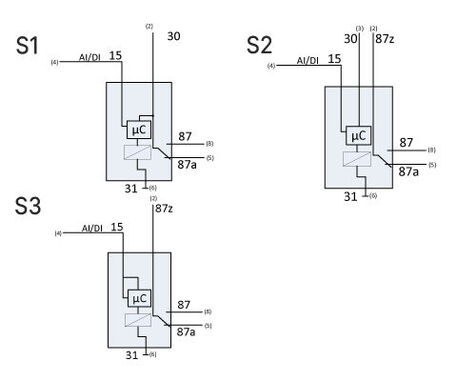

LB1 12V Type A, Connection S1
|
| 1.036.102.00 (103610200) |
LB3 12V Type B, Connection S2
|
| 1.036.103.00 (103610300) |
LB2 12V Type C, Connection S3
|
