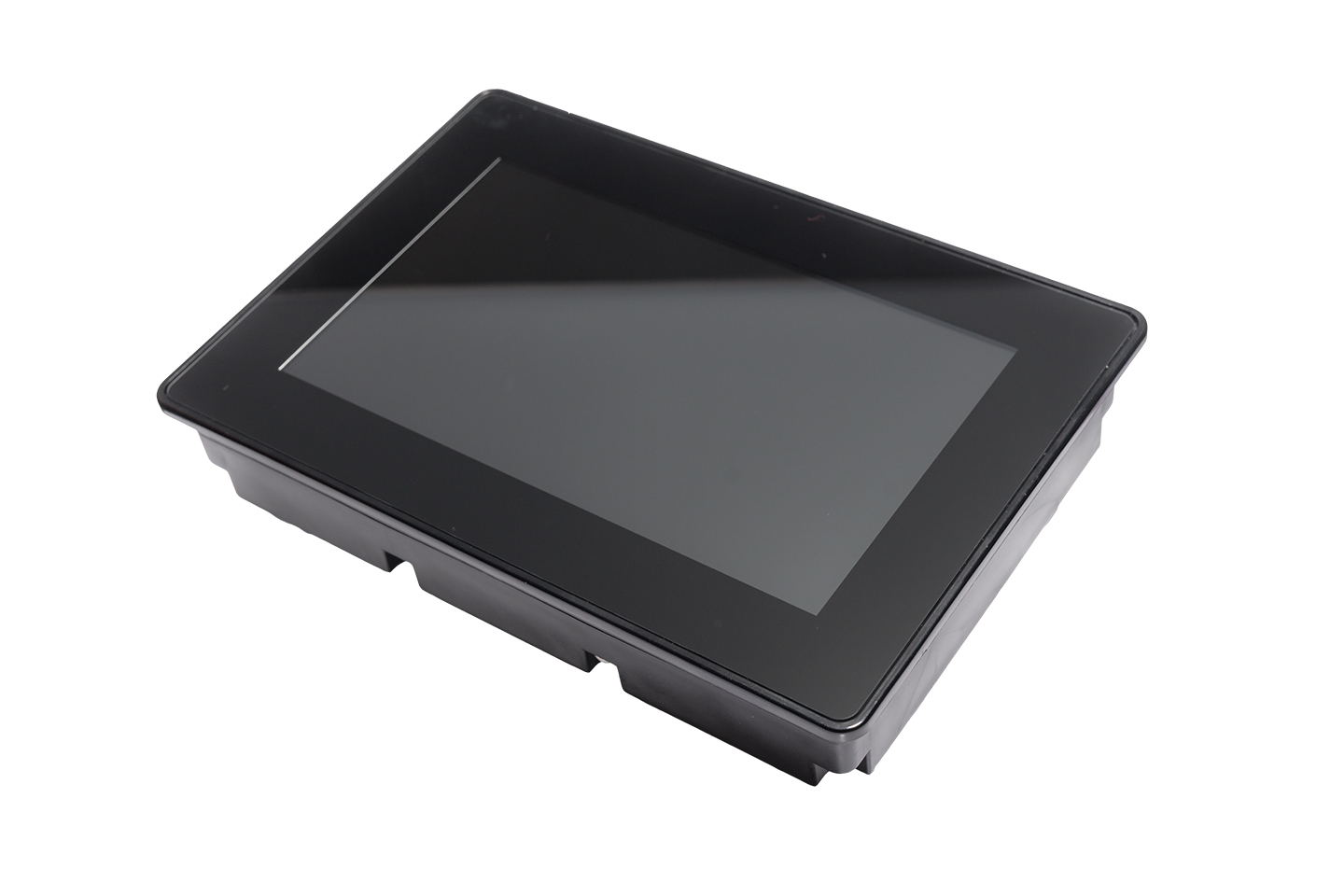

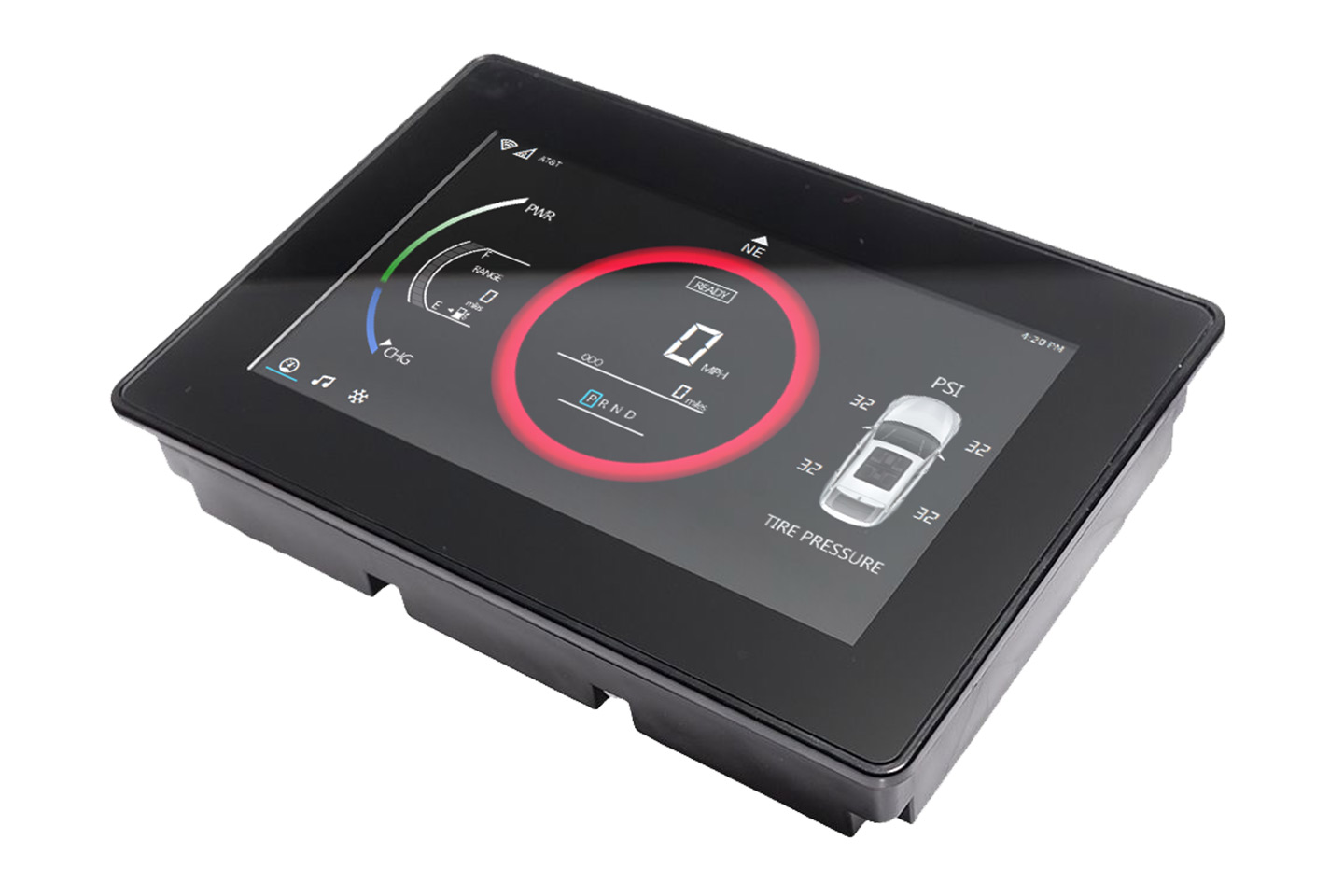

MConn 7 CAN Display

go to order options

MConn is part of our HMI systems with a powerful 32-bit quad-core ARM Cortex-A9 processor with 2D, 3D and vector graphics hardware acceleration. The display is running on Embedded Linux, application programming is done using Qt. Thanks to the multi-touch PCAP touch screen, you can use functions such as pinch-to-zoom, rotation, flick and much more.

The MConn is more than just a display. It is equipped with numerous wired and wireless interfaces, including CAN (2x), LIN, Ethernet, USB (2x), audio, camera inputs (4x), I/O (22), 3G/LTE, GPS, WiFi and Short Range Mesh Technology. As with all MRS connectivity products, the data can be read and evaluated via the MRS Cloud Connect.

Downloads
Technical details

Inputs and Outputs

Inputs (total) 18
Inputs (analog) 6
Inputs (digital) 12
Outputs (total) 4
Outputs (digital) 4
I/Os (total) 22
I/Os (Input analog) 6
I/Os (Input digital) 12

Interfaces

CAN interface(s) 2
LIN interface(s) 1

Mechanical Properties

IP rating IP54 / IP65
Housing material ABS
Dimensions 200.6 × 139.1 × 35 mm

Programming

Programming software Qt

General Information

Temperature range -20 to +70°C
Operating voltage 9-32 V DC
Processor architecture 32 bit

Markings

Order options
Order no.Name
1.145.020.0151
Basic
1.145.323.0151
A-Quad
