MConn Mini CAN Display

go to order options

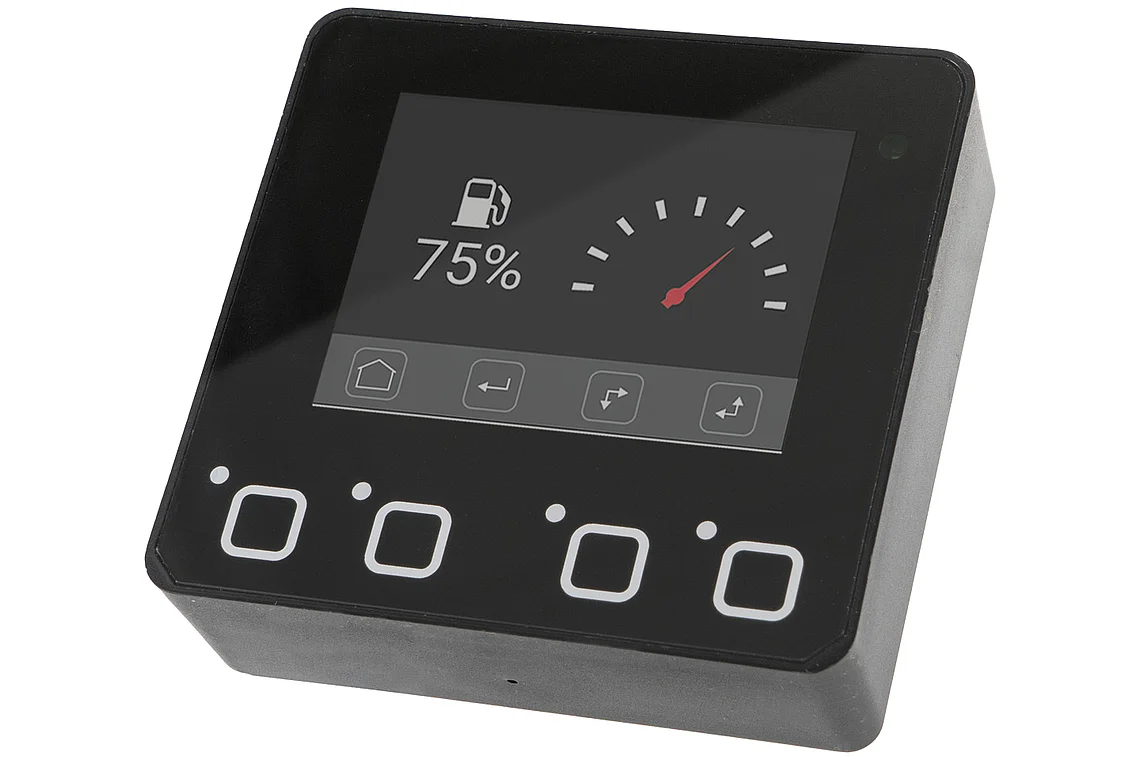

With its 2.4-inch color display, the MRS MConn Mini is the smallest of the MConn series. The product can be programmed according to your requirements and can be used for a wide range of applications, including as a display outside the driver's cab. You can freely define your desired functions for the 4 capacitive buttons.

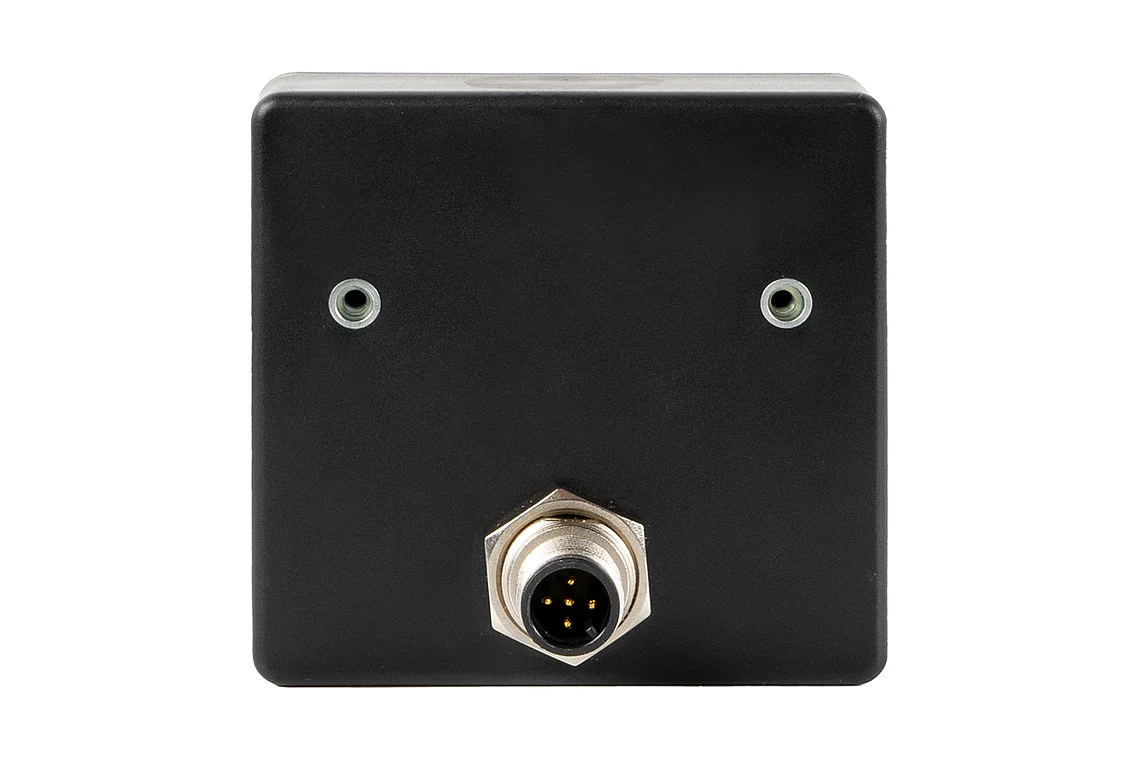

As a cost-efficient solution, the MConn Mini is generally used for the acquisition and display of sensor data on the display. Individual values can be written to the internal memory. With the aid of a light sensor, the display also measures the light values of the environment and thus regulates the background lighting. The MConn Mini is also available as a variant with a waterproof M12 connector and is thus even better protected against external influences.

Downloads
Technical details

Interfaces

CAN interface(s) 1
LIN interface(s) 1

Mechanical Properties

IP rating up to IP6K8
Housing material ABS housing
Dimensions 73.5 × 70 × 23 mm

Programming

Programming software MRS Applics Studio

General Information

Temperature range -20 to +60°C
Operating voltage 9-32 V
Blink frequency 0
Current consumption 87 mA
Quiescent current (12V) 0.6 mA
Quiescent current (24V) 0.7 mA
Processor architecture 32 bit

Markings

Order options
Order no.Name
1.157.300.0100
IP6K8, M12 connector, Wake-up possibility via CAN Bus
1.157.302.0120
LIN interface with Master/Slave, IP6K8, M12 connector, Wake-up possibility via CAN Bus or LIN Bus
