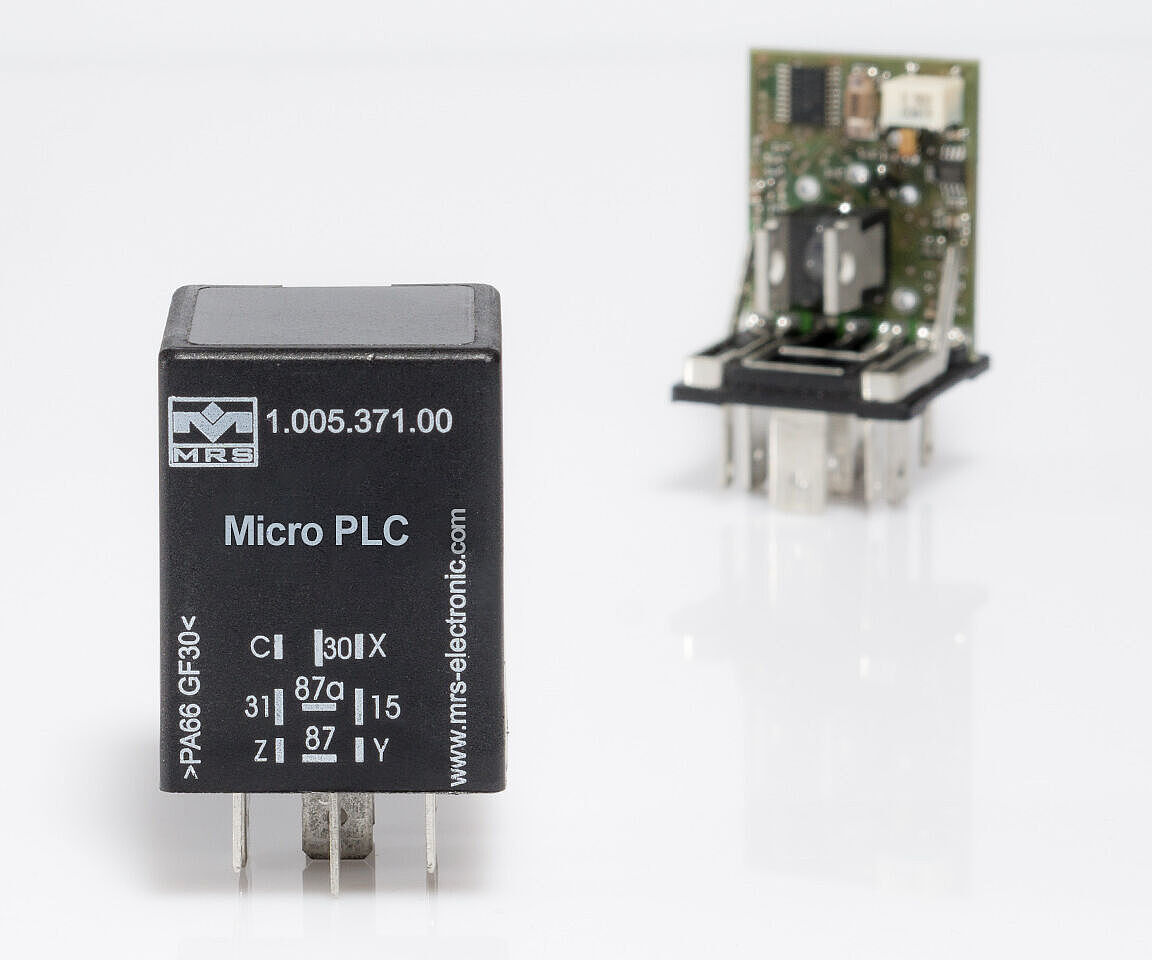

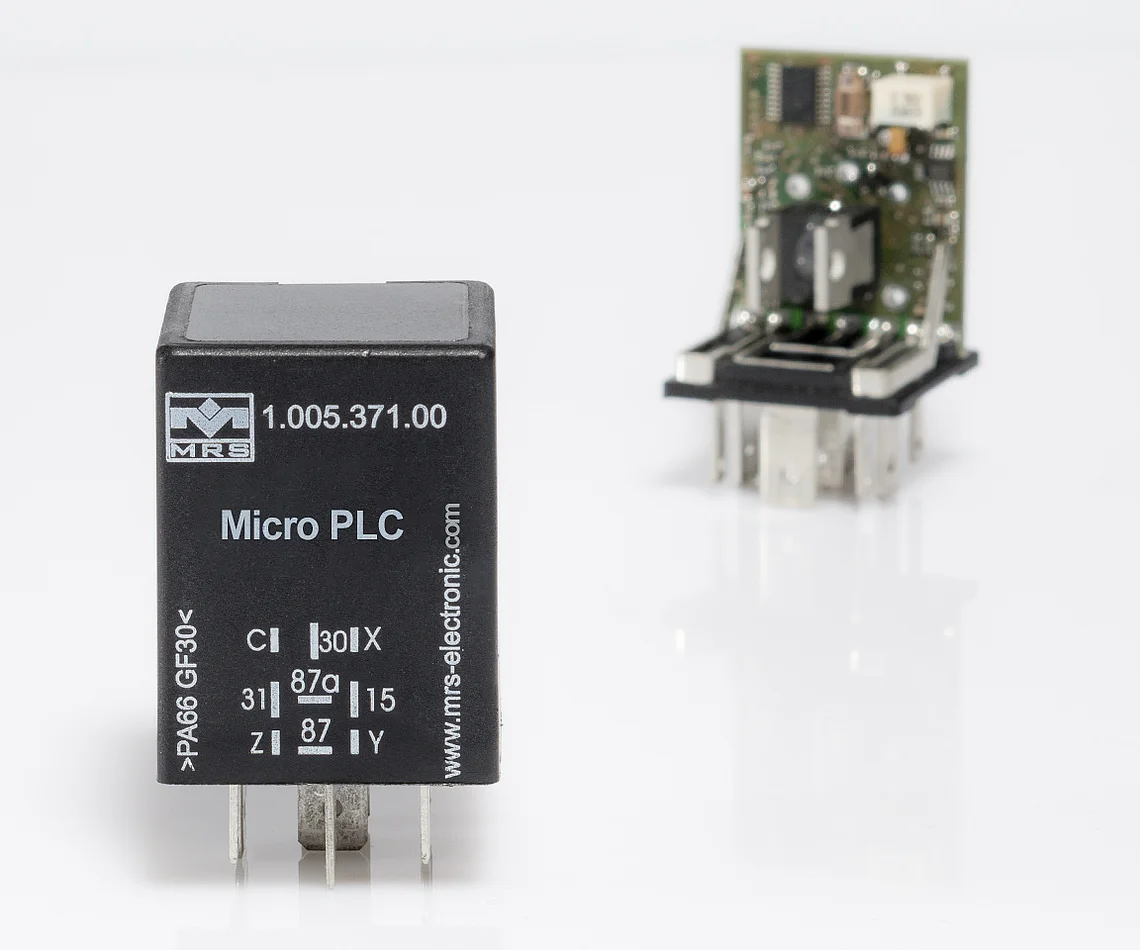

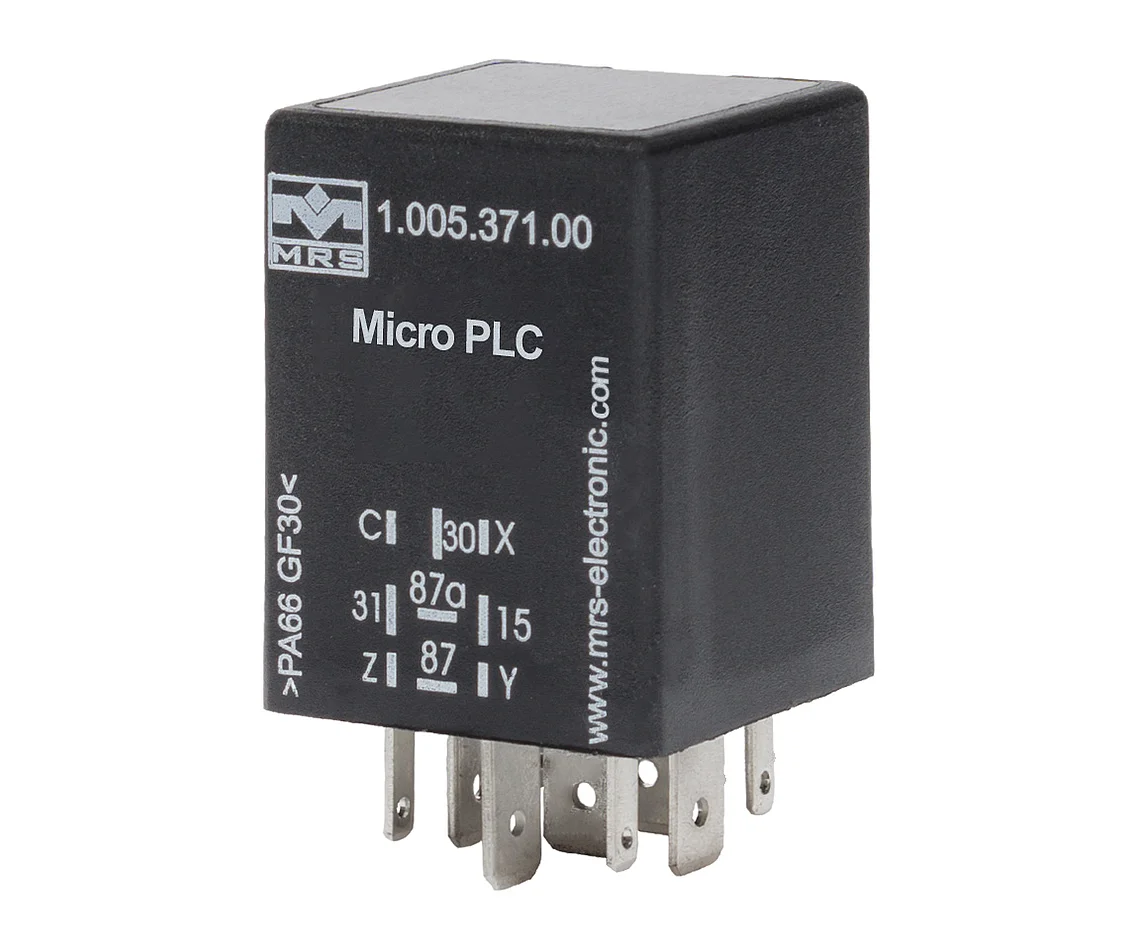

Micro PLC 9-30 V
go to order options (10053x)
The Micro PLC (MULTIBLO) is a small control for automotive applications. Free configuration, parameterization and programmability offer a wide range of application possibilities in the automotive sector.
Technical details
Inputs and Outputs
| Number of pins | 9 |
|---|---|
| In-/Outputs (total) | 7 |
| Inputs (total) | 4 |
| Inputs (analog) | 1 |
| Inputs (digital) | 3 |
| Outputs (total) | 3 |
| Outputs (digital) | 3 |
| Output type high side | 2 |
| Output type low side | 1 |
Mechanical Properties
| IP rating | up to IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Realizer |
|---|
General Information
| Temperature range | 40 to +85°C |
|---|---|
| Operating voltage | 9-30 V |
| Processor architecture | 16 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.005.355.00 (100535500) |

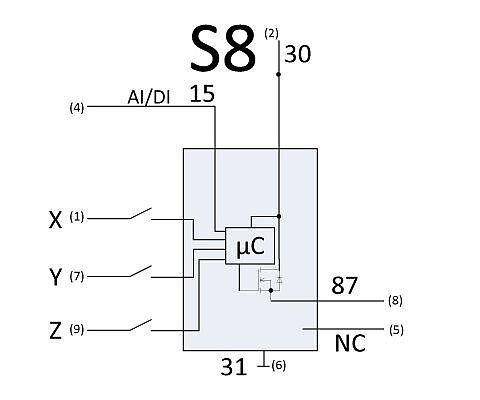

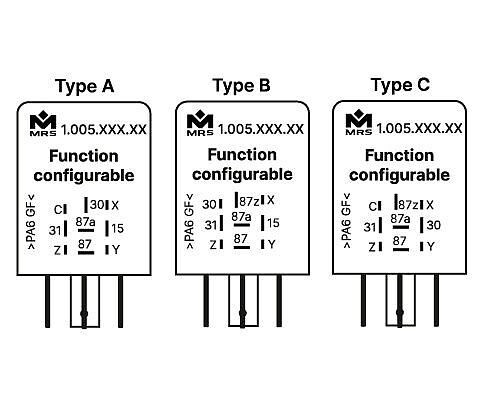

E1 EA1 1×442, 3 digital 1 analog input, 1 highside output, Type A, Connection S8
|
| 1.005.365.00 (100536500) |

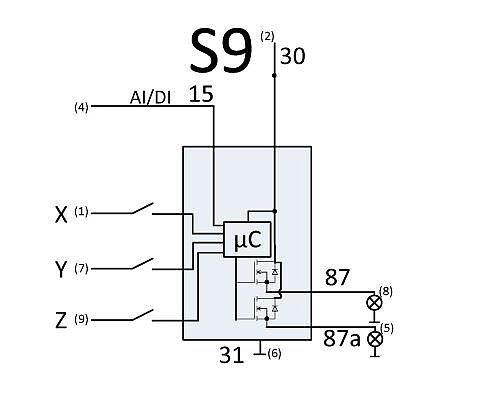

E1 EA1 1×442, 3 digital 1 analog input, 1 highside output, Type A, Connection S9
|
| 1.005.371.00 (100537100) |

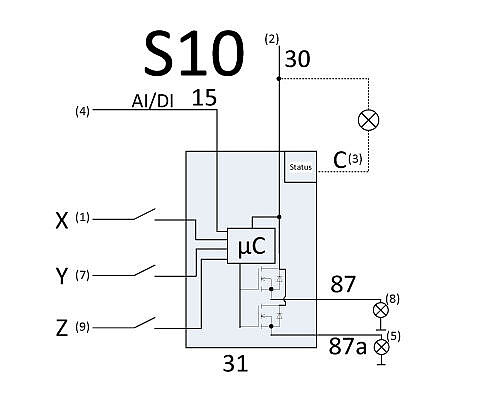

E1 EA1 2×442, 3 digital 1 analog input, 2 highside outputs, 1 open collector output, Type A, Connection S10
|
Accessories
