Motor Controller 5 A CAN 32-bit

The Motor Controller 5 A CAN 32-bit for controlling direct current motors (DC) is the successor to our Motor Controller 5 A CAN. Compared to the previous version, it offers you two multifunctional inputs and even more computing power thanks to the 32-bit processor.

The controller can be configured either as two half bridges or one full bridge with 5 A power. The integrated ramp functions allow you to start up the motors smoothly or slow them down slowly. Thanks to the free configurability and programmability using the MRS Applics Studio programming software and the compact design, a wide range of applications can be realised - even in a small installation space.

Downloads

Data sheet Motor Controller 5 A CAN 32-bit (German) Data sheet Motor Controller 5 A CAN 32-bit (English) Operating instruction Motor Controllers EU Declaration of Conformity

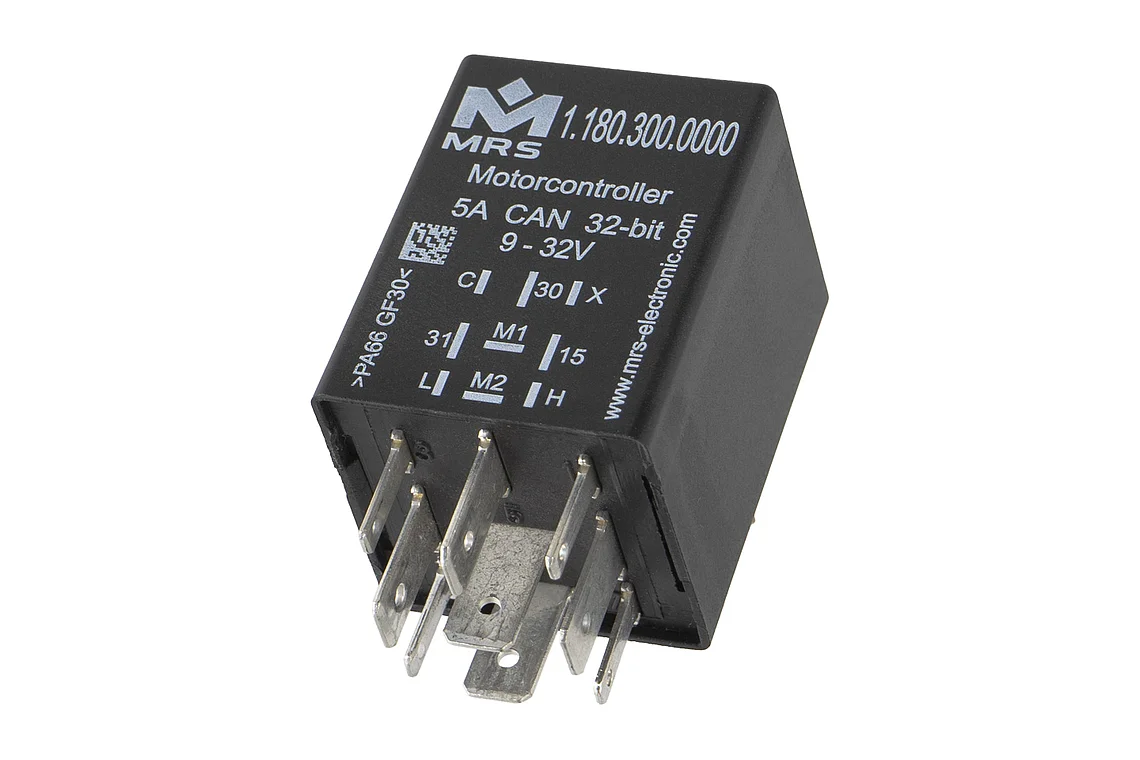

Motor Controller 5 A CAN 32-bit

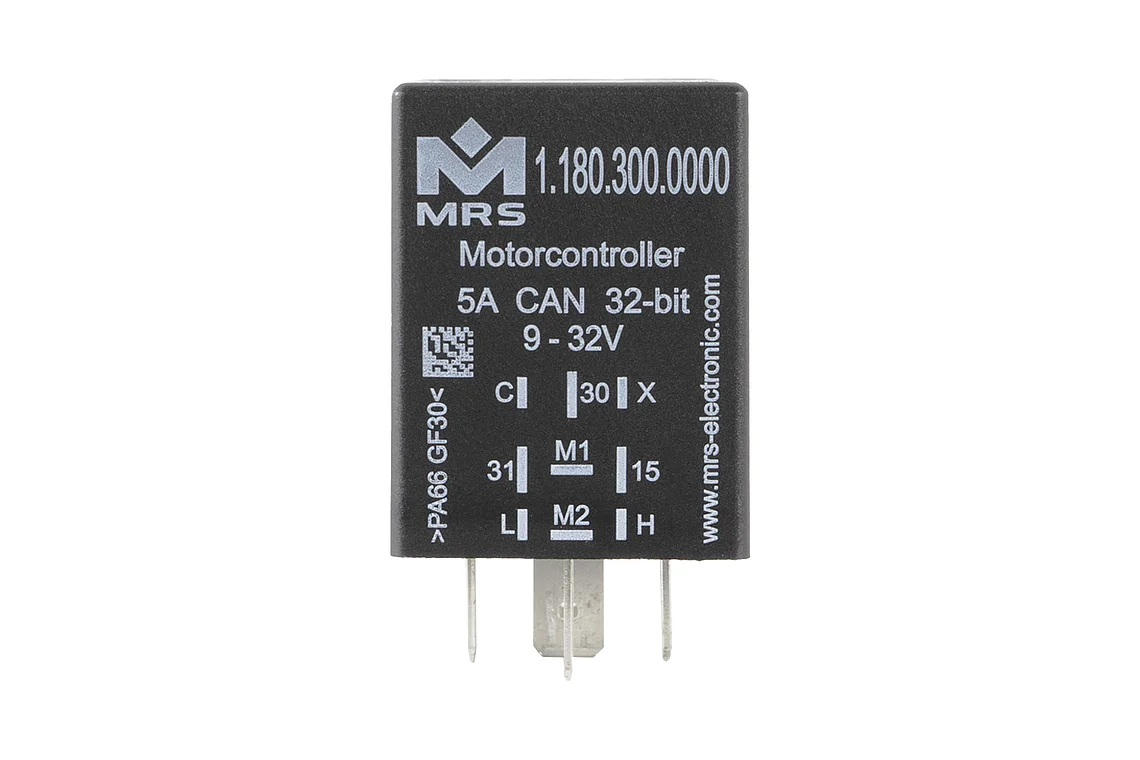

Front view

To our online shop

Technical details

Inputs and Outputs

Number of pins	9
In-/Outputs (total)	3
Inputs (total)	2
Inputs (analog)	2
Outputs (total)	1
Halfbridge	2
Fullbridge	1
Motor output	1

Interfaces

CAN interface(s)	1
CAN FD interface(s)	1

Mechanical Properties

IP rating	up to IP6K8
Housing material	Plastic material PA 66GF30
Dimensions	30 × 30 × 40 mm

Programming

Programming software	MRS Applics Studio

General Information

Temperature range	-40 °C to +85 °C
Operating voltage	6-32 V
Current consumption	60 mA @12 V and 24 V

Markings

Order options

Order no.	Name
1.180.300.0000 (11803000000)	Wake on KL15 and CAN Inhibit
1.180.300.0200 (11803000200)	Wake on KL15, without CAN Inhibit
1.180.300.0410 (11803000410)	Wake on KL30, steady on
