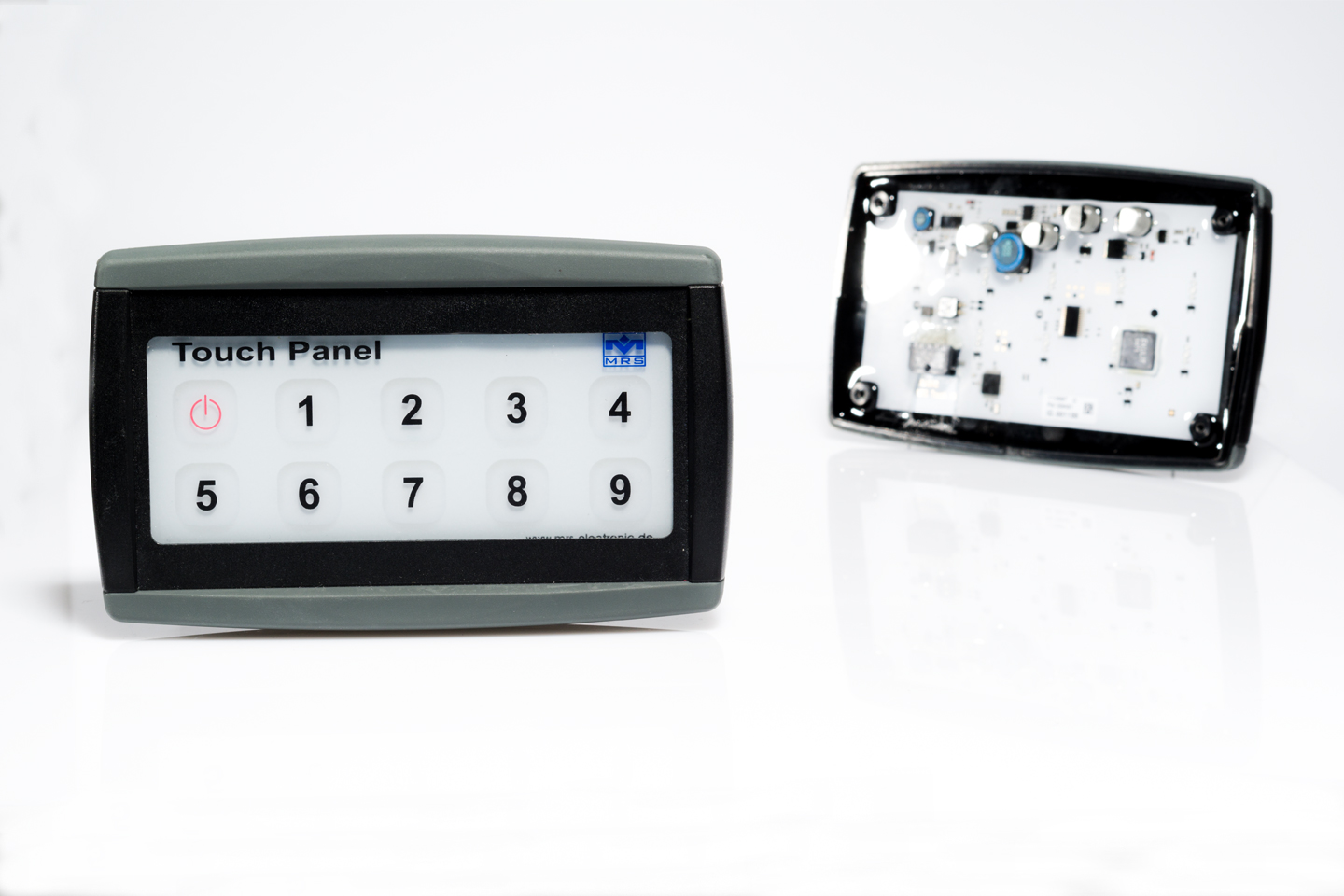

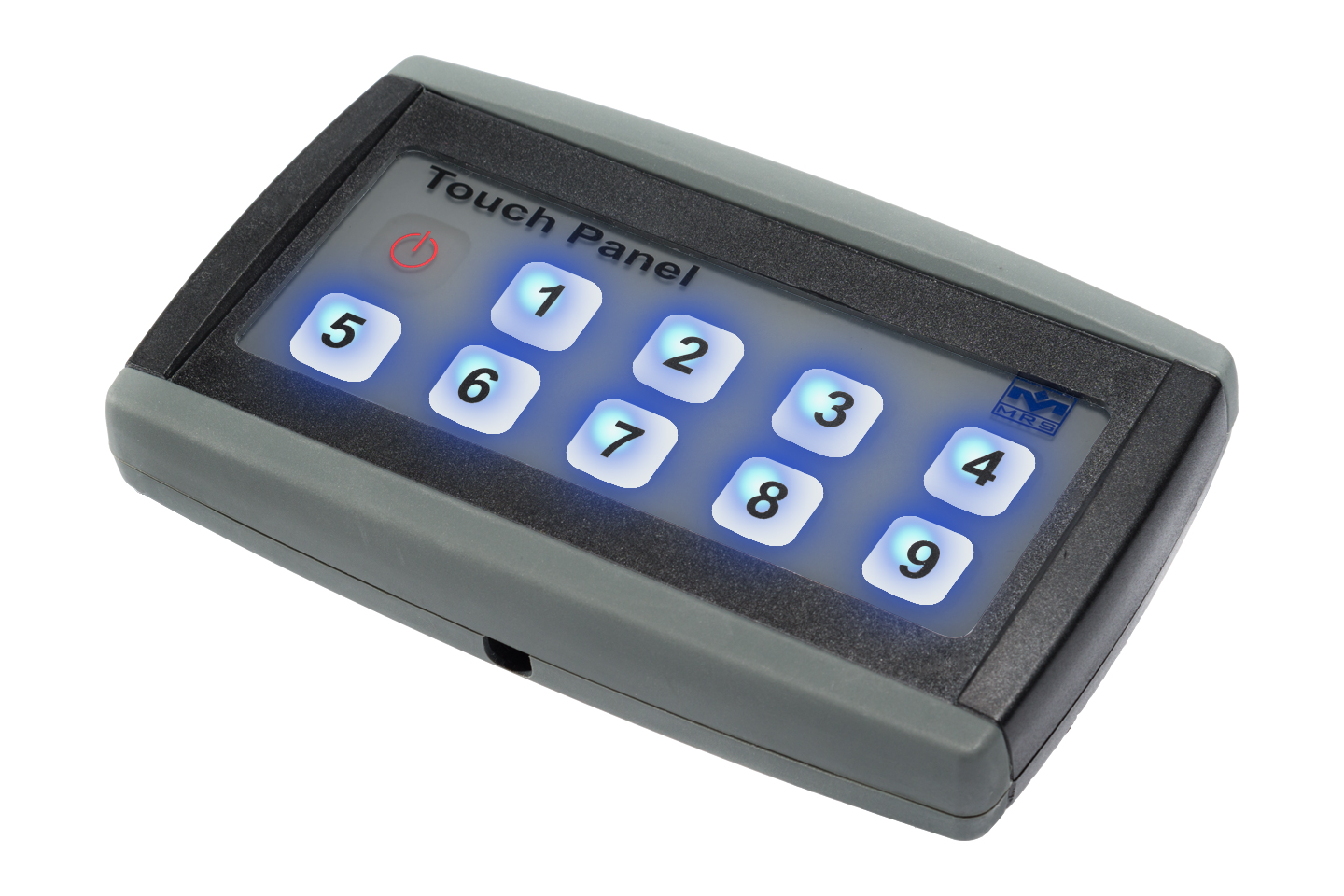

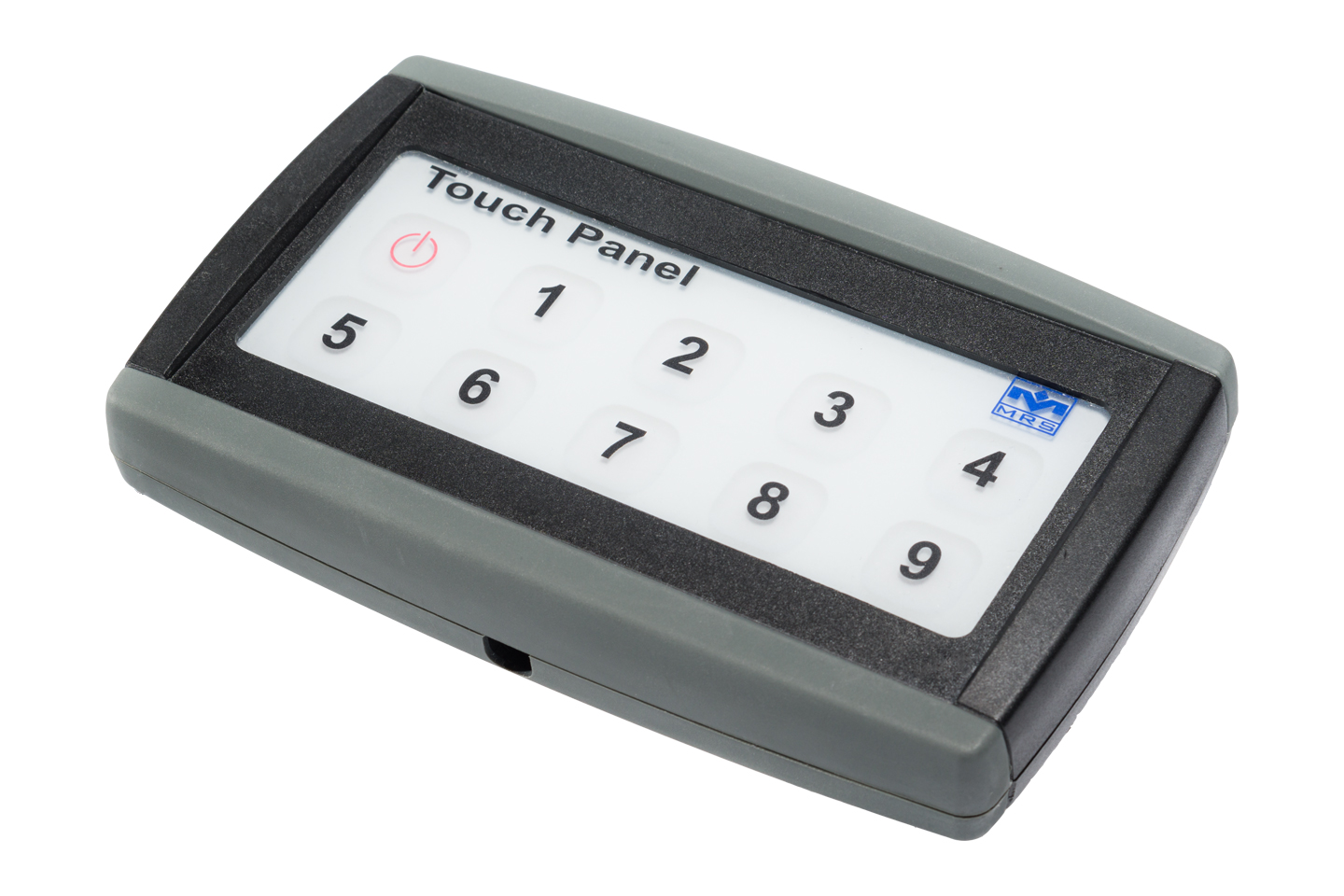

Touch Panel
1.046.x (1046x)
The touch panel is a user-friendly keyboard, specially designed for use in the commercial vehicle sector. Due to the glass front window, the module is resistant to liquids, oils, as well as dirt repellent and impact resistant.
Downloads
Technical details
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP54 |
|---|---|
| Housing material | Plastic housing with polycarbonate lens |
| Dimensions | 155 × 96 × 242 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-30 V |
| Processor architecture | 8 bit |
| Hardware capacitive keys | 10 |
