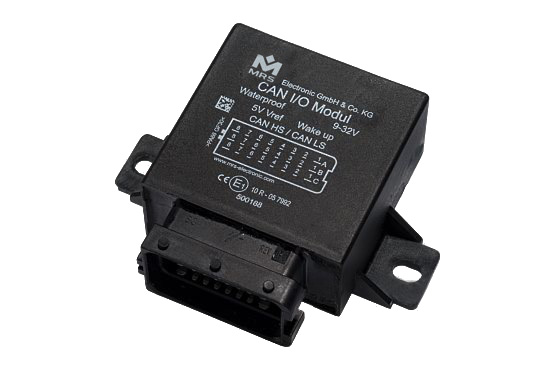

CAN I/O PLC Waterproof
go to order options (1053x)
The versatile and waterproof CAN I/O PLC Waterproof with 14 inputs and outputs in one compact design and an operating voltage range of 9 to 32 volts. It provides 8 I/Os that can be configured as inputs or outputs and 6 analog inputs. In addition, with the 5 volt reference output it provides the option to supply additional sensors with voltage. It is completely software compatible with CAN I/O PLC and is the alternative when IP68 protection is required. It is dust-proof and provides full protection against impact as well as protection against continuous submersion. The small module has an impressive variety of available configurations. The perfectly dimensioned housing is ideal for tight installation spaces.
The CAN Controller can be used either as an I/O module in a CAN network or as an independent and intelligent PLC. The most versatile product in MRS Electronic's portfolio is highly flexible and can be used in all conceivable applications in which control processes must be implemented. With the graphic programmability using MRS Developers Studio, you can even program your functions yourself, quickly and easily. For more complex applications, it can also be programmed using C code. This module is equipped with a CAN interface and can also be fitted with an RS232 or RS485 interface. This allows a data exchange (gateway) between CAN and the serial interface.
Technical details
Inputs and Outputs
| Number of pins | 24 |
|---|---|
| In-/Outputs (total) | 14 |
| Inputs (total) | 6 |
| Inputs (analog) | 6 |
| I/Os (total) | 8 |
| I/Os (Input analog) | 6 |
| I/Os (Input digital) | 2 |
| I/O (Output PWM capable) | 6 |
| I/O (Output digital) | 2 |
| Output type high side | 8 |
| Switching current | 3 A @ 85°C |
Interfaces
| CAN interface(s) | 1 |
|---|---|
| Serial Interface(s) | 1 |
Mechanical Properties
| IP rating | IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 60 × 60 × 30 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 9-32 V |
| Quiescent current (12V) | 8.5 µA |
| Quiescent current (24V) | 97 µA |
| Vref current limit | 500 mA |
| Processor architecture | 8 bit |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.053.300.0000 (10533000000) |
Basic
|
| 1.053.302.0000 (10533020000) |
RPM + 5V Ref
|
| 1.053.302.1200 (10533021200) |
RPM+5V / Perm.ON
|
| 1.053.303.0000 (10533030000) |
With current inputs
|
| 1.053.304.1200 (10533041200) |
RPM+5V Ref, 2x Pull-Up inputs
|
| 1.053.305.0000 (10533050000) |
RPM+8 V
|
| 1.053.306.0000 (10533060000) |
Pull-Up
|
| 1.053P.300.0000 (1053P3000000) |
CANopen (CiA401)
|
| 1.053.310.0000 (10533100000) |
RS485
|
| 1.053.320.1000 (10533201000) |
RS232
|
