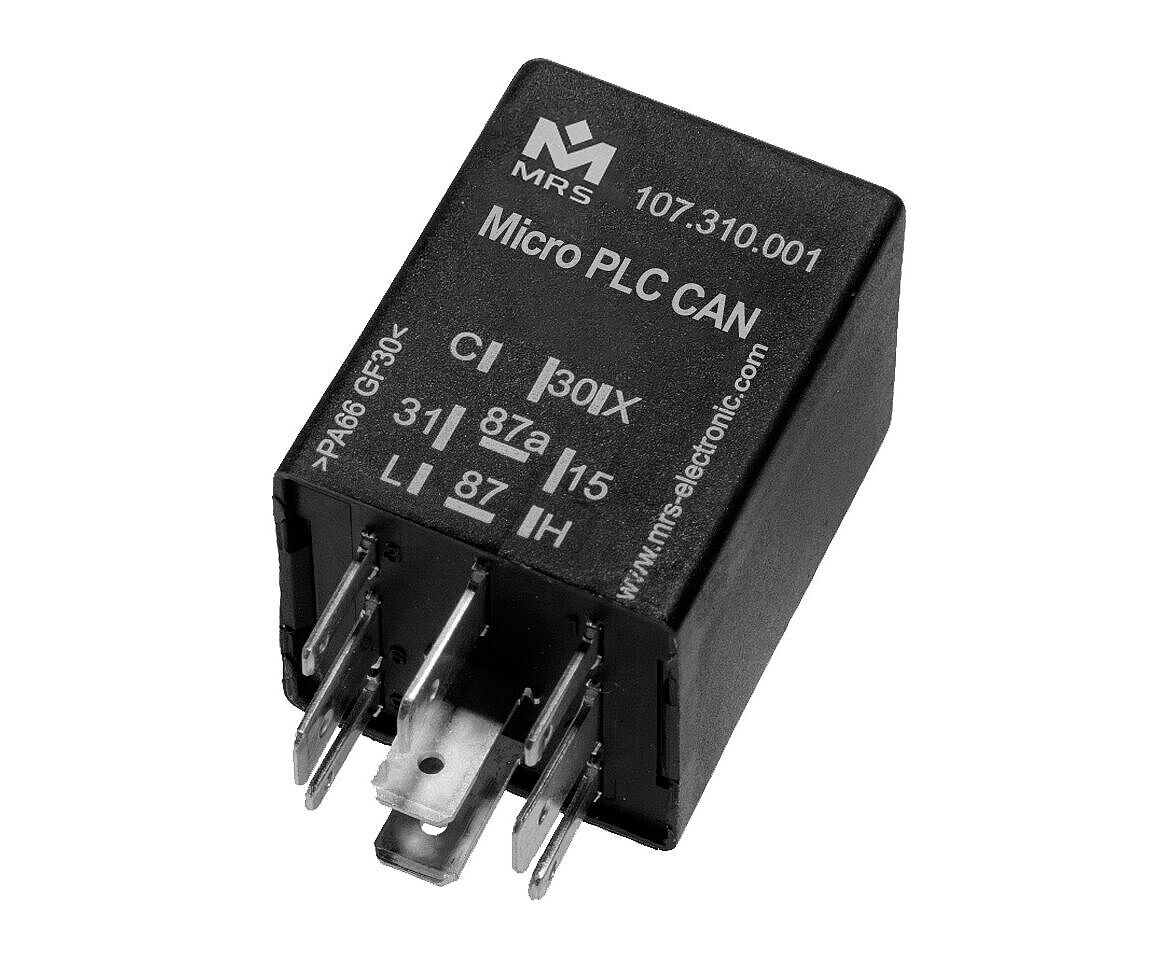

Micro PLC CAN 12 V
go to order options (11071x)
The Micro PLC CAN is a small control system for automotive applications. Free configuration and programmability offer a wide range of applications in the automotive sector. Control and readout are done via the CAN bus (ISO 11898-2). In addition, the controller has a Freescale processor with Flash technology (option of multiple programming). There are 2 analogue inputs and/or 1 analogue input/1 digital output and 2 overload-proof Highside power outputs (alternative relay output) available.
Complex applications can be realized in C. The functions as well as the measured values are controllable and readable via the CAN bus. Programming is possible using the software MRS Developers Studio, graphically with CANgraph. The use of the powerful processor makes the Micro PLC CANopen and SAE J1939 capable. With the Micro PLC CAN Relay 32-bit, there is also a pin-compatible product for the Micro PLC CAN 12 V with a 32-bit processor and therefore even more computing power.
Technical details
Inputs and Outputs
| Number of pins | 9 |
|---|---|
| In-/Outputs (total) | 4 |
| Inputs (total) | 2 |
| Inputs (analog) | 2 |
| Outputs (total) | 2 |
| Outputs (digital) | 1 |
| Relay outputs | 1 |
| Output type low side | 1 |
| Switching current | NO 15 A / NC 10 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | up to IP6K8 |
|---|---|
| Housing material | PA66GF30 |
| Dimensions | 30 × 30 × 40 mm |
Programming
| Programming software | MRS Developers Studio |
|---|
General Information
| Temperature range | -40 to +85°C |
|---|---|
| Operating voltage | 12 V |
| Current consumption | 27 mA |
| Processor architecture | 8 bit |

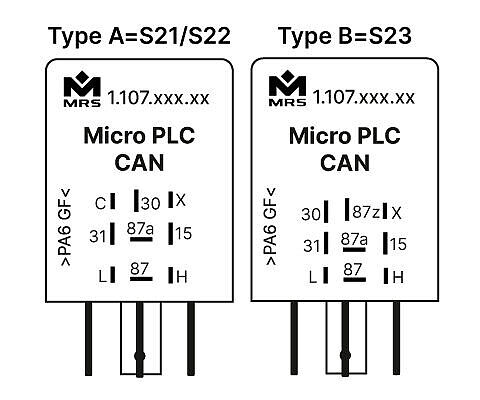

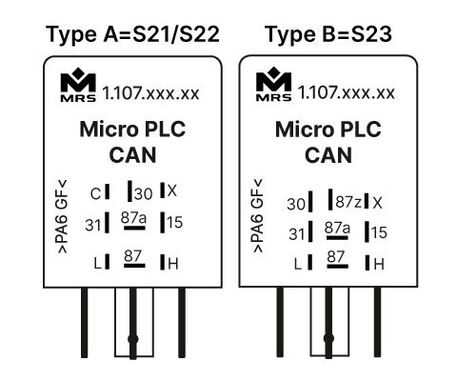

Markings
Order options
| Order no. | Name |
|---|---|
| 1.107.110.00 (110711000) |
Changeover switch, Type A, Connection S22
|
| 1.107.110.01 (110711001) |
With Frequency Input, Type A, Connection S22
|
| 1.107.110.03 (110711003) |
With Potentiometer, Type A, Connection S22
|
| 1.107.110.0A (11071100A) |
Pin 4: 0-33,6 V, Type A, Connection S22
|
| 1.107.112.00 (110711200) |
Changeover switch, Type B, Connection S23
|
| 1.107.114.00 (110711400) |
Voltage monitoring KL15, Type B, Connection S23
|
