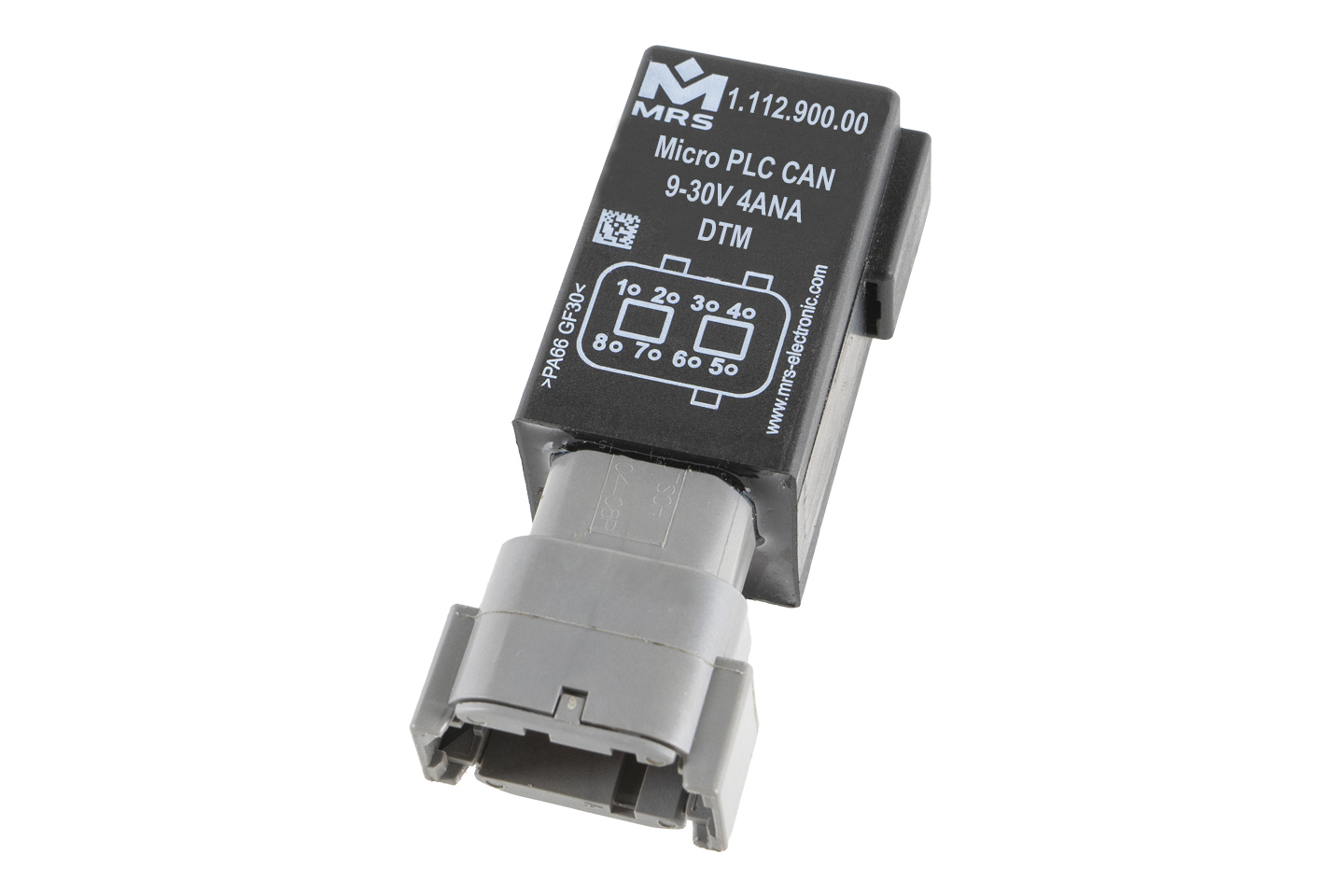

Micro PLC CAN 4 ANA DTM

The Micro PLC CAN 4 ANA DTM offers many possible applications with its 5 inputs and outputs. One analog input and four I/Os, the function of which can be individually defined. These inputs/outputs can be used as four analog outputs for current (0-24mA) and voltages (0-10V). Or you can configure them as four analog inputs.

In combination with the DEUTSCH DTM connector, it offers you robust quality and is ideally suited for extreme environmental conditions.

Downloads

Data sheet Micro PLC CAN 4 ANA DTM (German) Data sheet Micro PLC CAN 4 ANA DTM (English) DEUTSCH DTM product flyer EU Declaration of Conformity

Micro PLC CAN 4 ANA DTM

To our online shop

Technical details

Inputs and Outputs

Number of pins	8
In-/Outputs (total)	4
Inputs (total)	4
I/Os (total)	4
I/Os (Input analog)	4
Output type high side	4
Switching current	25 mA

Interfaces

CAN interface(s)	1

Mechanical Properties

IP rating	IP6K8
Housing material	PA66GF30

Programming

Programming software	MRS Developers Studio

General Information

Temperature range	-40 °C to +85 °C
Operating voltage	9-32 V
Current consumption	35 mA
Quiescent current (12V)	20 µA
Quiescent current (24V)	20 µA
Processor architecture	8 bit
