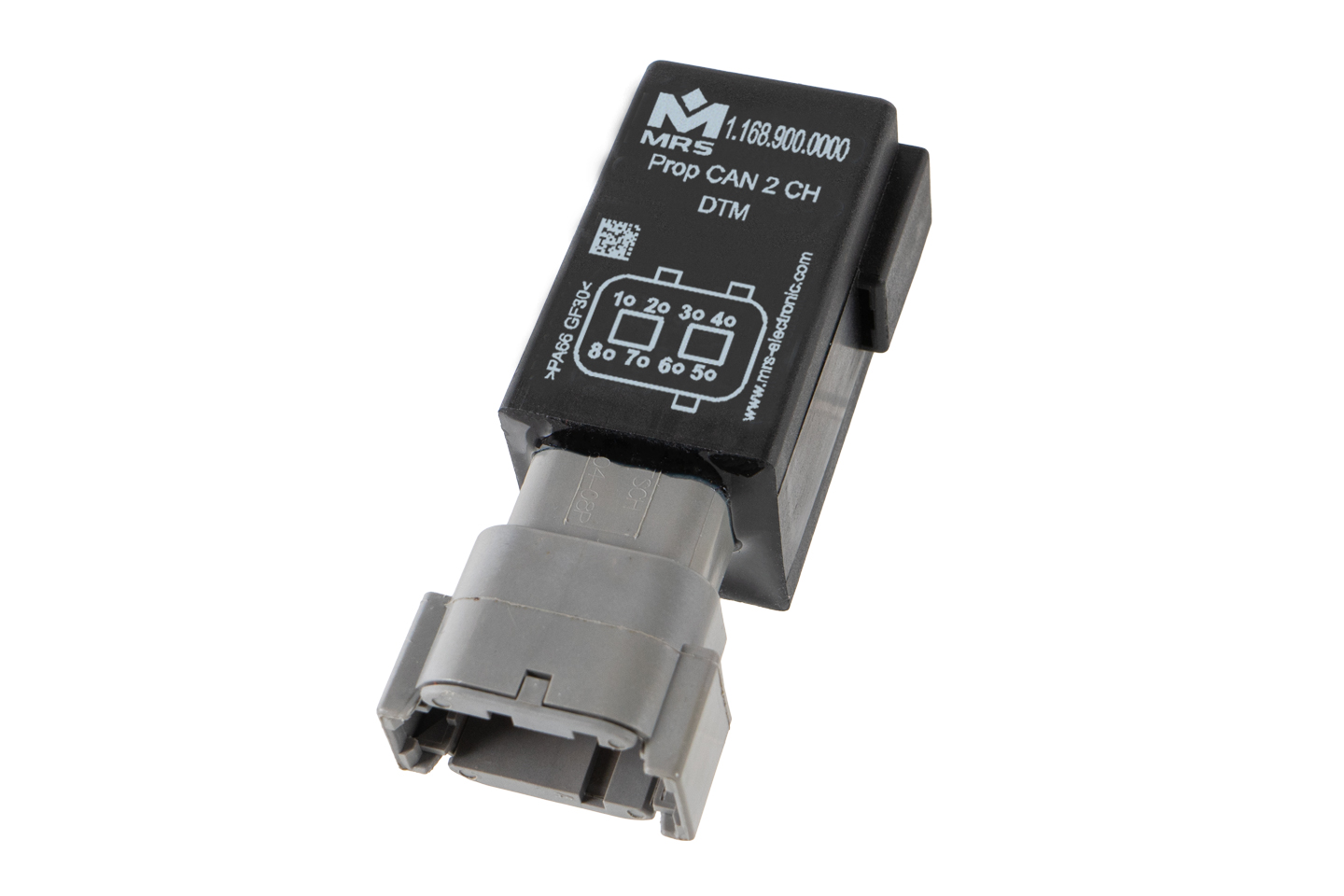

PROP CAN 2CH DTM
go to order options (11689)
The PROP CAN 2CH DTM with CAN bus is used to continuously control two consumers and in particular to control proportional valves. Due to its two outputs, it implements double functionality with the same installation space. In combination with the DEUTSCH DTM connector, it offers you robust quality and is ideally suited for extreme environmental conditions.
PROP CAN 2CH DTM
Technical details
Inputs and Outputs
| Number of pins | 8 |
|---|---|
| In-/Outputs (total) | 3 |
| Inputs (total) | 1 |
| Inputs (analog) | 1 |
| Outputs (total) | 2 |
| Outputs (PWM capable, integrated current measurement INA) | 2 |
| Output type high side | 2 |
| Switching current | 2,7 A |
Interfaces
| CAN interface(s) | 1 |
|---|
Mechanical Properties
| IP rating | IP6K8 |
|---|
Programming
| Programming software | MRS Developers Studio |
|---|
General Information
| Temperature range | -40 °C to +85 °C |
|---|---|
| Operating voltage | 7-32 V |
| Current consumption | 30 mA |
| Quiescent current (12V) | 30 µA |
| Quiescent current (24V) | 80 µA |
Markings
Order options
| Order no. | Name |
|---|---|
| 1.168.900.0000 (11689000000) |
Standard version with DEUTSCH DT connector
|
